Запчасти Case IH 7200 (8-64) - HYDRAULIC CYLINDER - WITH FRONT AND REAR PORTS, 2-1/2 ID X 8 (08) - HYDRAULICS

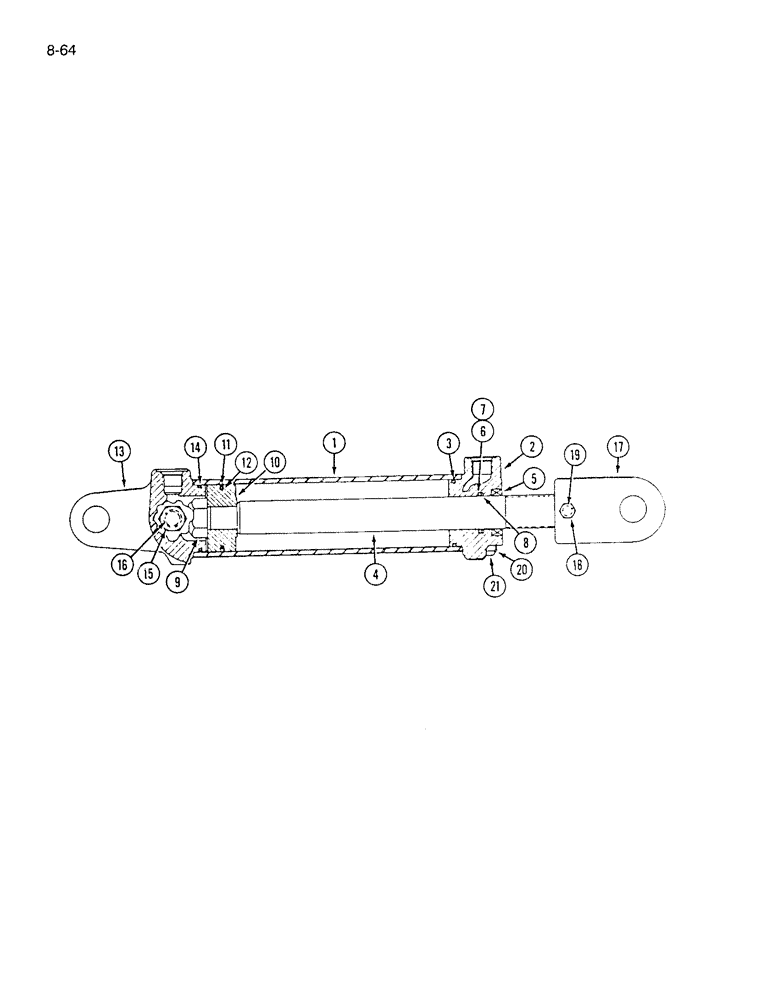

Схема запчастей Case IH 7200 - (8-64) - HYDRAULIC CYLINDER - WITH FRONT AND REAR PORTS, 2-1/2 ID X 8 (08) - HYDRAULICS
10
5
11
14
7
9
12
13
15
19
8
3
20
1
17
21
16
4
2
6
16

Артикул

Название

Примечание

Количество

145209C92

CYLINDER

ASSEMBLY - 2-1/2 ID x 8 inch stroke

1шт.

1

145219C1

SLEEVE

TUBE - cylinder

1шт.

2

1272767C1

CYLINDER END CAP

GLAND - cylinder (Replaces 145220C1 and 1260876C1)

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland, 2-1/4 ID x 2-1/2 inch OD

1шт.

Part of seal kit P/N 79975C2.

1шт.

Part of seal kit P/N 145572C1.

1шт.

4

145231C1

PISTON ROD

ROD - piston

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 79975C2.

1шт.

Part of seal kit P/N 145572C1.

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston rod (Use with 1260876C1 and 1272767C1 glands, Ref. 2)

1шт.

Part of seal kit P/N 79975C2.

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - piston rod, 1-1/4 ID x 1-1/2 inch OD (Use with 145220C1 gland, Ref. 2)

1шт.

Part of seal kit P/N 145572C1.

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup, piston rod o-ring (Use with 145220C1 gland, Ref. 2)

1шт.

Part of seal kit P/N 145572C1.

1шт.

9

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, Grade 8

1шт.

10

145221C3

PISTON

- cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit P/N 79975C2.

1шт.

Part of seal kit P/N 145572C1.

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - backup, piston seal, 2-1/16 ID x 2-1/4 inch OD

1шт.

Part of seal kit P/N 79975C2.

1шт.

Part of seal kit P/N 145572C1.

1шт.

13

1272766C1

HEAD

- cylinder, closed end (Replaces 145218C1)

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - cylinder head, 2-1/4 ID x 2-1/2 inch OD

1шт.

Part of seal kit P/N 79975C2.

1шт.

Part of seal kit P/N 145572C1.

1шт.

15

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of seal kit P/N 79975C2.

1шт.

Part of seal kit P/N 145572C1.

1шт.

17

145233C1

CLEVIS,1/4" - 12

- rod end

1шт.

18

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

19

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

20

145249C1

BOLT,7/16" - 14 x 324mm

- tie, cylinder

4шт.

21

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

79975C2

SEAL KIT

KIT - seal, use with 1260876C1 and 1272767C1 glands, Includes: Ref. 3, 5, 6, 11, 12, 14, 16 and (2) backup rings not used with this cylinder

1шт.

145572C1

KIT

- seal, use with 145220C1 gland, Includes: Ref. 3, 5, 7, 8, 11, 12, 14 and 16

1шт.
