Запчасти Case IH 7200 (8-56) - HYDRAULIC CYLINDER - WITH FRONT AND REAR PORTS, 2-1/2 ID X 8 INCH STROKE - VICTOR (08) - HYDRAULICS

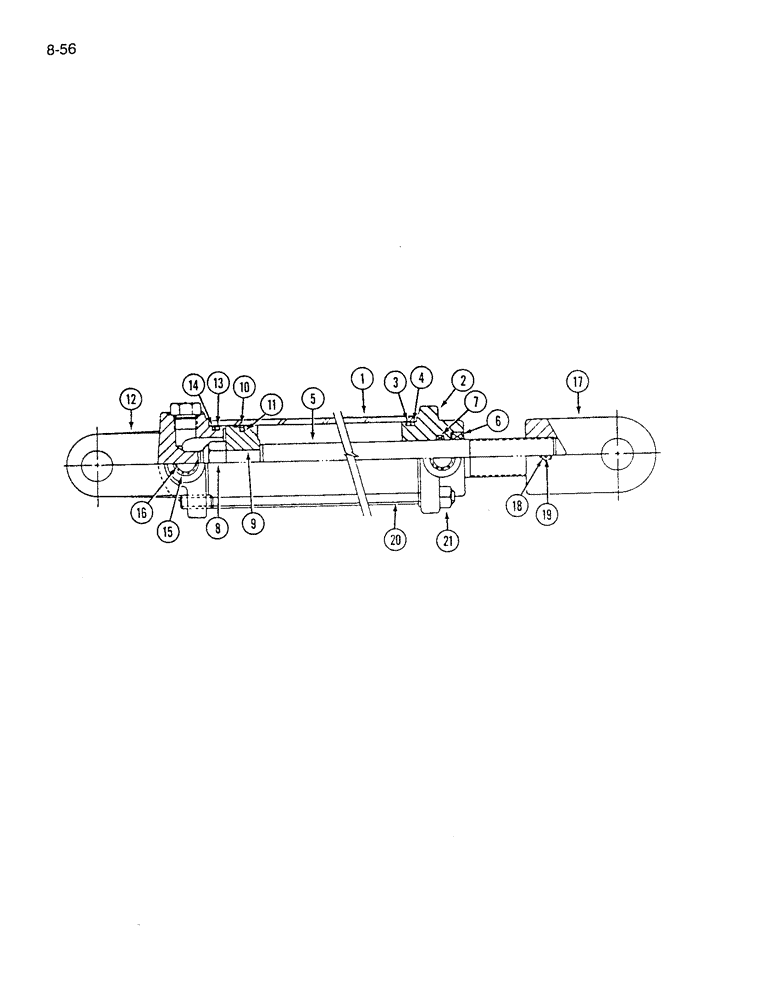

Схема запчастей Case IH 7200 - (8-56) - HYDRAULIC CYLINDER - WITH FRONT AND REAR PORTS, 2-1/2 ID X 8 INCH STROKE - VICTOR (08) - HYDRAULICS
13
18
3
12
1
21
8
15
16
2
4
11
14
20
7
9
17
6
10
5
19

Артикул

Название

Примечание

Количество

1272402C91

CYLINDER,Double Acting, 31.7mm Rod, 203.2mm Stroke

ASSEMBLY - 2-1/2 ID x 8 inch stroke (Replaces 844025C92, 843125C91 and 1286321C91 cylinder assembly)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1272767C1

CYLINDER END CAP

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland, 2-1/4 ID x 2-1/2 inch OD

1шт.

Part of seal kit P/N 79975C2.

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 79975C2.

1шт.

5

145231C1

PISTON ROD

ROD - piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 79975C2.

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 79975C2.

1шт.

8

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, Grade 8

1шт.

9

145221C3

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit P/N 79975C2.

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - backup, piston seal, 2-1/16 ID x 2-1/4 inch OD

1шт.

Part of seal kit P/N 79975C2.

1шт.

12

1272766C1

HEAD

- cylinder, closed end (Replaces 145218C1)

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - cylinder head, 2-1/4 ID x 2-1/2 inch OD

1шт.

Part of seal kit P/N 79975C2.

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of seal kit P/N 79975C2.

1шт.

15

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

Part of seal kit P/N 79975C2.

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of seal kit P/N 79975C2.

1шт.

17

145233C1

CLEVIS,1/4" - 12

- rod end

1шт.

18

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

1шт.

19

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

20

1272747C1

TIE-ROD,7/16" - 14 x 12.25mm

BOLT - tie, cylinder, 7/16 inch NC

4шт.

21

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

79975C2

SEAL KIT

KIT - seal, Includes: Ref. 3, 4, 6, 7, 10, 11 and 13 - 16

1шт.
