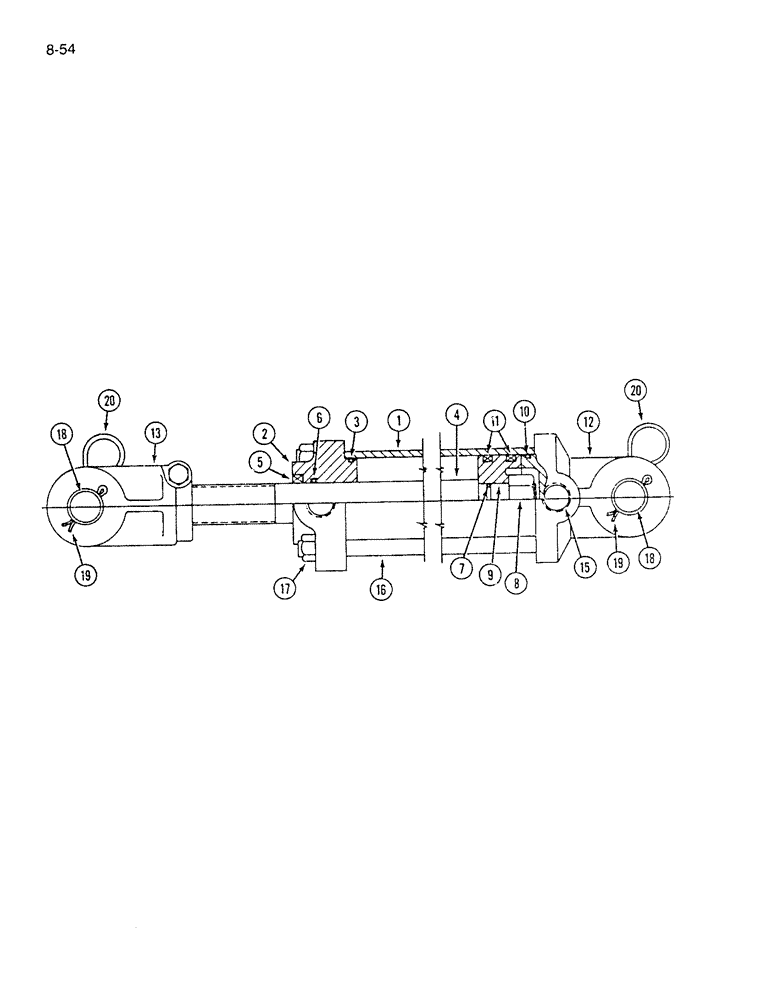

Запчасти Case IH 7200 (8-54) - HYDRAULIC CYLINDER - WITH FRONT AND REAR PORTS, 2-1/2 ID X 8 INCH STROKE - MONARCH (08) - HYDRAULICS

844025C92

CYLINDER

ASSEMBLY - 2-1/2 ID x 8 inch stroke (No longer available, order 1272402C91 cylinder assembly, page 8-57)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

844031C1

CAP

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of seal kit P/N 844042C91.

1шт.

4

844036C1

ROD

- piston

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 844042C91.

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 844042C91.

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - piston rod, nut end

1шт.

8

425-1114

NUT,7/8"-14, G5

- hex, 7/8 inch NF

1шт.

9

844033C1

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal kit P/N 844042C91.

1шт.

11

NSS

NOT SOLD SEPARAT

PACKING - piston

2шт.

Part of seal kit P/N 844042C91.

1шт.

12

844030C1

CAP

HEAD - cylinder, closed end

1шт.

13

844032C1

CLEVIS

- rod end

1шт.

27935R1

12 PT SCREW,Flg, 3/8"-16 x 1 3/4"

SCREW - clevis (Not shown)

1шт.

15

425-106

NUT,3/8"-16, Cl 5

1шт.

16

844038C1

ROD

- tie, cylinder, 1/2 inch NC

4шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

18

844035C1

PIN

- clevis and head

2шт.

19

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

20

486830R1

COTTER PIN

PIN - cotter, quick attachable

2шт.

844042C91

PACKAGE

KIT - seal, Includes: Ref. 3, 5 - 7, 10 and 11

1шт.
