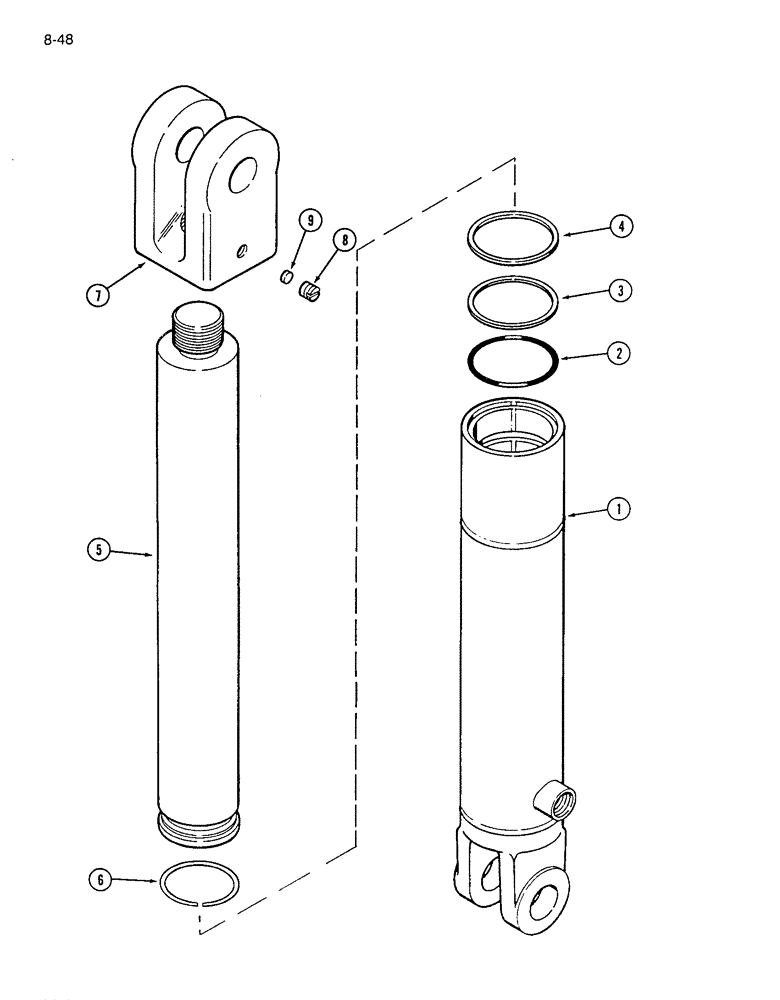

Запчасти Case IH 7200 (8-48) - HYDRAULIC CYLINDER - WITH SINGLE PORT, 2 ROD DIAMETER X 8 INCH STROKE - IH (08) - HYDRAULICS

1345980C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 2 rod dia x 8 inch stroke (Alternative to 145622C91 cylinder assembly, page 8-47)

1шт.

1

145621C1

HYD TUBE

TUBE ASSEMBLY - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - 2 ID x 2-3/8 inch OD, cylinder rod

1шт.

Part of seal kit P/N 145682C1.

1шт.

3

NSS

NOT SOLD SEPARAT

RING - backup, cylinder rod O-ring

1шт.

Part of seal kit P/N 145682C1.

1шт.

4

NSS

NOT SOLD SEPARAT

WIPER - cylinder rod

1шт.

Part of seal kit P/N 145682C1.

1шт.

5

1343689C1

PISTON ROD

ROD - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of seal kit P/N 145682C1.

1шт.

7

145233C1

CLEVIS,1/4" - 12

- cylinder rod

1шт.

8

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, headless slotted, 3/8 NC x 3/8 inch

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - rod clevis

1шт.

145682C1

SEALING RING

KIT - seal, Includes: Ref. 2 - 4 and 6

1шт.
