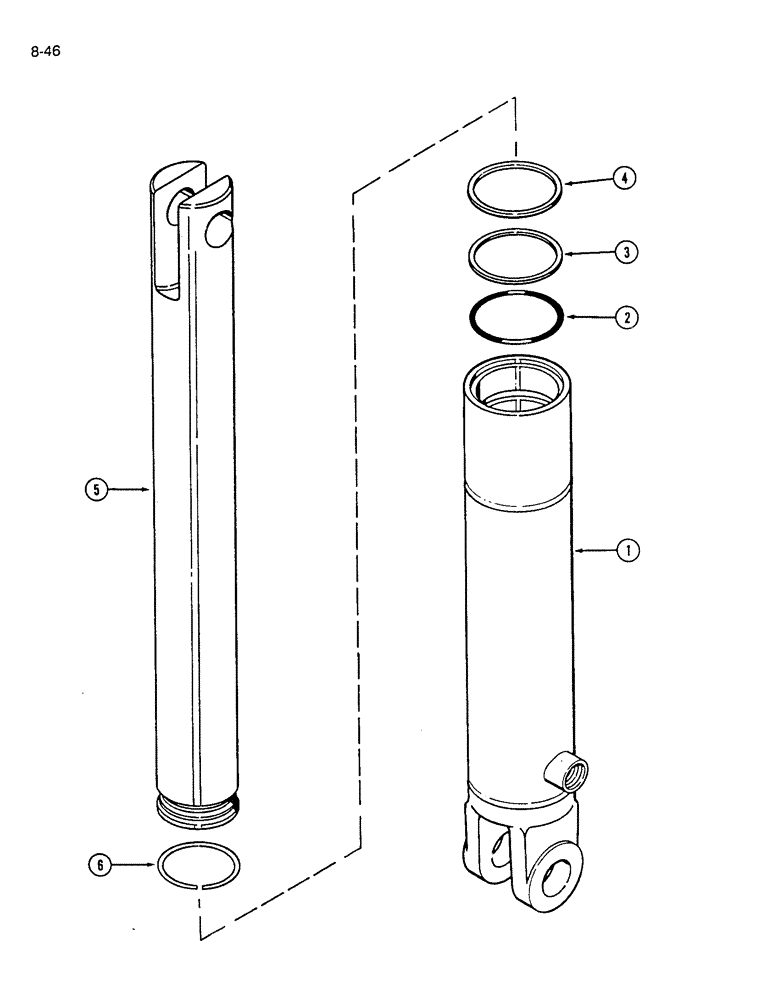

Запчасти Case IH 7200 (8-46) - HYDRAULIC CYLINDER - WITH SINGLE PORT, 2 ROD DIAMETER X 8 INCH STROKE - IH (08) - HYDRAULICS

145622C91

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 204.7mm Stroke

CYLINDER ASSEMBLY - 2 rod dia x 8 inch stroke (Alternative to 1345980C1 cylinder assembly, page 8-49)

1шт.

1

145621C1

HYD TUBE

TUBE ASSEMBLY - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - 2 ID x 2-3/8 inch OD, cylinder rod

1шт.

Part of seal kit P/N 145682C1.

1шт.

3

NSS

NOT SOLD SEPARAT

RING - backup, cylinder rod O-ring

1шт.

Part of seal kit P/N 145682C1.

1шт.

4

NSS

NOT SOLD SEPARAT

WIPER - cylinder rod

1шт.

Part of seal kit P/N 145682C1.

1шт.

5

149611C1

PISTON ROD

ROD - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

145682C1

SEALING RING

KIT - seal, Includes: Ref. 2 - 4

1шт.
