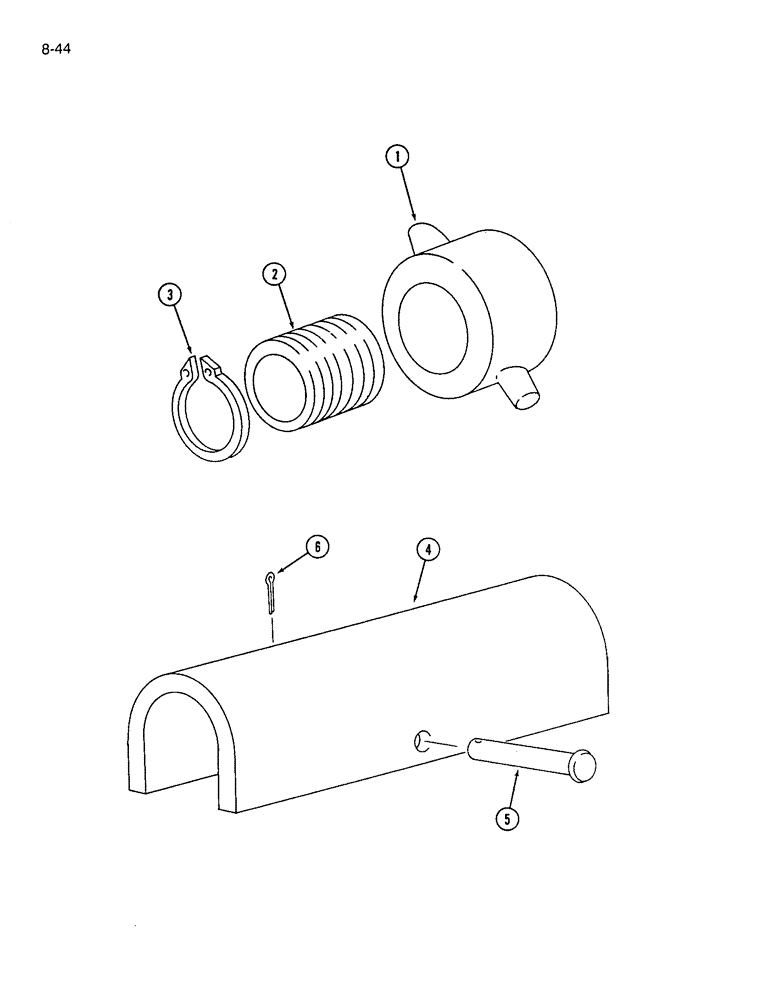

Запчасти Case IH 7200 (8-44) - STROKE CONTROL COLLAR AND HYDRAULIC CYLINDER STOP, STROKE (08) - HYDRAULICS

844098C91

COLLAR

ASSEMBLY - stroke control (Use with 844025C92 cylinder assembly, see page 8-55)

1шт.

1

NSS

NOT SOLD SEPARAT

COLLAR - stroke control (Order 844098C91 collar assembly)

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - stroke control collar (Order 844098C91 collar assembly)

1шт.

3

844041C1

RETAINER

- stroke control sleeve

1шт.

4

1546971C1

CHANNEL

STOP - cylinder assembly (Use with 1272145C91 cylinder assembly, see page 8-59)(replaces 1268367C2)

1шт.

5

21992R1

HEADED PIN,5/16" x 2 3/4"

PIN - headed, for new channel, 1/4 x 3-3/8 inch (replaces 479749R1)

1шт.

6

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - cotter, quick attachable

1шт.
