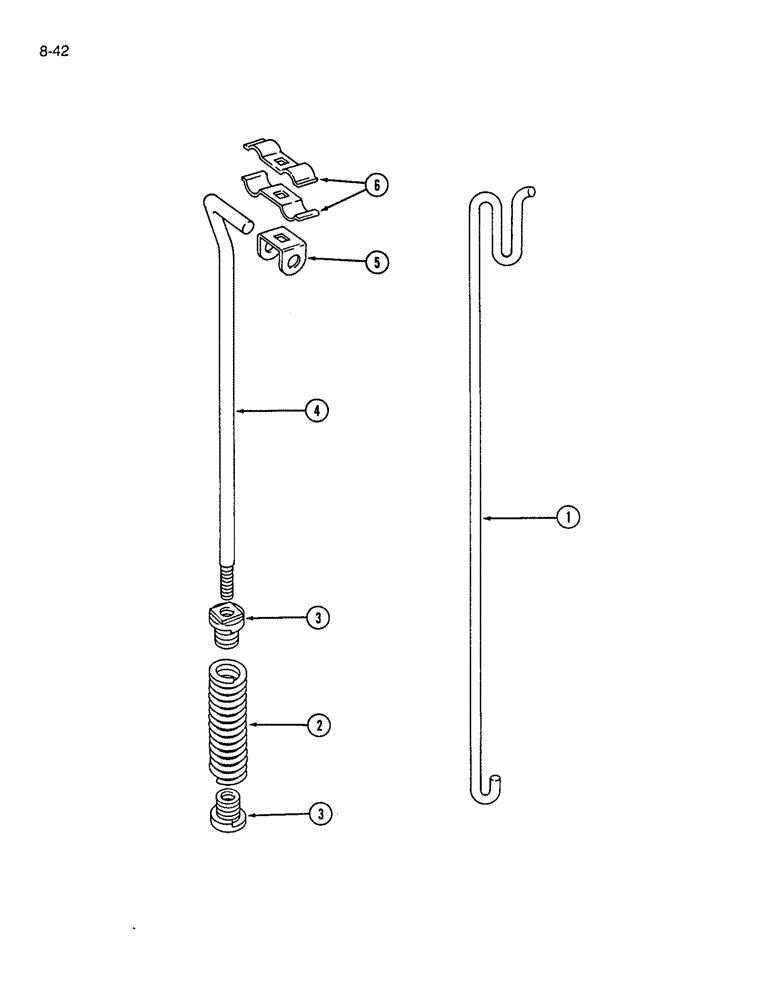

Запчасти Case IH 7200 (8-42) - HYDRAULIC HOSE SUPPORT (08) - HYDRAULICS

1

651793R2

SUPPORT

ROD - hose support (Replaces items 2, 3, 4, 5 and 6)

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

2

515031R11

SPRING

ASSEMBLY - hose support (No longer available, order 651793R2 hose support rod, item 1)

1шт.

3

SA1378A

PLUG

- spring

2шт.

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

515028R1

ROD

- hydraulic hose support

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

5

515029R1

BRACKET

- hose clamp

2шт.

6

515030R1

CLAMP

- hose

4шт.

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 1-3/4 inch

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

126032

WING NUT,3/8"-16

NUT - wing, 3/8 inch NC

2шт.
