Запчасти Case IH 7200 (8-40) - HYDRAULIC SYSTEM - DISK MARKER, HYDRAULIC SELECTOR, LEFT (08) - HYDRAULICS

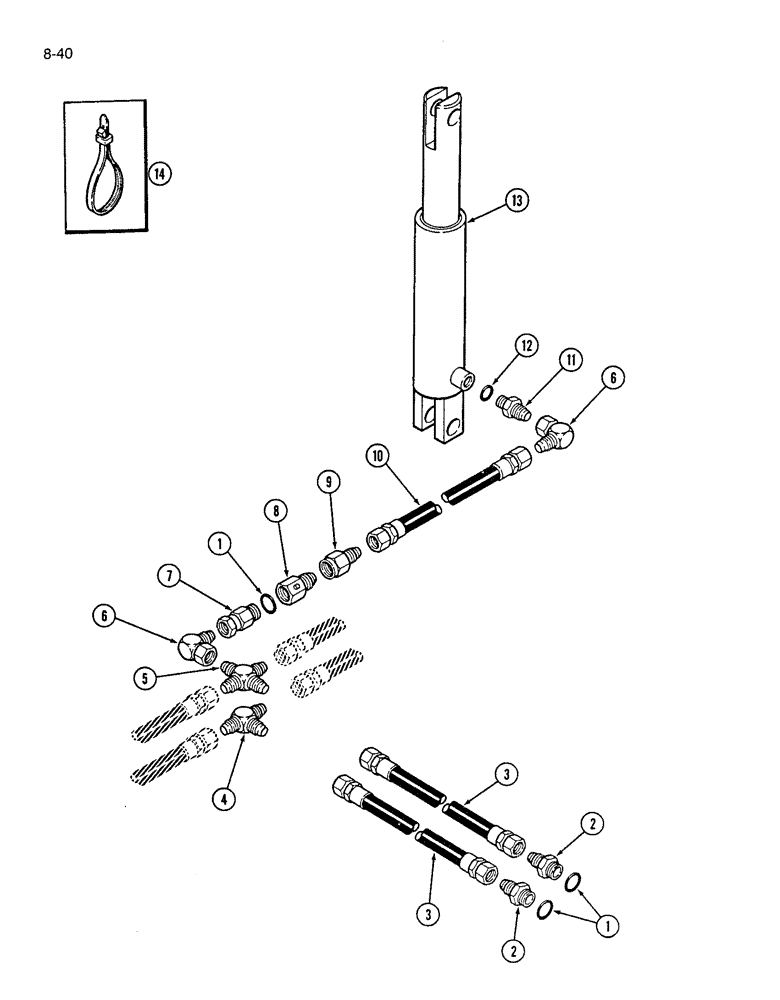

Схема запчастей Case IH 7200 - (8-40) - HYDRAULIC SYSTEM - DISK MARKER, HYDRAULIC SELECTOR, LEFT (08) - HYDRAULICS
12
13
10
2
1
4
8
3
1
5
7
9
6
3
11
6
2
14

Артикул

Название

Примечание

Количество

1

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

3шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

819992C1

HOSE

- hydraulic, 3/8 x 128 inch

2шт.

4

9402982

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flare

1шт.

5

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

CROSS - 3/4-16 inch flare

1шт.

6

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x 9/16-18 inch o-ring boss

2шт.

7

1263944C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 JIC

ADAPTER - straight, special

1шт.

8

1279860C91

RESTRICTOR

VALVE ASSEMBLY - restrictor

1шт.

9

1284308C1

REDUCER

- tube

1шт.

10

1279597C1

HOSE

- hydraulic, 3/8 x 210 inch

1шт.

11

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - short, 3/4-16 inch flare x 9/16 inch flare

1шт.

13

REF

INSTRUCTION

CYLINDER ASSEMBLY - IH, 2 rod dia x 8 inch, 9/16-18 inch single port (See page 8-47 or 8-49)

1шт.

14

813579C1

CABLE TIE

STRAP - tie, nylon

4шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 14
