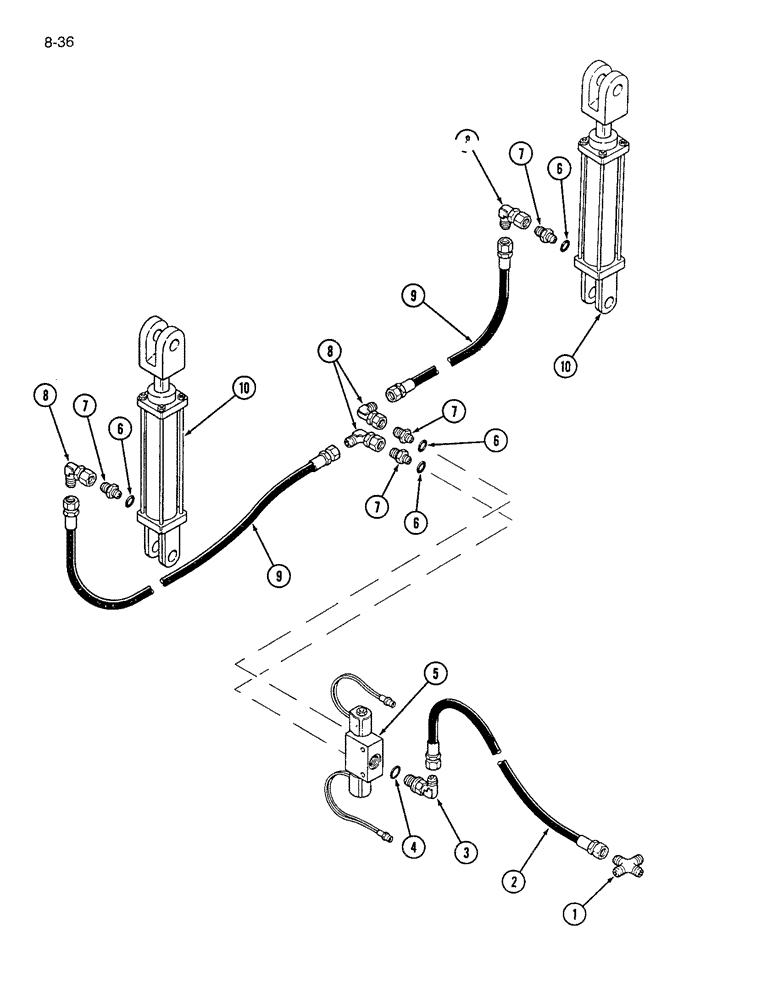

Запчасти Case IH 7200 (8-36) - HYDRAULIC SYSTEM - DISK MARKER, ELECTRONIC SELECTOR (08) - HYDRAULICS

1

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

CROSS - 3/4-16 inch flare

1шт.

2

104792C1

HOSE,9.53mm ID x 431.8mm L, SAE 100R1

- hydraulic, 3/8 x 17 inch

1шт.

3

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj o-ring

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - marker control (See page 4-9)

1шт.

7

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch o-ring boss

4шт.

8

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

4шт.

9

1279597C1

HOSE

- hydraulic, 3/8 x 210 inch

2шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY - IH, 2 rod dia x 8 inch, 9/16-18 inch single port (See page 8-47 or 8-49)

2шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.
