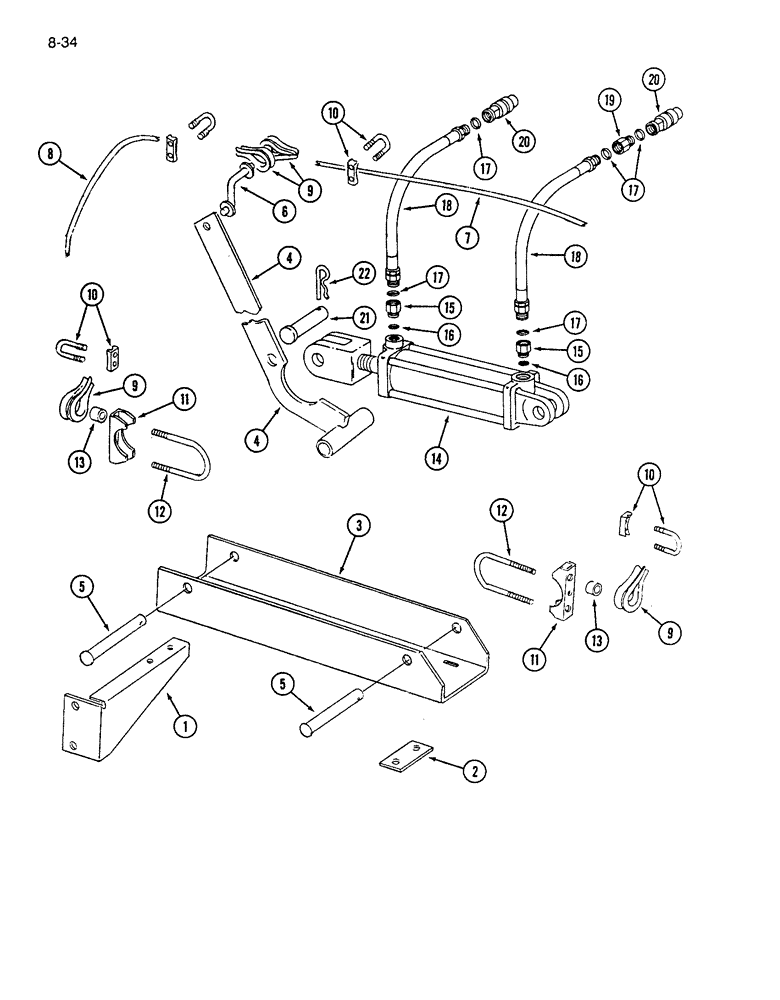

Запчасти Case IH 7200 (8-34) - HYDRAULIC SYSTEM - DISK MARKER, CABLE CONTROLLED (08) - HYDRAULICS

1

818310C1

BRACKET

- cylinder channel support

1шт.

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, Grade 8

2шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

2шт.

2

819042C1

BAR

- cylinder channel clamping

1шт.

495-81132

WASHER,0.41" ID x 0.88" OD x 0.18" Thk

2шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

3

818311C1

CHANNEL

- cylinder

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

4

818314C1

ARM

ASSEMBLY - cable crank

1шт.

5

651029R1

HEADED PIN,1" x 6 5/8"

PIN - headed, 1 x 6-5/8 inch

2шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

2шт.

1978739C1

PIN

- cotter, quick attachable

2шт.

6

819969C1

ROD

ASSEMBLY - cable crank

1шт.

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

7

819052C2

CABLE

- 25 foot marker lift

1шт.

8

819053C1

CABLE

- 18 foot marker lift

1шт.

9

819054C1

EYE

THIMBLE - cable, 3/16 inch

4шт.

10

819055C1

CLAMP

- cable, 3/16 inch

8шт.

11

549902C91

CLAMP

SADDLE - marker tube clamp

2шт.

12

596521R2

BOLT,U, 5/16" - 24 x 3 3/4"

U-BOLT - marker disc tube

2шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

4шт.

13

86224H

SPACER,1/4" Pipe x 3/8"

Cable thimble 1/4" Pipe x 3/8"

4шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - IH, 2-1/2 x 8 inch, 3/4-16 inch front and rear ports (See page 8-59 or 8-65)

1шт.

15

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - 3/4-16 male x 7/8-14 inch female o-ring boss

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

5шт.

18

486946R1

HOSE

- hydraulic, 1/2 x 230 inch

2шт.

19

484723R1

LOCK VALVE

VALVE ASSEMBLY - restrictor

1шт.

20

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread poppet type

2шт.

20

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type

2шт.

20

1272399C2

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread self sealing type (ISO standard)

2шт.

21

64560C1

HEADED PIN

PIN - headed, 1 x 3 inch

1шт.

22

520175R1

CLIP

PIN - cotter, quick attachable

1шт.
