Запчасти Case IH 7200 (8-30) - HYDRAULIC SYSTEM - ENDWISE TRANSPORT, LEADING UNIT, MACHINES (08) - HYDRAULICS

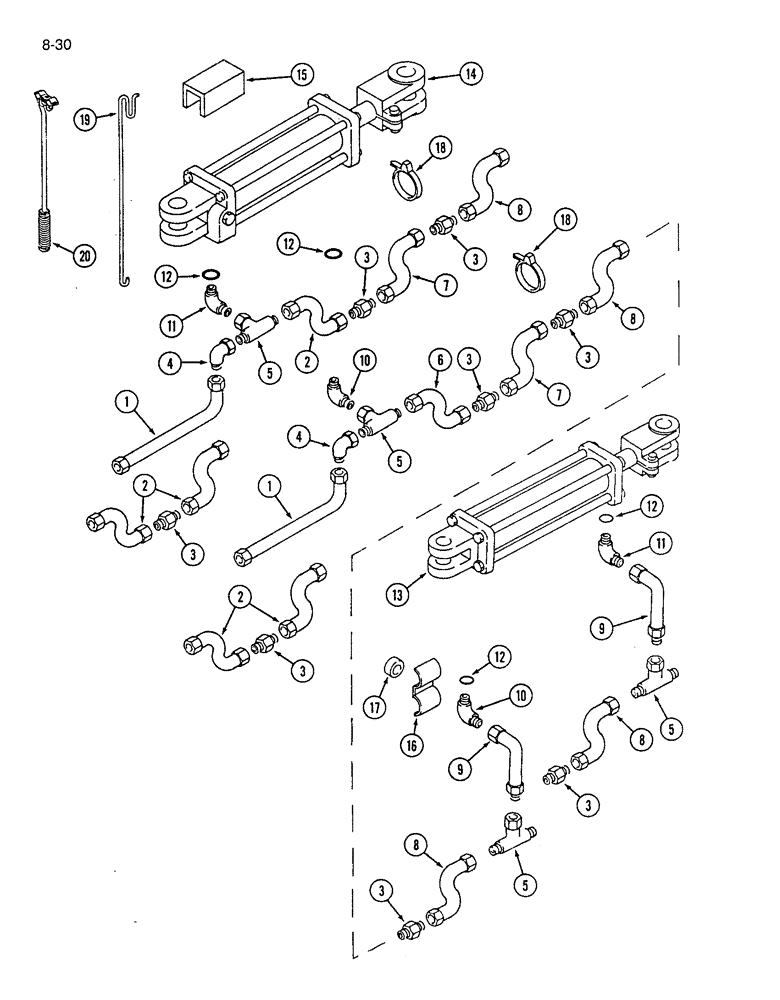

Схема запчастей Case IH 7200 - (8-30) - HYDRAULIC SYSTEM - ENDWISE TRANSPORT, LEADING UNIT, MACHINES (08) - HYDRAULICS
5
5
4
2
5
11
12
2
19
7
7
18
5
17
18
8
6
20
10
9
3
1
15
2
11
12
3
14
3
12
12
4
1
9
10
13
8
16
6
8
3
3
3
3
3

Артикул

Название

Примечание

Количество

1

HOSE - hydraulic, 3/8 x 162 inch (Order (2) 1310502C1 hose, item 2 and (1) 9402787 adapter, item 3 )

2шт.

2

1310502C1

HOSE

- hydraulic, 3/8 x 82 inch (Replaces 675984R91 hose, 80 inch and 843153C1 hose, 79 inch)

1шт.

3

218-434

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male JIC

ADAPTER - straight, 3/4-16 inch flare

1шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

2шт.

5

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- 3/4-16 inch swivel straight thread branch x flare

4шт.

6

179411C1

HOSE

- hydraulic, 3/8 x 61 inch (Replaces 843152C1 hose, 57 inch)

1шт.

7

66875C1

HOSE ASSY.

HOSE - hydraulic, 3/8 x 36 inch (Replaces 843155C1 hose, 33 inch)

2шт.

8

818290C1

HOSE

- hydraulic, 3/8 x 12 inch (See Note A)

1шт.

9

819872C1

TUBE,0.5" OD, 5" Length

ASSEMBLY - pressure and return

2шт.

10

1277964C1

ELBOW

- flow restrictor

2шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj o-ring boss

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

13

REF

INSTRUCTION

CYLINDER ASSEMBLY - Victor, 2-1/2 x 8 inch, 3/4-16 inch front and rear ports (See page 8-57)

1шт.

22064R1

PIN

- headed, 1 x 4-1/2 inch

1шт.

32-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

1шт.

21162R1

WASHER

- flat, 1-1/32 x 2 x 3/64 inch

1шт.

13

REF

INSTRUCTION

CYLINDER ASSEMBLY - Ram, 2-1/2 x 8 inch, 3/4-16 inch front and rear ports (See page 8-63)

1шт.

22064R1

PIN

- headed, 1 x 4-1/2 inch

1шт.

32-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

1шт.

21162R1

WASHER

- flat, 1-1/32 x 2 x 3/64 inch

1шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - Prince, 4-1/2 x 8 inch, 3/4-16 inch front and rear ports (See page 8-67)

1шт.

15

843137C1

CHANNEL

- hydraulic lockout

1шт.

21992R1

HEADED PIN,5/16" x 2 3/4"

PIN - headed, 5/16 x 2-3/4 inch

1шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - cotter, quick attachable

1шт.

16

379045R1

CLAMP

- hydraulic hose

1шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

17

22055R1

SPACER,1/4" Pipe x .594"

- hose clamp

1шт.

18

813579C1

CABLE TIE

STRAP - tie, nylon

3шт.

19

651793R2

SUPPORT

ROD - hose support

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

21403R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

20

REF

INSTRUCTION

SUPPORT - hydraulic hose, (No longer available, see page 8-43)

1шт.
