Запчасти Case IH 7200 (8-26) - HYDRAULIC SYSTEM - ENDWISE TRANSPORT, 2ND, 3RD, 4TH OR (08) - HYDRAULICS

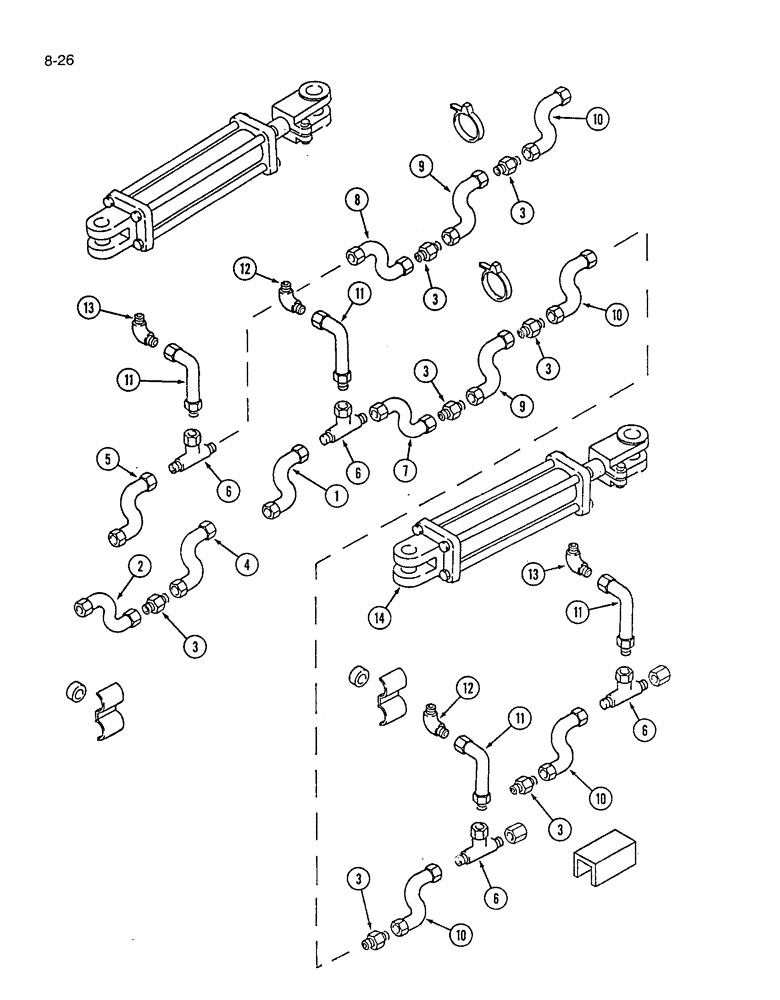

Схема запчастей Case IH 7200 - (8-26) - HYDRAULIC SYSTEM - ENDWISE TRANSPORT, 2ND, 3RD, 4TH OR (08) - HYDRAULICS
10
5
6
10
13
3
4
3
12
10
10
11
7
13
3
2
3
12
11
9
14
11
3
9
6
6
3
6
11
1
8
3

Артикул

Название

Примечание

Количество

1

HOSE - hydraulic, 3/8 x 103 inch (Order (1) 1310502C1 hose, item 2, (1) 218-434 adapter, item 3 and (1) 851789C2 hose, item 4)

1шт.

2

1310502C1

HOSE

- hydraulic, 3/8 x 82 inch (Replaces 675984R91 hose, 80 inch and 843153C1 hose, 79 inch)

1шт.

3

218-434

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male JIC

ADAPTER - straight, 3/4-16 inch flare

1шт.

4

851789C2

HOSE

- hydraulic, 3/8 x 20-1/2 inch

1шт.

5

1140447C1

HOSE ASSY.

HOSE - hydraulic, 3/8 x 75 inch (Replaces 819842C1 hose, 73 inch)

1шт.

6

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- 3/4-16 inch swivel straight thread branch x flare

4шт.

7

66875C1

HOSE ASSY.

HOSE - hydraulic, 3/8 x 36 inch

1шт.

8

179411C1

HOSE

- hydraulic, 3/8 x 61 inch (Replaces 843152C1 hose, 57 inch)

1шт.

9

66875C1

HOSE ASSY.

HOSE - hydraulic, 3/8 x 36 inch (Replaces 843155C1 hose, 33 inch)

2шт.

10

818290C1

HOSE

- hydraulic, 3/8 x 12 inch

1шт.

11

819872C1

TUBE,0.5" OD, 5" Length

ASSEMBLY - pressure and return

4шт.

12

819966C1

ELBOW

- flow restrictor

2шт.

13

556656R1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

- 90 degree

2шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - Monarch, 2-1/2 x 8 inch, 1/2-14 inch front and rear ports (See Note and page 8-55)

1шт.

22064R1

PIN

- headed, 1 x 4-1/2 inch

1шт.

32-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

1шт.

21162R1

WASHER

- flat, 1-1/32 x 2 x 3/64 inch

1шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - Ram, 2-1/2 x 8 inch, 1/2-14 inch front and rear ports (See Note and page 8-61)

1шт.

22064R1

PIN

- headed, 1 x 4-1/2 inch

1шт.

32-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

1шт.

21162R1

WASHER

- flat, 1-1/32 x 2 x 3/64 inch

1шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - Victor, 2-1/2 x 8 inch, 3/4-16 inch front and rear ports (See page 8-57)

1шт.

1260900C1

HYD CONNECTOR,1/2" - 14 x 3/4" - 16 NPT

ADAPTER - 1/2 PT female x 3/4-16 male

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

22064R1

PIN

- headed, 1 x 4-1/2 inch

1шт.

32-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

1шт.

21162R1

WASHER

- flat, 1-1/32 x 2 x 3/64 inch

1шт.

Выбрано товаров: 27
