Запчасти Case IH 7200 (8-16) - HYDRAULIC SYSTEM - LIFT, FOUR DRILL COMBINATION - EARLY (08) - HYDRAULICS

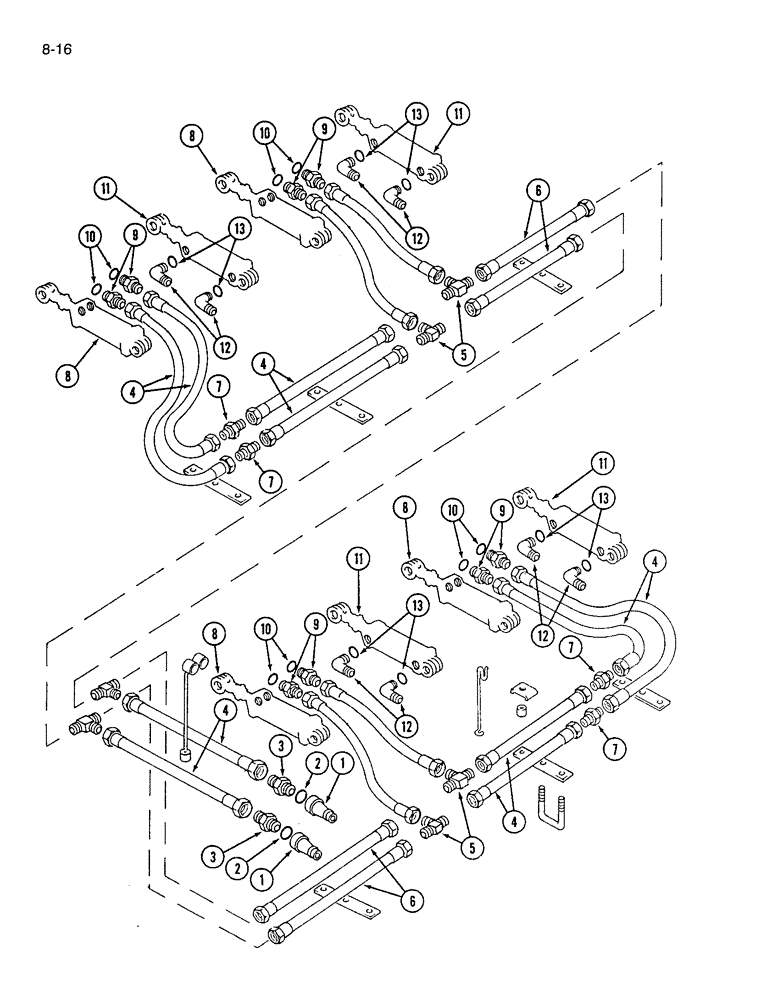

Схема запчастей Case IH 7200 - (8-16) - HYDRAULIC SYSTEM - LIFT, FOUR DRILL COMBINATION - EARLY (08) - HYDRAULICS
13
5
11
13
8
10
2
11
10
7
6
3
5
9
9
6
12
11
8
7
7
4
4
13
11
13
3
9
12
4
10
4
12
9
7
1
12
4
1
8
8
2
10

Артикул

Название

Примечание

Количество

1

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread poppet type

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type

2шт.

1

1272399C2

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread self sealing type (ISO standard)

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

3

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

4

819992C1

HOSE

- hydraulic, 3/8 x 128 inch

10шт.

5

9402982

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flared

6шт.

6

675984R91

HOSE

- hydraulic, 3/8 x 80 inch

8шт.

7

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare

4шт.

8

REF

INSTRUCTION

CYLINDER ASSEMBLY - IH, 2-1/2 x 8 inch, 7/8-14 inch dual rear ports (See page 8-51)

4шт.

64560C1

HEADED PIN

PIN - headed, 1 x 3 inch

4шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

4шт.

520175R1

CLIP

PIN - cotter, quick attachable, 3/16 inch diameter

8шт.

9

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

8шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

6шт.

8

REF

INSTRUCTION

CYLINDER ASSEMBLY - IH, 2-1/2 x 8 inch, 3/4-16 inch dual rear parts (See page 8-53)

4шт.

64560C1

HEADED PIN

PIN - headed, 1 x 3 inch

4шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

4шт.

520175R1

CLIP

PIN - cotter, quick attachable, 3/16 inch diameter

8шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x o-ring boss

8шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

8шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY - Monarch, 2-1/2 x 8 inch, 3/4-16 inch front and rear ports (See Note and page 8-55)

4шт.

64560C1

HEADED PIN

PIN - headed, 1 x 3 inch

4шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

4шт.

520175R1

CLIP

PIN - cotter, quick attachable, 3/16 inch diameter

8шт.

844098C91

COLLAR

ASSEMBLY - stroke control (See page 8-45)

4шт.

12

556656R1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

- 90 degree (Use with Monarch cylinder assembly)

8шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

8шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY - Victor, 2-1/2 x 8 inch, 1/2-14 inch front and rear ports (Replaces Monarch cylinder assembly, see page 8-57)

4шт.

1260900C1

HYD CONNECTOR,1/2" - 14 x 3/4" - 16 NPT

ADAPTER - 1/2 PT female x 3/4-16 male

4шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

64560C1

HEADED PIN

PIN - headed, 1 x 3 inch

4шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

4шт.

520175R1

CLIP

PIN - cotter, quick attachable, 3/16 inch diameter

8шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree (Use with Victor cylinder assembly)

8шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

8шт.
