Запчасти Case IH 7200 (8-12) - HYDRAULIC SYSTEM - LIFT, THREE DRILL COMBINATION - EARLY (08) - HYDRAULICS

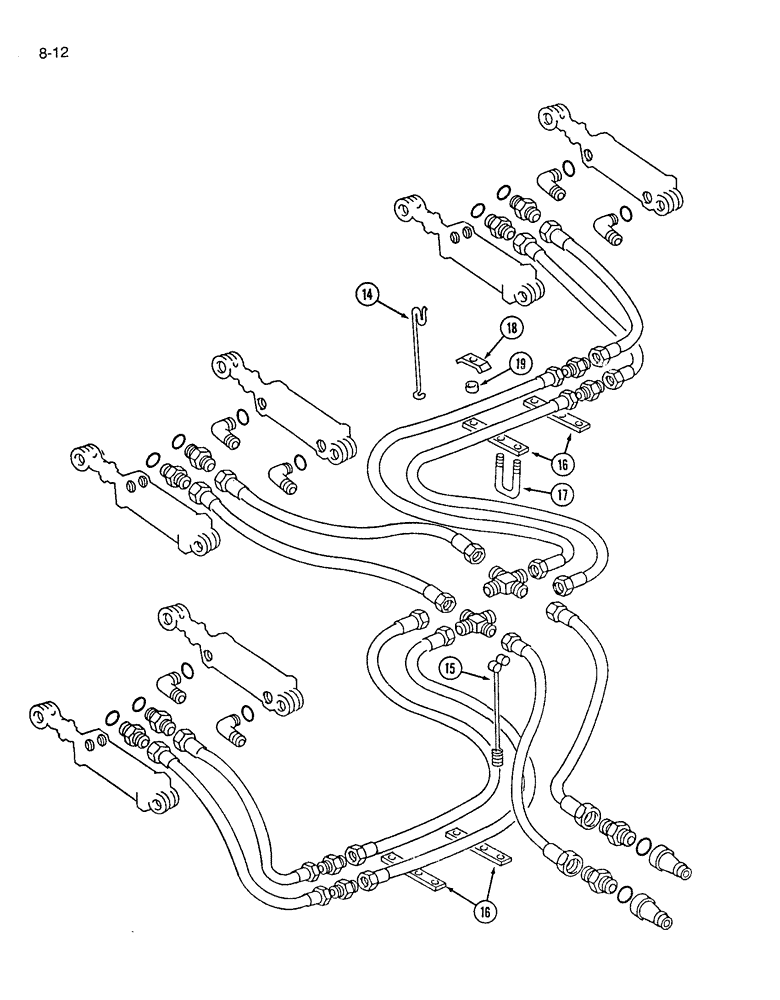

Схема запчастей Case IH 7200 - (8-12) - HYDRAULIC SYSTEM - LIFT, THREE DRILL COMBINATION - EARLY (08) - HYDRAULICS
19
16
18
16
17
14
15

Артикул

Название

Примечание

Количество

14

651793R2

SUPPORT

ROD - hose support (Continued from previous page)

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

15

REF

INSTRUCTION

SUPPORT - hydraulic hose (No longer available, see page 8-43)

1шт.

16

819854C1

BAR

- hose support

4шт.

17

811627C2

U-BOLT

- hose support

4шт.

425-1010

NUT,5/8"-11, G5

8шт.

18

379045R1

CLAMP

- hose

4шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

19

618631R1

SPACER

- hose clamp

4шт.

Выбрано товаров: 14
