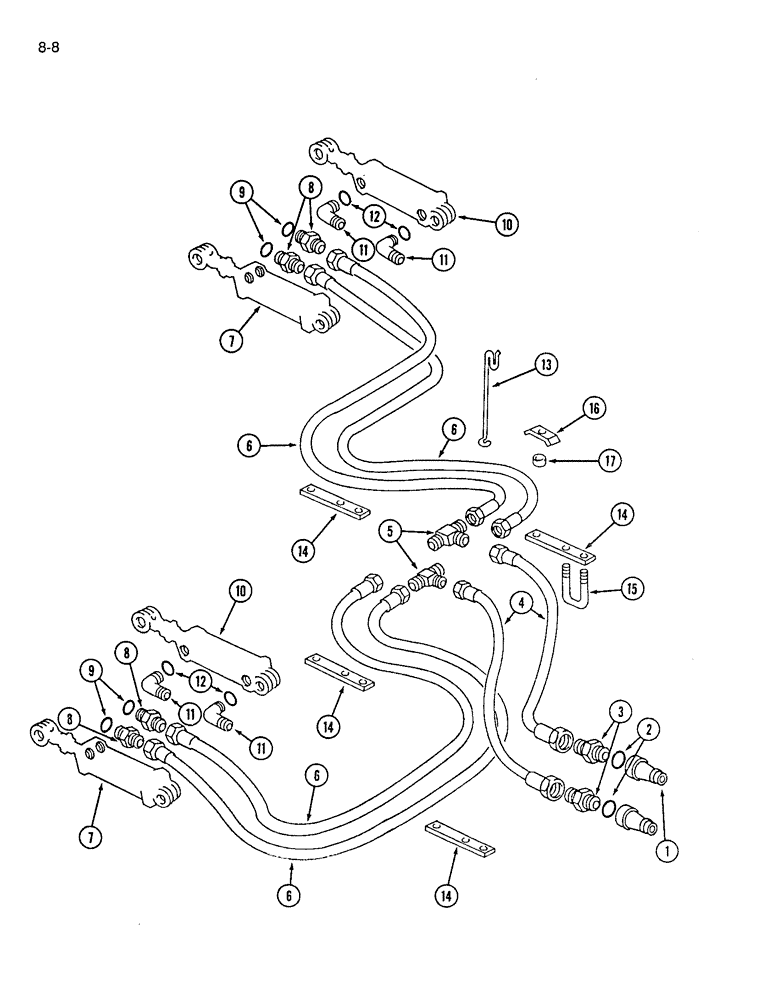

Запчасти Case IH 7200 (8-08) - HYDRAULIC SYSTEM - LIFT, TWO DRILL COMBINATION - LATER (08) - HYDRAULICS

1

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread poppet type

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type

2шт.

1

1272399C2

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread self sealing type (ISO standard)

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch o-ring boss

2шт.

4

1284369C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 130 inch

2шт.

5

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare

2шт.

6

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

HOSE - hydraulic, 3/8 x 175 inch

4шт.

7

REF

INSTRUCTION

CYLINDER ASSEMBLY - IH, 2-1/2 x 8 inch, 3/4-16 inch dual rear ports (See page 8-53)

2шт.

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

2шт.

810751C1

PIN

- headed, 1 x 3 inch

2шт.

1980543C1

HAIR PIN COTTER

PIN - cotter, quick attachable, 5/32 inch diameter

4шт.

8

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY - IH, 2-1/2 x 8 inch, 3/4-16 inch front and rear ports (See page 8-59)

2шт.

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

2шт.

810751C1

PIN

- headed, 1 x 3 inch

2шт.

1980543C1

HAIR PIN COTTER

PIN - cotter, quick attachable, 5/32 inch diameter

4шт.

11

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

4шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

1546971C1

CHANNEL

STOP - cylinder assembly, longer pin for new channel 21992R1 (See page 8-45)(replaces 1268367C2)

1шт.

13

651793R2

SUPPORT

ROD - hose support

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

14

819854C1

BAR

- hose support

4шт.

15

811627C2

U-BOLT

- hose support

4шт.

425-1010

NUT,5/8"-11, G5

8шт.

16

379045R1

CLAMP

- hose

4шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

17

618631R1

SPACER

- hose clamp

4шт.
