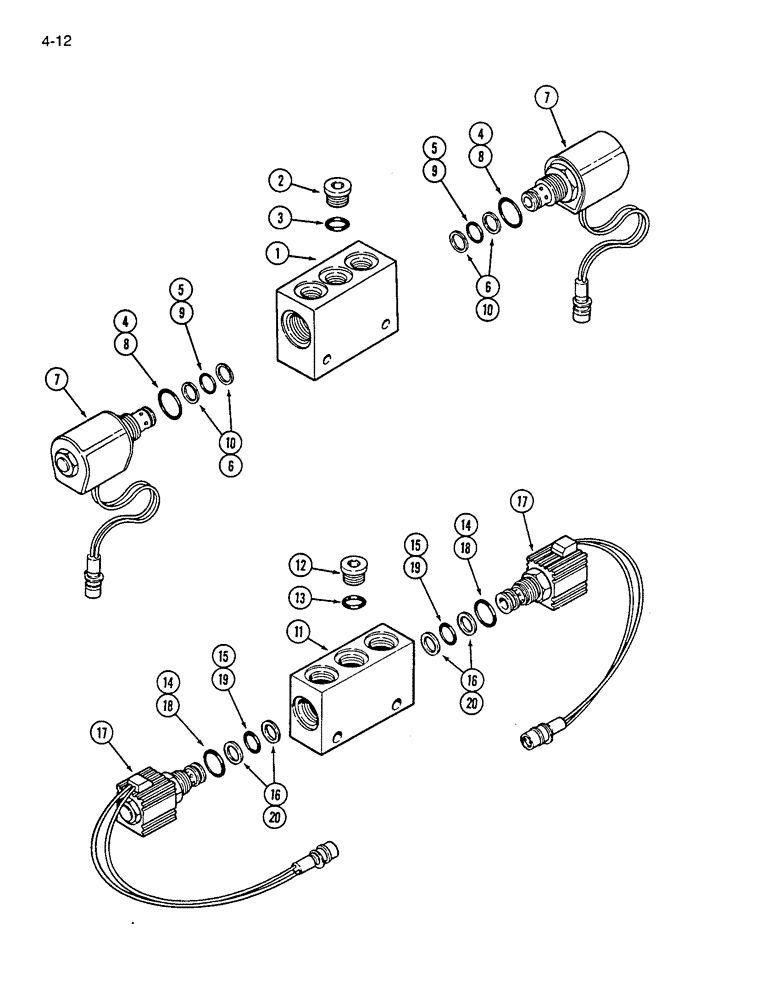

Запчасти Case IH 7200 (4-12) - ROW MARKER VALVE (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
149988C92
VALVE
ASSEMBLY - Modular Controls, row marker
1шт.
1
145317C2
VALVE BODY
BODY ASSEMBLY - valve
1шт.
2
NSS
NOT SOLD SEPARAT
PLUG - 9/16-18 inch o-ring boss
1шт.
145316C1
REPAIR KIT
KIT - seal, valve assembly
1шт.
3
NSS
NOT SOLD SEPARAT
O-RING - plug
1шт.
4
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
2шт.
5
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
2шт.
6
NSS
NOT SOLD SEPARAT
WASHER - backup
4шт.
7
149989C91
VALVE
ASSEMBLY - solenoid
2шт.
1272308C1
SEAL KIT
KIT - seal, solenoid valve
1шт.
8
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
1шт.
9
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
1шт.
10
NSS
NOT SOLD SEPARAT
WASHER - backup
2шт.
1272632C91
VALVE
ASSEMBLY - Waterman, row marker (Order 149988C92 valve assembly)
1шт.
11
1272827C1
VALVE BODY
BODY ASSEMBLY - valve
1шт.
12
NSS
NOT SOLD SEPARAT
PLUG - valve body
1шт.
1272828C1
SEAL KIT
KIT - seal, valve assembly
1шт.
13
NSS
NOT SOLD SEPARAT
O-RING - plug
1шт.
14
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
2шт.
15
NSS
NOT SOLD SEPARAT
O-ring - solenoid valve
2шт.
16
NSS
NOT SOLD SEPARAT
WASHER - backup
4шт.
17
1272830C91
SOLENOID VALVE
VALVE ASSEMBLY - solenoid (Order 149988C92 valve assembly)
2шт.
18
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve (Order 1272828C1 seal kit)
1шт.
19
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve (Order 1272828C1 seal kit)
1шт.
20
NSS
NOT SOLD SEPARAT
WASHER - backup (Order 1272828C1)
2шт.
Выбрано товаров: 25
