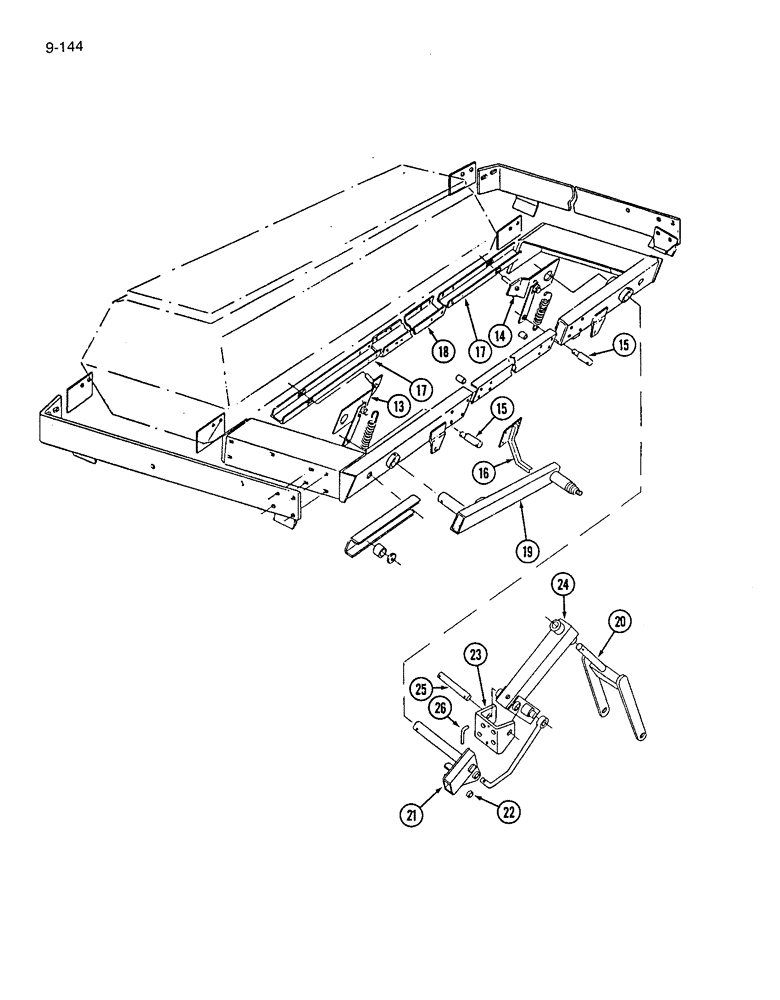

Запчасти Case IH 7200 (9-144) - FRAME AND CONNECTIONS - ENDWISE TRANSPORT, FOURTH OR (09) - CHASSIS/ATTACHMENTS

13

819865C1

LEVER

ASSEMBLY - leveling, left (Continued from previous page)

1шт.

14

819869C1

LEVER

ASSEMBLY - leveling, right

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

4шт.

432-1216

COTTER PIN,3/16" x 1"

4шт.

15

819867C2

PIN

- leveling spring anchor

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

16

841021C1

SUPPORT

ASSEMBLY - transport wheel lockout, left

1шт.

17

817767C2

CHANNEL

- leveling

2шт.

18

818272C1

CHANNEL

- connecting

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

12шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

19

817793C91

AXLE

ASSEMBLY - transport wheel, left (See page 9-147)

1шт.

20

817772C2

SUPPORT

ASSEMBLY - caster wheel

1шт.

462997R1

WASHER

- wear (On support pin)

1шт.

432-2448

COTTER PIN,3/8" x 3"

Pin, Split (Cotter), 3/8" x 3"

1шт.

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

- flat, 1-25/32 x 2-1/2 x 3/64 inch

1шт.

21

817705C2

PIVOT

ASSEMBLY - caster wheel

1шт.

495-81243

WASHER,2 5/16" x 3" x .120"

- flat, 2-5/16 x 3 x 7/64 inch

1шт.

19356R1

PIN,3/8" x 3", Coiled

1шт.

22

608310R1

BUSHING,32.38mm ID x 50.8mm OD x 25.4mm L

- caster wheel pivot (Part of 817705C2 pivot assembly)

1шт.

23

817709C1

CHANNEL

- caster wheel support

1шт.

426-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

- hex, 5/8 NC x 3 inch, Grade 8

4шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

429-1010

NUT,5/8"-11, G8

4шт.

24

817764C1

SUPPORT

ASSEMBLY - caster wheel

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, self-tap, 1/4 NF x 1/2 inch

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

495-81088

WASHER,1.66" ID x 2.25" OD x 0.06" Thk

- flat, 1-21/32 x 2-1/4 x 3/64 inch

2шт.

25

817710C1

PIN

- caster wheel pivot

1шт.

617978R1

PIN,3/8" x 2 1/2", Coiled

1шт.

495-81222

WASHER,1 17/32" x 2 1/4" x .120"

- flat, 1-17/32 x 2-1/4 x 3/32 inch

1шт.

26

813175C1

PIN

- lock

1шт.
