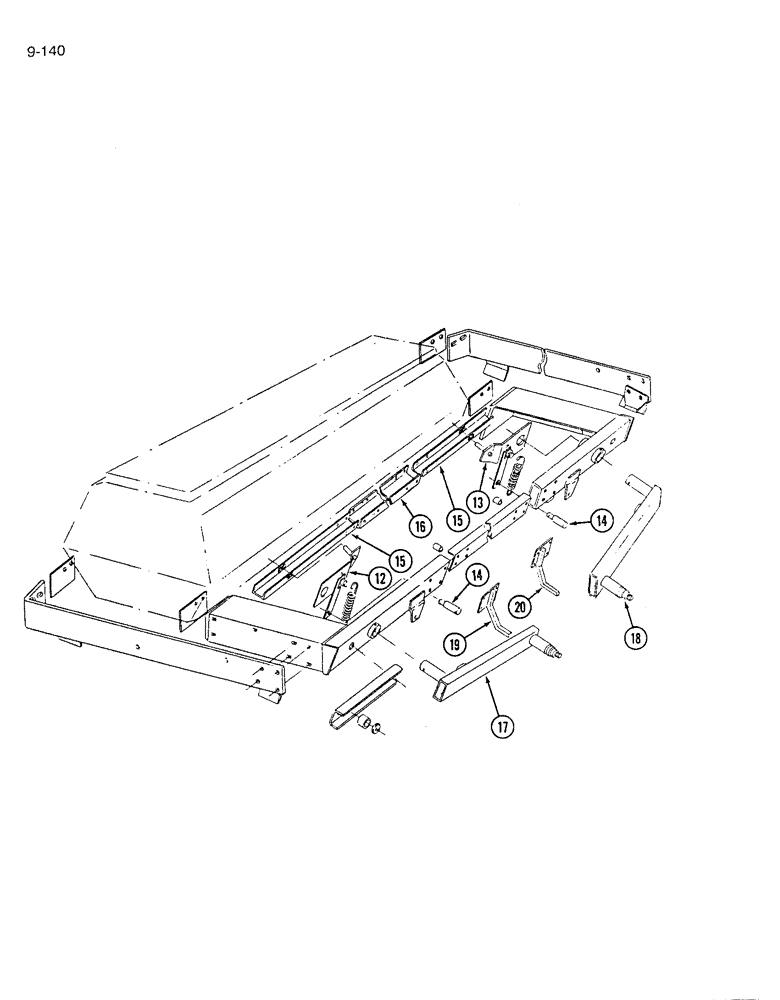

Запчасти Case IH 7200 (9-140) - FRAME AND CONNECTIONS - ENDWISE TRANSPORT, SECOND OR THIRD (09) - CHASSIS/ATTACHMENTS

12

819865C1

LEVER

ASSEMBLY - leveling, left (Continued from previous page)

1шт.

13

819869C1

LEVER

ASSEMBLY - leveling, right

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

4шт.

432-1216

COTTER PIN,3/16" x 1"

4шт.

14

819867C2

PIN

- leveling spring anchor

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

15

817767C2

CHANNEL

- leveling

2шт.

16

818272C1

CHANNEL

- connecting

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

12шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

17

817793C91

AXLE

ASSEMBLY - transport wheel, left (See page 9-147)

1шт.

18

817794C91

AXLE

ASSEMBLY - transport wheel, right (See page 9-147)

1шт.

19

841021C1

SUPPORT

ASSEMBLY - transport wheel lockout, left

1шт.

20

841022C1

SUPPORT

ASSEMBLY - transport wheel lockout, right

1шт.
