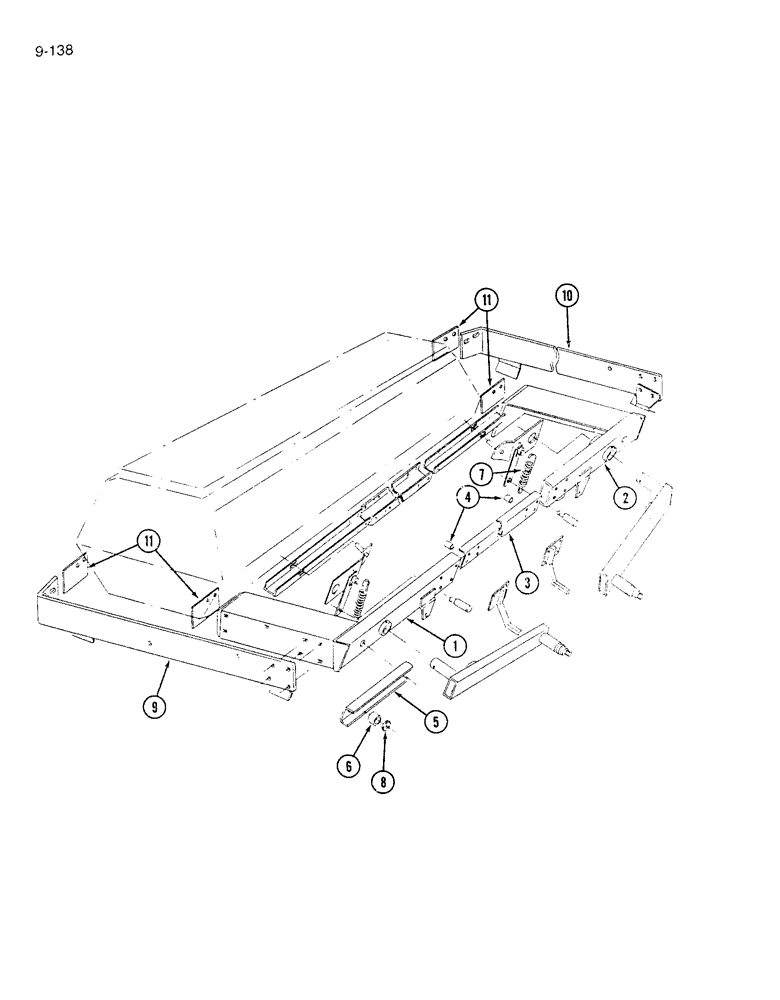

Запчасти Case IH 7200 (9-138) - FRAME AND CONNECTIONS - ENDWISE TRANSPORT, SECOND OR THIRD (09) - CHASSIS/ATTACHMENTS

1

819737C4

FRAME

ASSEMBLY - transport trail, left

1шт.

2

819738C4

FRAME

ASSEMBLY - transport trail, right

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch

2шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

8шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

3

819754C4

CHANNEL

- transport frame tie

1шт.

4

819755C1

SPACER

- pipe

8шт.

5

819806C1

CHANNEL

- drill spreader

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

- hex, 1 NC x 5-1/2 inch

2шт.

425-1216

SLOTTED NUT,Hex, 1"-8, G5

2шт.

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

2шт.

6

819823C1

BUSHING

- rear

2шт.

7

819861C1

COIL SPRING

SPRING - leveling

2шт.

8

819814C1

SPACER

- wear

2шт.

9

817741C2

SUPPORT

ASSEMBLY - transport frame, left

1шт.

10

817742C2

SUPPORT

ASSEMBLY - transport frame, right

1шт.

PO21281

PLOW BOLT,1/2" - 13 x 1 3/4", Gr 5

BOLT - flat head square neck, 1/2 NC x 1-3/4 inch

4шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

26588R1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 5

BOLT - flat head square neck, 5/8 NC x 2-1/4 inch

8шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

19060R1

CARRIAGE BOLT,#3, 1/2" - 13 x 1 1/2", Gr 2

BOLT - round head square neck, 1/2 x 1-1/2 inch

2шт.

28646R1

CARRIAGE BOLT,#3, 1/2" - 13 x 4", Gr 5

BOLT - flat head square neck, 1/2 x 4 inch

2шт.

22191R1

WASHER

- flat, 17/32 x 1-3/4 x 11/64 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

11

819753C2

BAR

PLATE - frame spacer

6шт.
