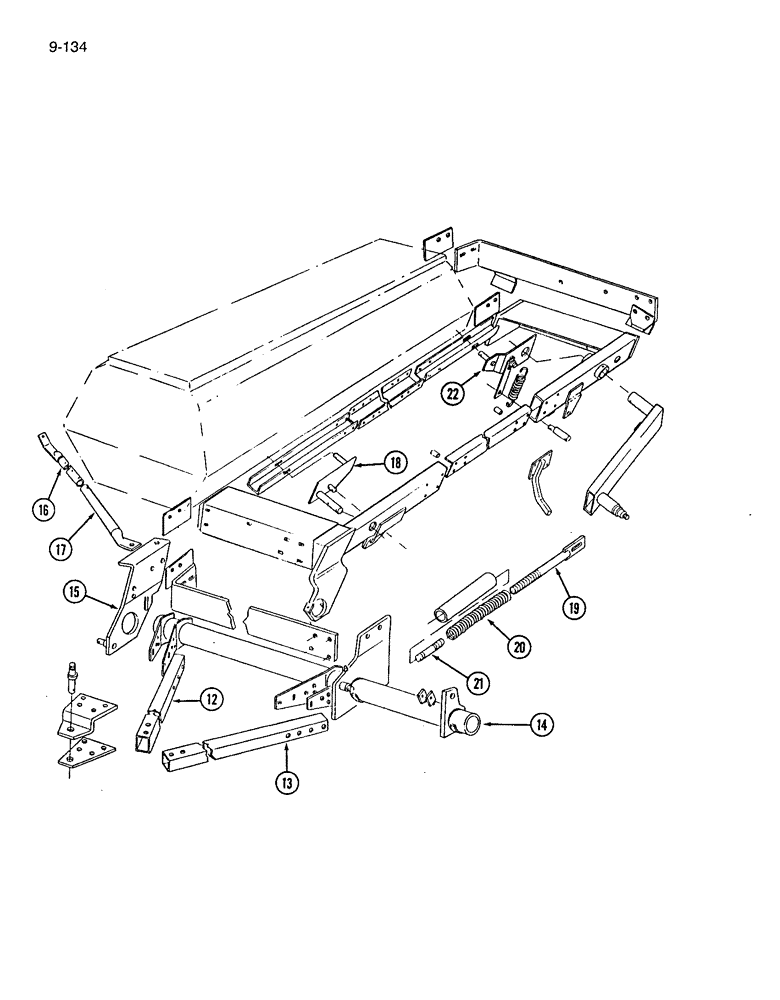

Запчасти Case IH 7200 (9-134) - FRAME AND HITCH CONNECTIONS - ENDWISE TRANSPORT, LEADING (09) - CHASSIS/ATTACHMENTS

12

817729C1

TUBE,71.5" Length

- hitch short (Continued from previous page)

1шт.

13

819766C1

TUBE,61.1" Length

- hitch long

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

817714C1

TUBE,1960, 910 mm Length

ASSEMBLY - hitch pivot

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

425-1010

NUT,5/8"-11, G5

6шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

15

817765C1

SUPPORT

ASSEMBLY - hitch pivot tube, front

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch

1шт.

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

- hex, 3/4 NC x 3 inch

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

16

818421C1

BRACE

ASSEMBLY - hitch front

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

1шт.

17

818423C1

BRACE

ASSEMBLY - hitch rear

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

21933R1

PIN

- headed, 5/8 x 2-1/2 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

18

819810C1

LEVER

- leveling front

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

3шт.

432-1216

COTTER PIN,3/16" x 1"

3шт.

19

819796C1

ROD

- leveling

1шт.

20

819863C1

SPRING

- leveling rod

1шт.

21

819862C1

STUD

- leveling spring

1шт.

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

22

819869C1

LEVER

- leveling, right

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.
