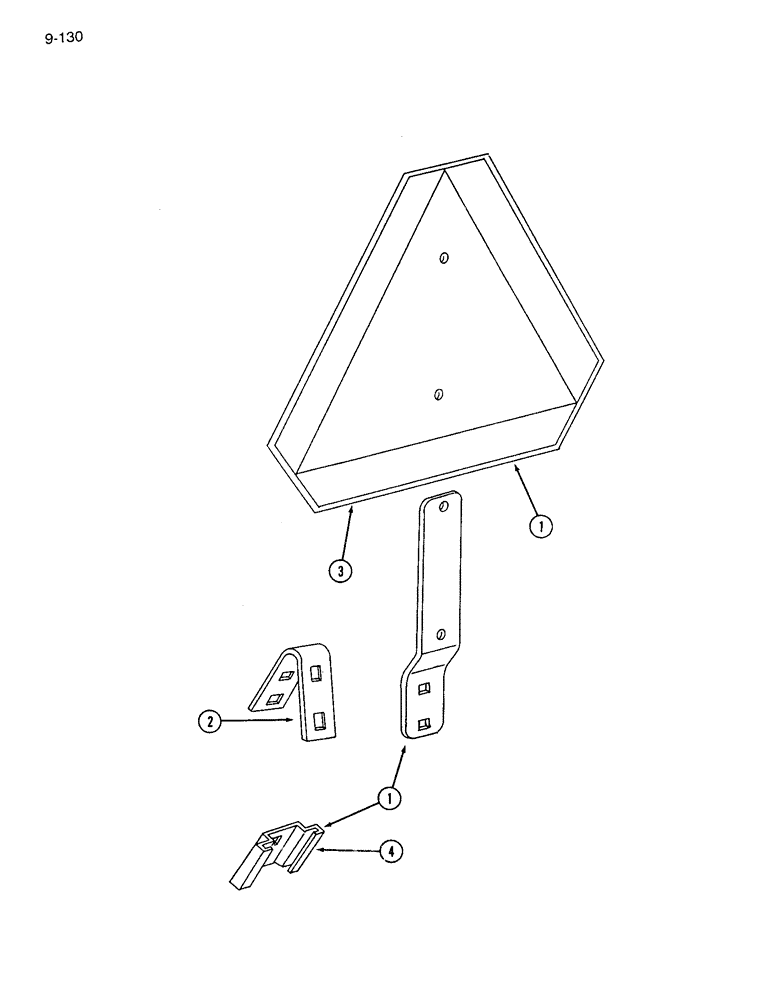

Запчасти Case IH 7200 (9-130) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

1

407220R1

PRODUCT GRAPHIC

PACKAGE - SMV emblem, steel (Replaces 407218R1)

1шт.

2

819998C1

SUPPORT

- SMV emblem (See Note)

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

PACKAGE - SMV emblem film kit

1шт.

4

398976R1

BRACKET

- SMV emblem mounting

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
