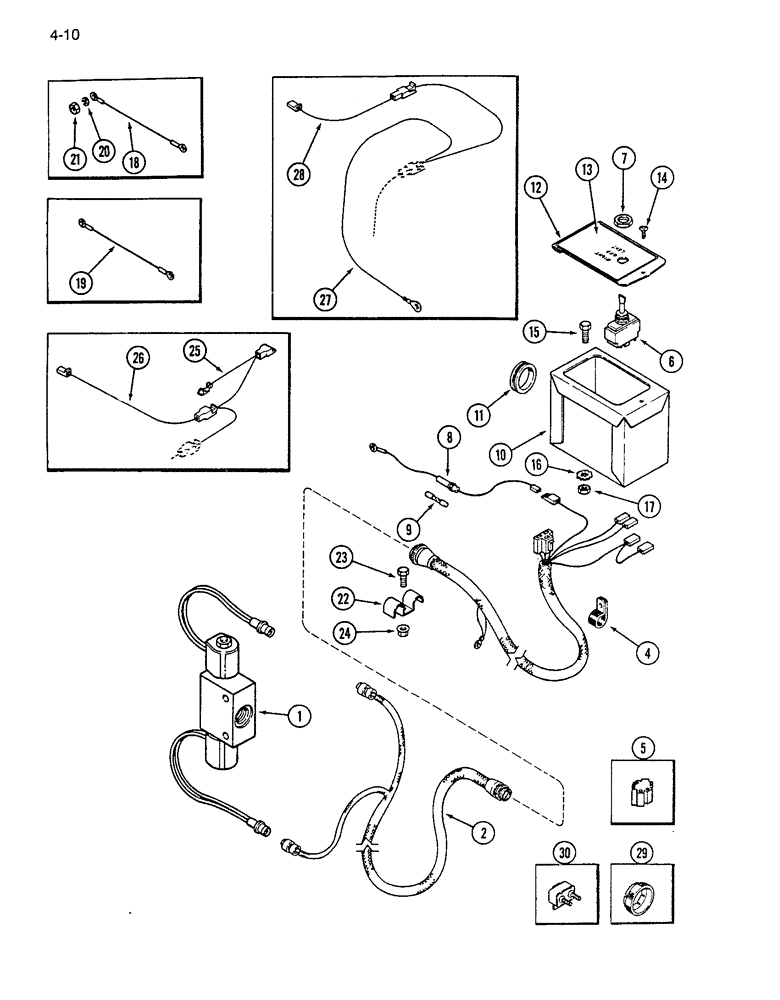

Запчасти Case IH 7200 (4-10) - MARKER CONTROL HYDRAULICS ELECTRICAL SYSTEM, ELECTRONIC (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

VALVE ASSEMBLY - marker control (See page 4-13)

1шт.

2

145121C1

HARNESS

- control, planter

1шт.

3

141405C2

HARNESS

- control, tractor

1шт.

4

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - hose retaining

1шт.

5

491058C1

CONTACT HOUSING,Female, Pole

ADAPTER - harness

1шт.

6

121542C1

SWITCH

- marker control

1шт.

7

57603C1

NUT

- switch

1шт.

8

149506C1

CABLE

- switch

1шт.

9

223-10

FUSE,10 Amp, Type 3AG

- 10 ampere, 3AG

1шт.

10

116259C4

BOX

- control

1шт.

11

169851C1

GROMMET

BUSHING - harness control

1шт.

12

147230C1

PLATE

- control box

1шт.

13

REF

INSTRUCTION

DECAL - marker control (See page 9-153)

1шт.

14

260-1446

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW - self-tapping, pan Phillips, No. 8-18 x 3/8 inch

1шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

16

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, , Shakeproof Ext-Int Tooth, 5/16"

2шт.

17

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

18

111322C1

CABLE

WIRE - black, 8 inch long

1шт.

19

111323C1

CABLE

WIRE - green, 8 inch long

1шт.

20

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

21

225-14210

NUT,#10-32

2шт.

22

1268187C1

WIRE CLAMP

CLAMP - wire retaining

1шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

24

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

25

A181760

CABLE

WIRE - cab connector, 2 wheel drive tractor

1шт.

26

A181761

CABLE

WIRE - marker control, 2 wheel drive tractor

1шт.

27

A181753

CABLE

WIRE - cab connector, MFD tractor

1шт.

28

A181758

CABLE

WIRE - marker control, MFD tractor

1шт.

29

149456C91

SET

RING - 9 pin connector (Package of 10)

1шт.

30

1264471C1

CIRCUIT-BREAKER

BREAKER - circuit, 10 ampere

1шт.
