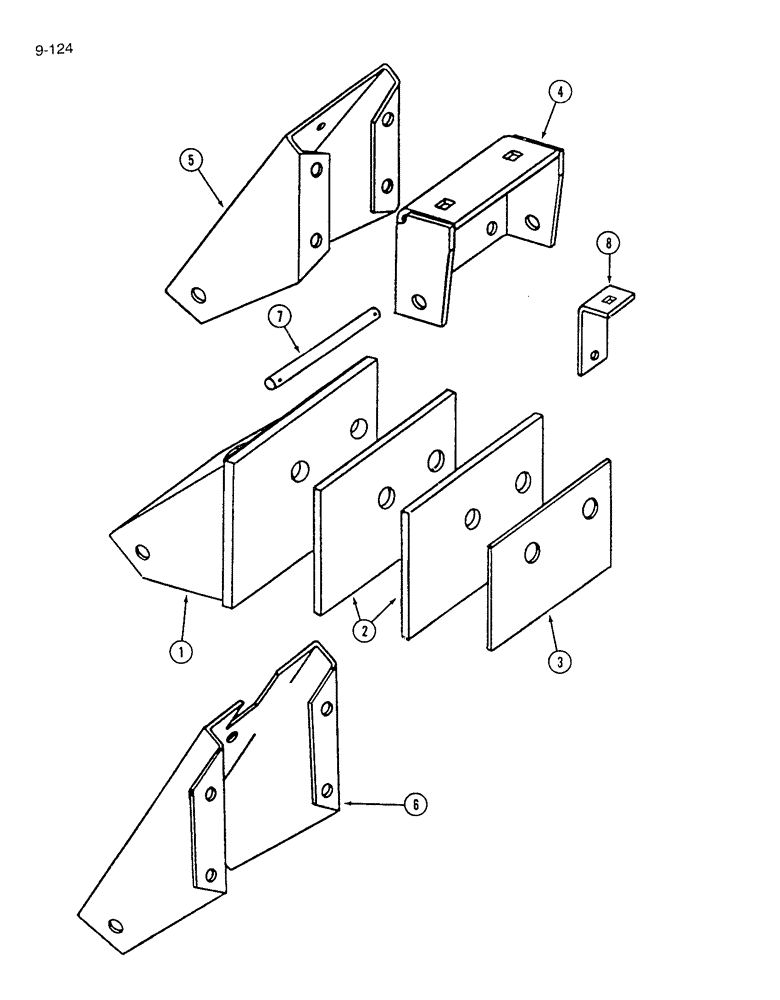

Запчасти Case IH 7200 (9-124) - FURROW OPENER DRAWBAR MOUNTING BRACKETS (09) - CHASSIS/ATTACHMENTS

1

817491C2

BRACKET

ASSEMBLY - furrow opener drawbar

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

2

817493C2

BAR

- backing

2шт.

3

819753C2

BAR

PLATE - bracket spacer

1шт.

4

817102C1

BRACKET

- furrow opener drawbar

15шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

41шт.

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, Grade 8

4шт.

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Qty of 1 per bolt) 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Quantity of 1 per bolt) 1/2"

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

5

817424C1

BRACKET

- furrow opener drawbar

5шт.

6

817425C1

BRACKET

- furrow opener drawbar

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

24шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

22шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

22шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

7

817142C1

PIN

- furrow opener and gang drawbar pivot, 8-21/32 inch

2шт.

7

818440C1

PIN

- furrow opener drawbar pivot, 6-11/16 inch

1шт.

7

605441R1

PIN

- furrow opener drawbar pivot, 7-3/8 inch

19шт.

7

843124C1

PIN,15.88mm OD x 234mm L

- furrow opener and gang drawbar, 9-7/32 inch

2шт.

432-1216

COTTER PIN,3/16" x 1"

(Quantity of 2 per pin) 3/16" x 1"

1шт.

8

817101C1

ANGLE

- gang drawbar

4шт.
