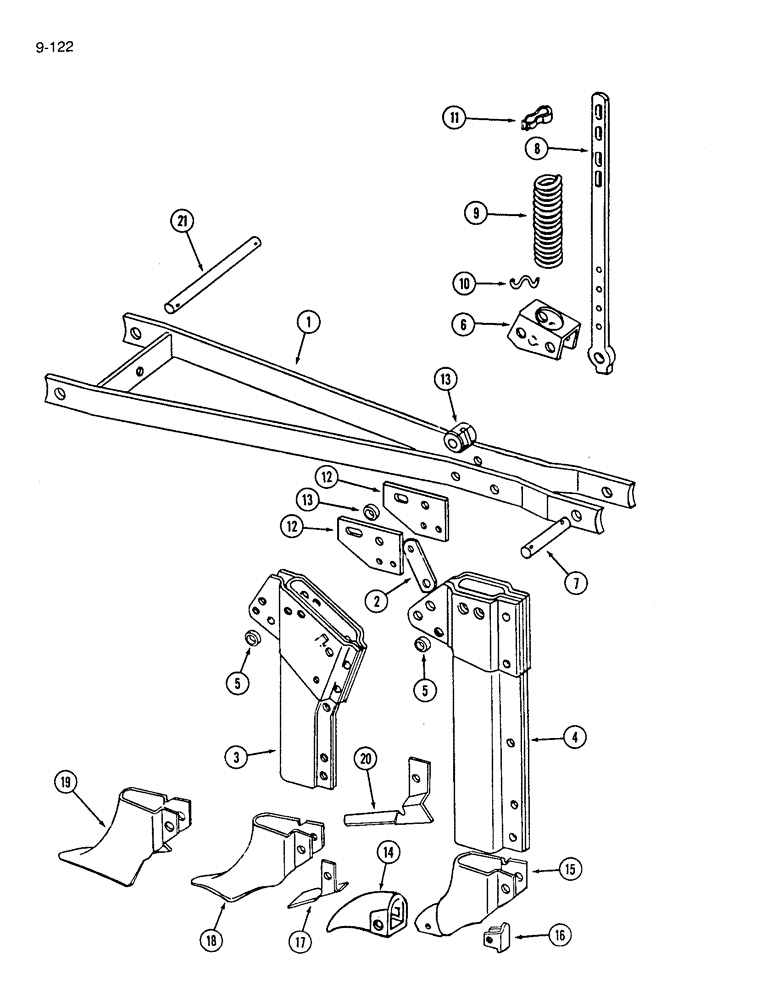

Запчасти Case IH 7200 (9-122) - SHEAR TRIP FURROW OPENER (09) - CHASSIS/ATTACHMENTS

1

818068C2

BAR

DRAWBAR ASSEMBLY - furrow opener

1шт.

2

602437R1

BAR

LINK - trip

1шт.

21889R1

HEADED PIN,3/8" x 1"

PIN - headed, 3/8 x 1 inch

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

3

818103C1

BOOT

ASSEMBLY - front furrow opener

1шт.

4

818064C91

BOOT

ASSEMBLY - rear furrow opener

1шт.

104099

RIVET,But Hd, 5/16" x 1"

- 5/16 x 1 inch

2шт.

5

1976543C1

SPACER

- boot support

1шт.

104100

RIVET,But Hd, 5/16" x 1 1/8"

- 5/16 x 1-1/8 inch

1шт.

6

818075C1

HOLDER

- tube

1шт.

7

818076C1

PIN

- furrow opener

1шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

8

817291C1

BAR

- pressure spring

1шт.

9

6639

SPRING

- pressure

1шт.

10

F6366

LOCK

- pressure spring

1шт.

11

605964R1

CLIP

- spring rod

1шт.

12

818082C2

BAR

- trip link adjusting support

2шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN - headed, 1/2 x 2-1/2 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

13

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

- support bar, 1/2 x 3/8 inch

1шт.

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 5/32 inch

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

14

1279757C1

POINT

- eagle beaked, with hard facing (Replaces 592809R3)

1шт.

15

818087C1

ADAPTER

- point

1шт.

443-12520

SCREW,Cross Flat Hd, 1/4"-20 x 1 1/4"

- flat head, cross recess, 1/4 NC x 1-1/4 inch

1шт.

843381C1

SQUARE NUT,Sq. 1/4"-20

- square, machine screw, 1/4 inch NC

1шт.

16

818088C1

COVER

- point

1шт.

17

818089C1

DEFLECTOR

- grain (For use with 3 inch shovel or hard faced eagle beaked point)

1шт.

18

818085C2

SHOVEL

- 3 inch, tumbled

1шт.

19

818083C2

SHOVEL

- 5 inch, tumbled

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

1шт.

20

819291C1

DEFLECTOR

- grain (For use with 5 inch shovel)

1шт.

21

817142C1

PIN

- furrow opener and gang drawbar pivot, 8-21/32 inch

2шт.

21

818440C1

PIN

- furrow opener drawbar pivot, 6-11/16 inch

1шт.

21

605441R1

PIN

- furrow opener drawbar pivot, 7-3/8 inch

19шт.

21

843124C1

PIN,15.88mm OD x 234mm L

- furrow opener and gang drawbar pivot, 9-7/32 inch

2шт.

432-1216

COTTER PIN,3/16" x 1"

(Quantity of 2 per pin) 3/16" x 1"

1шт.
