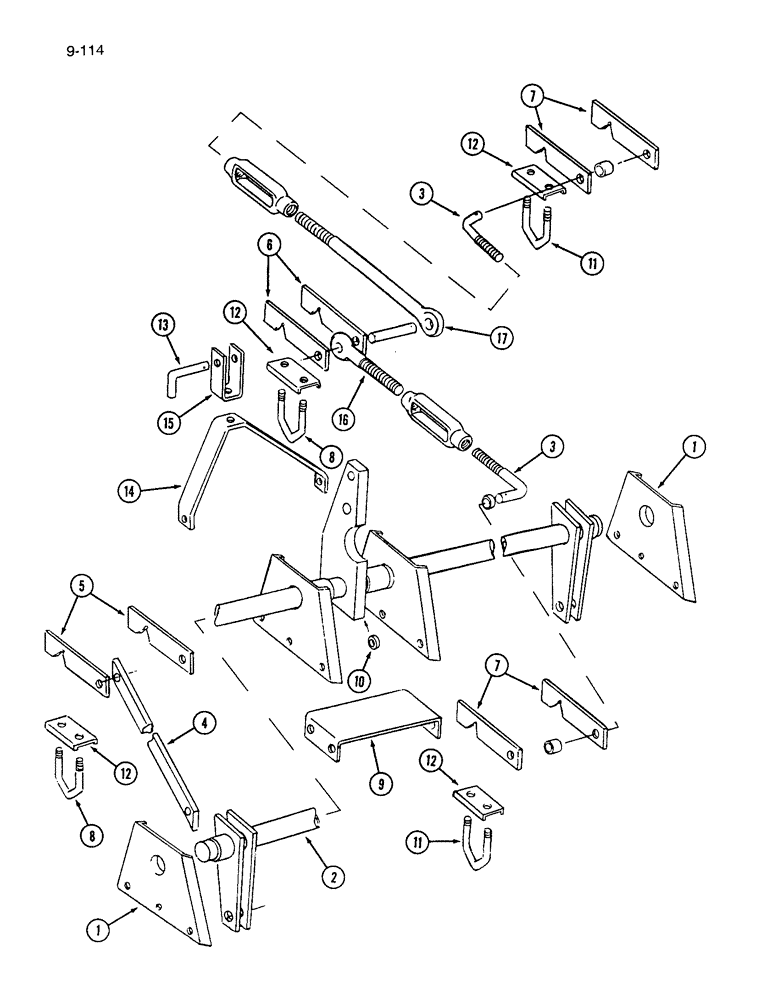

Запчасти Case IH 7200 (9-114) - HYDRAULIC LIFT (09) - CHASSIS/ATTACHMENTS

1

817403C1

BRACKET

ASSEMBLY - rockshaft outer

2шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

2шт.

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, Grade 8

6шт.

429-1010

NUT,5/8"-11, G8

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

2

817401C1

ROCKSHAFT

ASSEMBLY - hydraulic lift

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

2шт.

21750R1

WASHER

- flat, 1-29/32 x 2-1/2 x 1/16 inch

2шт.

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

6шт.

429-1010

NUT,5/8"-11, G8

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

3

817408C1

ROD

- rockshaft connecting, left-hand thread

4шт.

495-81059

WASHER,0.91" ID x 1.75" OD x 0.06" Thk

- flat, 29/32 x 1-3/4 x 1/6 inch

8шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

8шт.

4

817406C1

BAR

- lift connecting, front

2шт.

5

817405C1

ARM

- connecting bar

4шт.

138087

CLEVIS PIN,5/8" x 1.610"

PIN - clevis, 5/8 x 1-5/8 inch

4шт.

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

4шт.

6

817404C1

ARM

- lift center

4шт.

7

817347C1

ARM

- lift, front and rear

8шт.

8

603422R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT - lift center rockshaft

4шт.

425-1010

NUT,5/8"-11, G5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

9

818140C1

CHANNEL

- frame cross support reinforcement

1шт.

10

818406C1

SPACER

- filler

1шт.

11

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT - lift arm clamp

4шт.

425-1010

NUT,5/8"-11, G5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

12

603393R1

CHANNEL

- lift arm retainer

8шт.

13

600829R2

ROD

- cylinder lock

1шт.

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

1шт.

14

817147C1

YOKE

- hydraulic lift lock

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

15

816395C1

YOKE

- rockshaft lock

1шт.

17585R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

32-820

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

16

817407C1

BOLT,Eye, 7/8" - 9 x 180mm, LH Thd

- rockshaft connecting eye, left-hand thread

2шт.

129-387

NUT,Jam, 7/8"-9, G5, LH

- hex, jam, 7/8 inch NC

4шт.

17

818164C1

BOLT,Eye, 7/8" - 9 x 394mm, LH Thd

- rockshaft connecting eye, left-hand thread

2шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

4шт.
