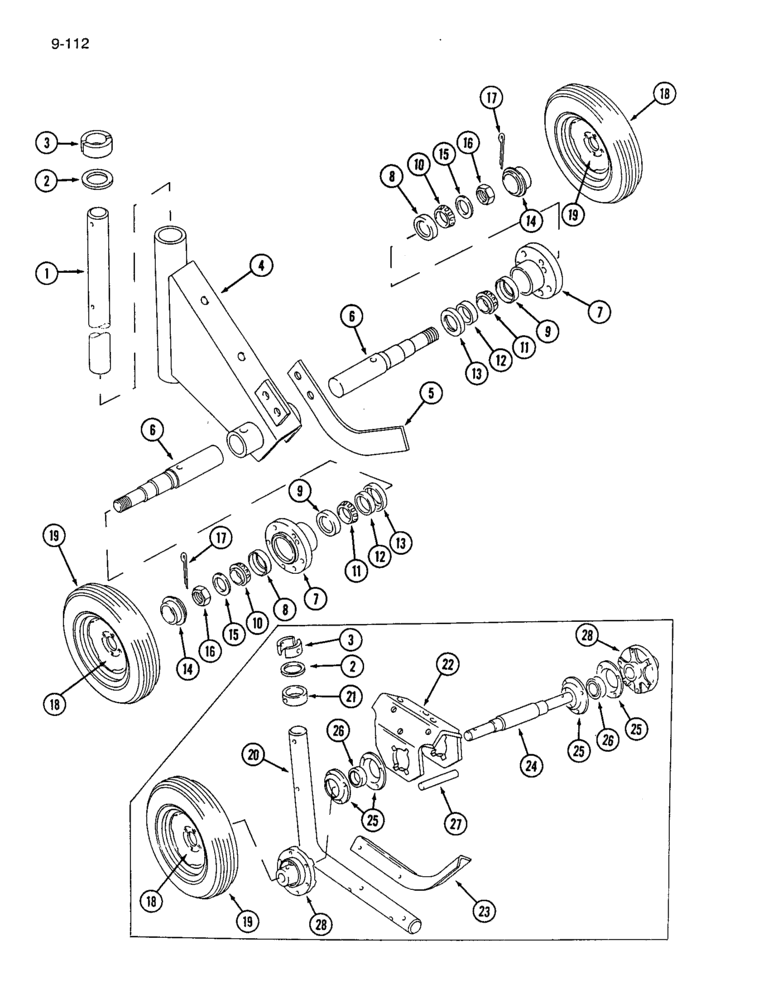

Запчасти Case IH 7200 (9-112) - CASTER WHEEL AXLE (09) - CHASSIS/ATTACHMENTS

1

1980602C1

PIN

- pivot

1шт.

2

495-81243

WASHER,2 5/16" x 3" x .120"

- flat, 2-5/16 x 3 x 1/8 inch

1шт.

3

819447C1

CLAMP

- shank locking

2шт.

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

1шт.

4

1980606C1

SUPPORT

ASSEMBLY - caster wheel

1шт.

5

1980604C1

BAR

- rock kicker

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

6

1980605C1

AXLE

SPINDLE - wheel

2шт.

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

7

810087C2

HUB

- wheel, six bolt mount

2шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

2шт.

8

651814R1

BEARING CUP

CUP - bearing, outer

2шт.

9

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing, inner

2шт.

10

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, outer

2шт.

10

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

11

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing, inner

2шт.

12

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

2шт.

13

472222R1

SLEEVE

- oil seal

2шт.

14

B13280

HUB CAP

CAP - wheel hub

2шт.

15

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat hardened, 25/32 x 1-1/4 x 1/8 inch

2шт.

16

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

2шт.

17

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

18

481344R91

WHEEL

- steel, 14 x 8 KB, caster

2шт.

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

12шт.

19

TIRE - 8.5 L-14 4 ply, tubeless

2шт.

810768C1

VALVE

- tubeless tire, steel

2шт.

20

817043C1

SHANK

- axle

1шт.

21

816007C2

SPACER

BUSHING - axle shank lock collar

2шт.

818155C1

PIN

- locking collar bushing

1шт.

32-1016

COTTER PIN

PIN - cotter, 5/32 x 1 inch

1шт.

22

819449C1

CARRIER

- axle and bearing

1шт.

23

816557C2

ANGLE

- stone kicker

1шт.

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

- hex, 5/8 NC x 4 inch, Grade 8

4шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

4шт.

24

843369C1

AXLE

- wheel (Replaces axle 819448C2 by also ordering (2) bearings 818370C91)

1шт.

25

663562R1

FLANGE

- bearing

4шт.

413-8120

BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5

- hex, 1/2 NC x 7-1/2 inch

2шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

4шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

6шт.

26

818370C91

SPHERICAL BEARING,40mm ID x 80mm OD x 26.92mm W

- wheel (Replaces 819259C91 by also ordering axle, 843369C1 and(1) more bearing, 818370C91)

2шт.

27

27797R1

SPACER,1/2" Pipe x 5"

- standard, 1/2 x 5 inch

2шт.

28

816559C3

HUB

- wheel

2шт.

816576C1

PIN

- caster wheel hub

2шт.

432-1216

COTTER PIN,3/16" x 1"

4шт.
