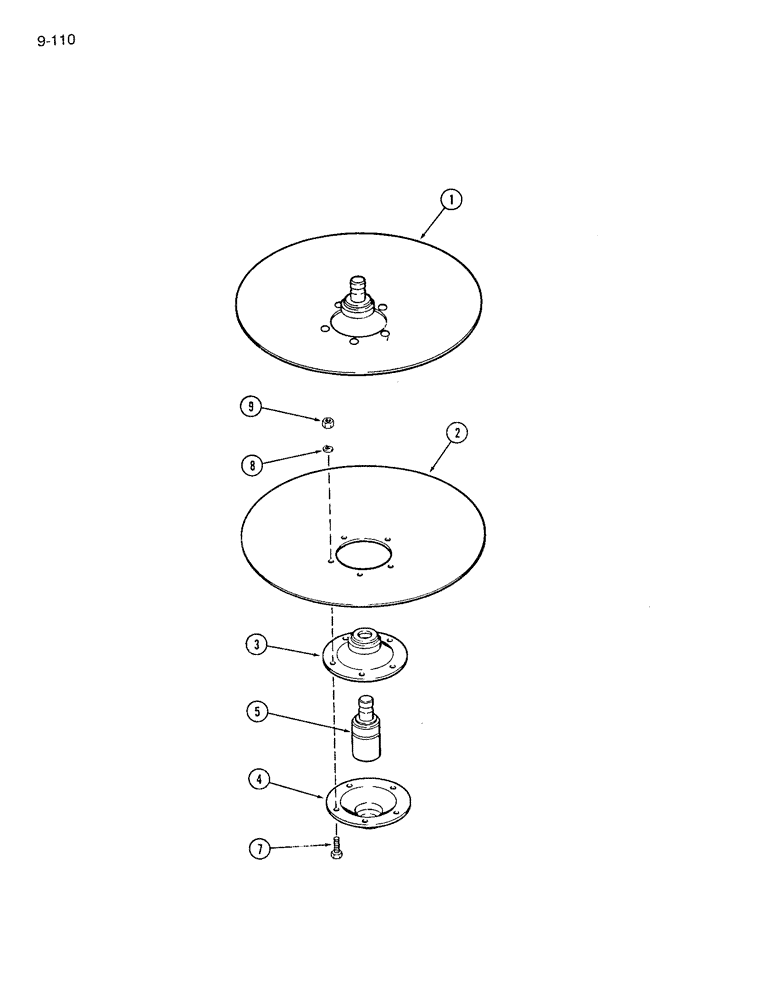

Запчасти Case IH 7200 (9-110) - MARKER DISC, HYDRAULIC FOLDING (09) - CHASSIS/ATTACHMENTS

1

1337981C2

DISC

ASSEMBLY - marker, 5 holes

2шт.

2

31283R1

DISC,13", FLAT CENTER

- marker

1шт.

3

472020R1

BEARING HOUSING,19.66 mm ID x 38.125 mm OD

HOUSING - bearing, inner

1шт.

4

472021R1

HOUSING,38.125 mm ID x 76.2 mm OD

- bearing, outer

1шт.

5

1980505C1

BALL BEARING,38.1mm OD x 90.91mm L

BEARING - ball

1шт.

NSS

NOT SOLD SEPARAT

PIN - cotter, 1/4 x 1-1/2 inch (Order Ref. 7, 8 and 9)

5шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

5шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

5шт.
