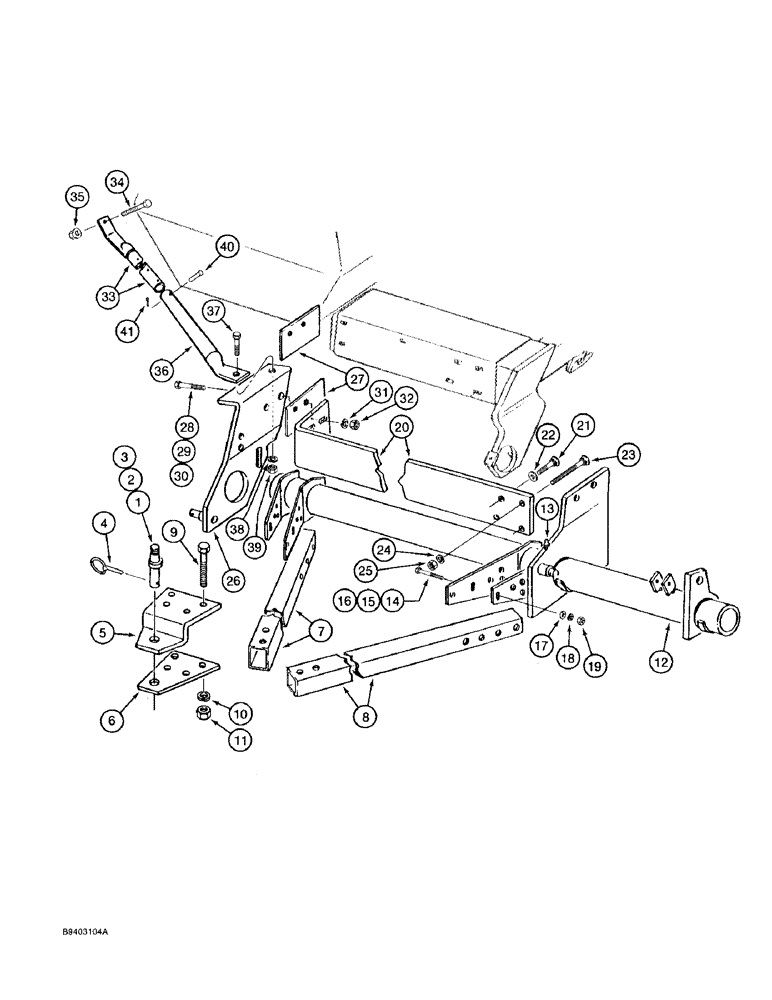

Запчасти Case IH 7100 (9-138) - FRAME HITCH, ENDWISE TRANSPORT, LEADING UNIT (09) - CHASSIS/ATTACHMENTS

1

472790R2

STUD

- hitch

1шт.

2

492-11112

LOCK WASHER,1 1/8"

1 1/8"

1шт.

3

425-1118

NUT,1 1/8"-12, G5

- hex, 1-1/8 inch NF

1шт.

4

392181R91

PIN

- snap lock

1шт.

5

817730C1

SUPPORT

- hitch stud

1шт.

6

817731C1

PLATE

- hitch stud

1шт.

7

817729C1

TUBE,71.5" Length

- hitch, left-hand, 71-1/2 inch long

1шт.

8

819766C1

TUBE,61.1" Length

- hitch, right-hand, 61-1/8 inch long

1шт.

9

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

425-1010

NUT,5/8"-11, G5

4шт.

12

817714C1

TUBE,1960, 910 mm Length

- hitch pivot

1шт.

13

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch

1шт.

14

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

15

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

16

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

17

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

4шт.

18

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

19

425-1010

NUT,5/8"-11, G5

6шт.

20

817727C3

SUPPORT

- transport frame, left

1шт.

21

419-3824

PLOW BOLT,#3, 1/2" - 13 x 1 1/2", Gr 5

BOLT - plow head, 1/2 NC x 1-1/2 inch

2шт.

22

495-81164

WASHER,0.53" ID x 1.75" OD x 0.18" Thk

- flat, 17/32 x 1-3/4 x 11/64 inch

2шт.

23

28646R1

CARRIAGE BOLT,#3, 1/2" - 13 x 4", Gr 5

BOLT - plow head, 1/2 NC x 4 inch

2шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

26

817765C2

SUPPORT

- hitch pivot tube, front (See page 9-119, item 15, for support used when drill is equipped with endwise transport and disk marker attachment

1шт.

27

819753C2

BAR

- frame spacer

3шт.

28

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

2шт.

29

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

30

419-31248

CARRIAGE BOLT,#3, 3/4" - 10 x 3", Gr 5

BOLT - plow head, 3/4 NC x 3 inch

1шт.

31

492-11075

LOCK WASHER,3/4"

3/4"

5шт.

32

425-1012

NUT,3/4"-10, G5

5шт.

33

818421C1

BRACE

- hitch front

1шт.

34

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

1шт.

35

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

1шт.

36

818423C1

BRACE

- hitch rear

1шт.

37

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

1шт.

38

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

39

425-1012

NUT,3/4"-10, G5

1шт.

40

520277R1

PIN

- headed, 5/8 x 2-7/8 inch

1шт.

41

432-1216

COTTER PIN,3/16" x 1"

1шт.
