Запчасти Case IH 7100 (9-136) - FURROW OPENER DRAWBAR MOUNTING BRACKETS (09) - CHASSIS/ATTACHMENTS

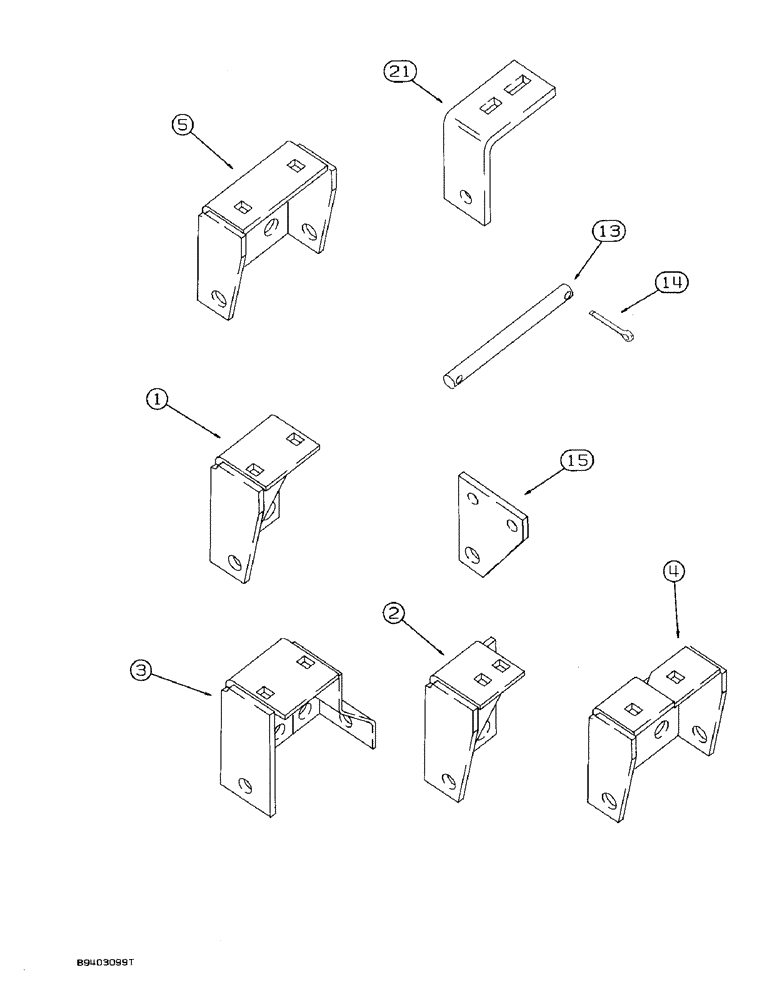

Схема запчастей Case IH 7100 - (9-136) - FURROW OPENER DRAWBAR MOUNTING BRACKETS (09) - CHASSIS/ATTACHMENTS
3
21
2
14
4
15
5
1
13

Артикул

Название

Примечание

Количество

1

818156C1

BRACKET

- furrow opener drawbar, left-hand, 12 x 10, 18 x 8, 16 x 10

1шт.

1

818157C1

BRACKET

- furrow opener drawbar, right-hand, 16 x 10

1шт.

2

818312C1

BRACKET - furrow opener drawbar, 18 x 8

1шт.

3

818212C1

BRACKET

- furrow opener drawbar, left-hand, 10 x 12, 8 x 18, 10 x 14, 18 x 8

1шт.

3

818212C1

BRACKET

- furrow opener drawbar, left-hand, 12 x 10, 14 x 10, 16 x 10, 14 x 12

2шт.

3

818213C1

BRACKET

- furrow opener drawbar, right-hand, 14 x 10, 8 x 18

1шт.

3

818213C1

BRACKET

- furrow opener drawbar, right-hand, 16 x 10, 18 x 8

2шт.

4

843344C1

BRACKET

- furrow opener drawbar, 18 x 8

1шт.

5

817102C1

BRACKET

- furrow opener drawbar, 8 x 18

6шт.

5

817102C1

BRACKET

- furrow opener drawbar, 10 x 14, 10 x 12

9шт.

5

817102C1

BRACKET

- furrow opener drawbar, 12 x 10

10шт.

5

817102C1

BRACKET

- furrow opener drawbar, 14 x 10

11шт.

5

817102C1

BRACKET

- furrow opener drawbar, 16 x 10, 14 x 12

12шт.

5

817102C1

BRACKET

- furrow opener drawbar, 18 x 8

14шт.

6

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch, not shown

1шт.

7

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch, not shown

1шт.

8

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, Grade 8, Not shown

3шт.

9

231-4138

LOCK NUT,1/2"-13, GB

NUT - hex, self locking, 1/2 inch NC, Not shown

3шт.

10

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 7/64 inch, not shown

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Qty of 1 per bolt), Not shown 1/2"-13, G5

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Quantity of 1 per bolt), Not shown 1/2"

1шт.

13

818440C1

PIN

- furrow opener drawbar pivot, 6-11/16 inch

1шт.

13

605441R1

PIN

- furrow opener drawbar pivot, 7-3/8 inch

8-15шт.

13

817142C1

PIN

- furrow opener and gang drawbar pivot, 8-21/32 inch

1-3шт.

13

843124C1

PIN,15.88mm OD x 234mm L

- furrow opener and gang drawbar, 9-7/32 inch

1шт.

14

432-1216

COTTER PIN,3/16" x 1"

(Quantity of 2 per pin) 3/16" x 1"

1шт.

15

817062C12

BAR - backing, Serial Range: (Prior-1980)

1шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, Not shown

2шт.

17

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Not shown Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Not shown 1/2"-13, G5

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Not shown 1/2"

2шт.

20

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 5/32 inch, not shown

2шт.

21

818188C1

ANGLE

- gang drawbar

3шт.

22

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch, not shown

2шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Qty of 1 per bolt), Not shown 1/2"-13, G5

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Quantity of 1 per bolt), Not shown 1/2"

1шт.

Выбрано товаров: 36
