Запчасти Case IH 7100 (9-134) - DIRT DEFLECTOR, USED WITH 8 X 18 AND 10 X 14 INCH HILLSIDE DRILL (09) - CHASSIS/ATTACHMENTS

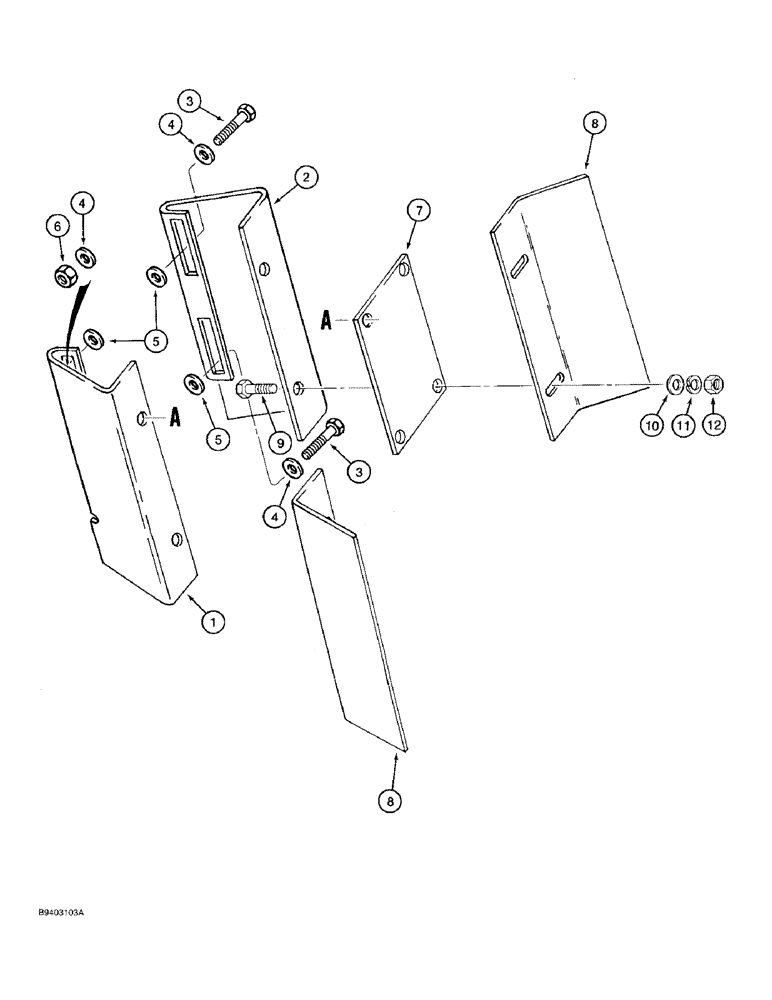

Схема запчастей Case IH 7100 - (9-134) - DIRT DEFLECTOR, USED WITH 8 X 18 AND 10 X 14 INCH HILLSIDE DRILL (09) - CHASSIS/ATTACHMENTS
3
3
1
2
12
4
4
8
10
9
6
5
11
8
7
5
4

Артикул

Название

Примечание

Количество

1

819265C1

DEFLECTOR

- dirt, left-hand front

1шт.

2

819266C1

DEFLECTOR

- dirt, right-hand front

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

4

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

4шт.

5

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

4шт.

6

24764R1

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

7

819268C1

BAR

- tie, deflector

1шт.

8

819267C1

DEFLECTOR

- dirt, rear

2шт.

9

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

10

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

4шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

425-106

NUT,3/8"-16, Cl 5

4шт.

Выбрано товаров: 12
