Запчасти Case IH 7100 (9-132) - FURROW OPENER POINTS (09) - CHASSIS/ATTACHMENTS

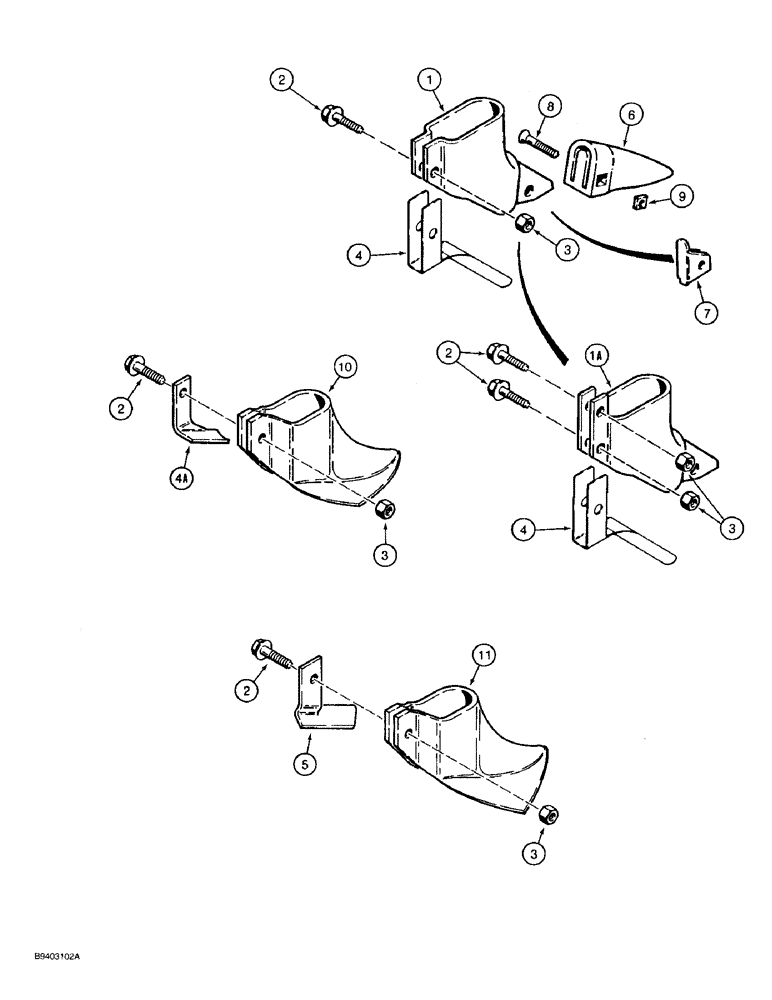

Схема запчастей Case IH 7100 - (9-132) - FURROW OPENER POINTS (09) - CHASSIS/ATTACHMENTS
10
6
1a
2
4
4
11
8
2
3
9
3
5
3
4a
2
2
3
1
7

Артикул

Название

Примечание

Количество

1

818087C1

ADAPTER

- point to opener, with one mounting hole, used with eagle beak point only

1шт.

1a

818087C2

ADAPTER

- point to opener, with two mounting holes, used with eagle beak point only

1шт.

2

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex head, locking, 3/8 NC x 1-1/4 inch

1-2шт.

3

231-5146

FLANGE NUT,3/8"-16

1-2шт.

4

1333722C1

DEFLECTOR

- grain, used with eagle beak point only

1шт.

4a

818089C1

DEFLECTOR

- grain, used with 3 inch shovel only

1шт.

5

819291C1

DEFLECTOR

- grain, used with 5 inch shovel only

1шт.

6

1279757C1

POINT

- opener, eagle beak

1шт.

7

818088C1

COVER

- point, eagle beak

1шт.

8

443-12520

SCREW,Cross Flat Hd, 1/4"-20 x 1 1/4"

- machine, flat head, 1/4 NC x 1-1/4 inch

1шт.

9

843381C1

SQUARE NUT,Sq. 1/4"-20

- square, 1/4 inch NC

1шт.

10

818085C2

SHOVEL

POINT - shovel, 3 inch

1шт.

11

818083C2

SHOVEL

POINT - shovel, 5 inch

1шт.

Выбрано товаров: 13
