Запчасти Case IH 7100 (9-128) - FURROW OPENER, SPRING TRIP (09) - CHASSIS/ATTACHMENTS

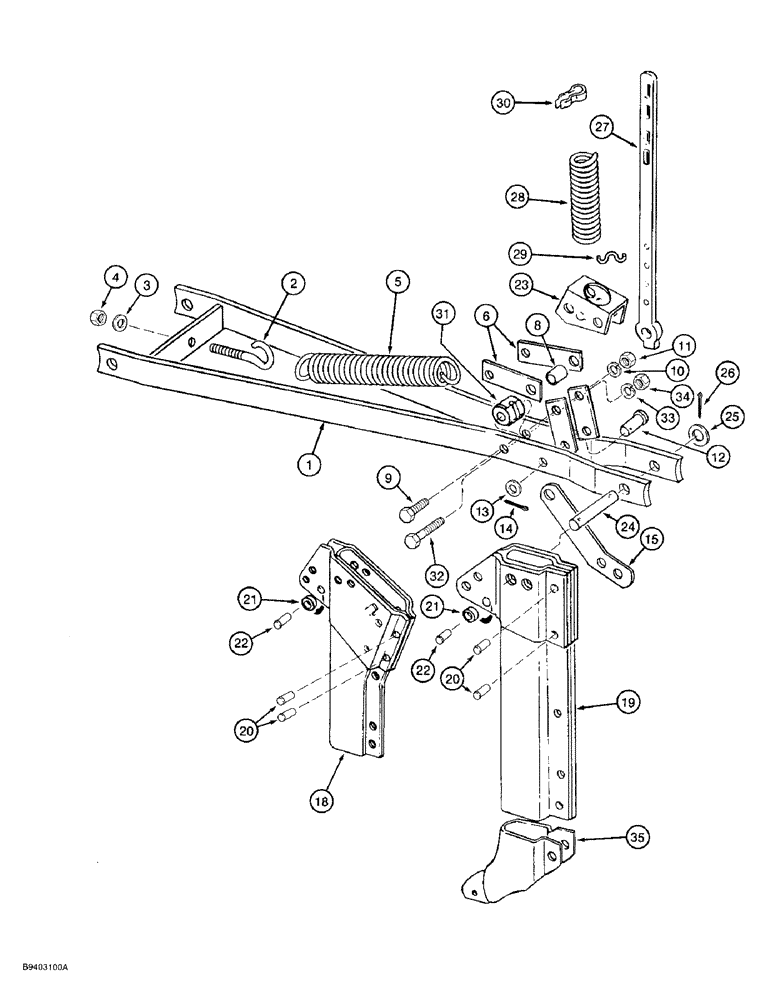

Схема запчастей Case IH 7100 - (9-128) - FURROW OPENER, SPRING TRIP (09) - CHASSIS/ATTACHMENTS
34
19
23
18
1
22
20
31
8
5
30
20
11
15
6
22
13
27
24
21
26
14
33
12
21
3
35
2
9
25
4
32
10
28
29

Артикул

Название

Примечание

Количество

1

818068C2

BAR

DRAWBAR - furrow opener

1шт.

2

818079C1

BOLT,Hook, 1/2" - 13 x 4.75"

- trip spring hook

1шт.

3

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch

1шт.

4

231-1448

NUT,1/2"-13, GB

- hex, lock, 1/2 inch NC

1шт.

5

PO196A

SPRING

- trip

1шт.

6

818080C1

BAR

- spring link

2шт.

7

818081C3

BAR

- trip link

2шт.

8

85490H

SPACER

- link, 5/8 x 3/4 inch, tube

1шт.

9

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

427-8114

CLEVIS PIN,12.7mm OD x 28.98mm L

PIN - clevis, 1/2 x 1-5/32 inch

2шт.

13

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 1/8 inch

2шт.

14

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

15

818077C2

LINK

- trip

1шт.

16

21889R1

HEADED PIN,3/8" x 1"

PIN - headed, 3/8 x 1 inch

1шт.

17

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

18

818103C1

BOOT

ASSEMBLY - front furrow opener

1шт.

19

818064C91

BOOT

ASSEMBLY - rear furrow opener

1шт.

20

45-516

RIVET,But Hd, 5/16" x 1"

- 5/16 x 1 inch

2шт.

21

1976543C1

SPACER

- boot support

1шт.

22

45-518

RIVET,But Hd, 5/16" x 1 1/8"

- 5/16 x 1-1/8 inch

1шт.

23

818075C1

HOLDER

- tube

1шт.

24

818076C1

PIN

- furrow opener

1шт.

25

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

26

432-1216

COTTER PIN,3/16" x 1"

2шт.

27

817291C1

BAR

- pressure spring

1шт.

28

6639

SPRING

- pressure

1шт.

29

F6366

LOCK

- pressure spring

1шт.

30

605964R1

CLIP

- spring rod

1шт.

31

818078C3

SPACER

- drawbar

1шт.

32

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

34

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

35

REF

INSTRUCTION

ADAPTER - point to opener, see page 9-133 for points and deflectors

1шт.

Выбрано товаров: 35
