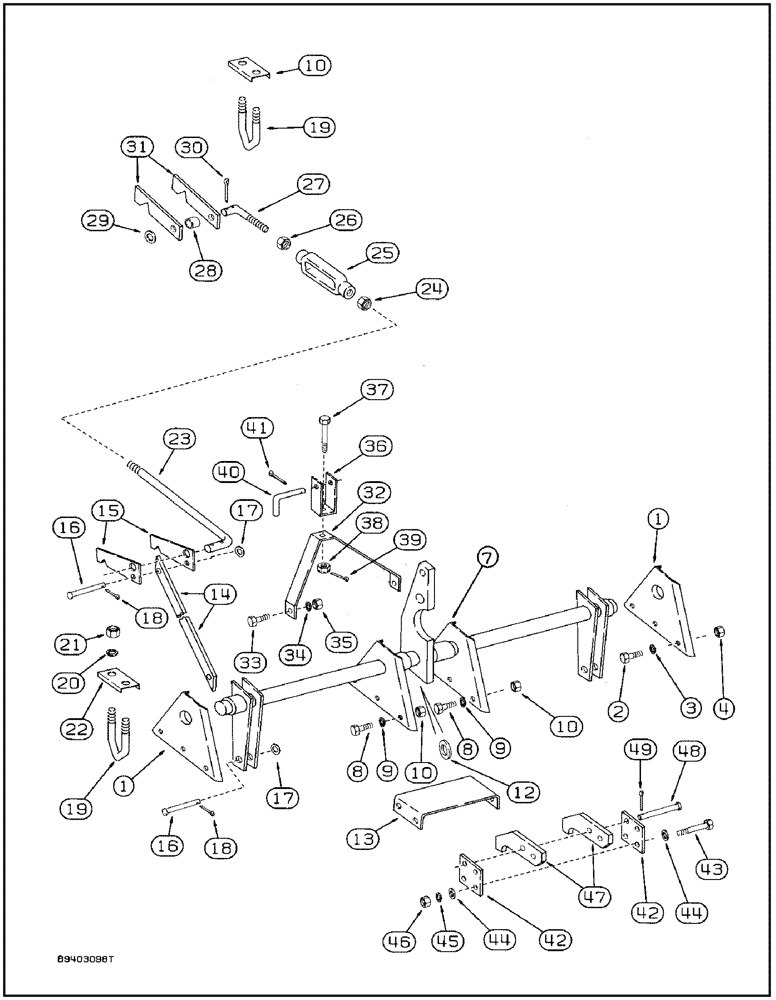

Запчасти Case IH 7100 (9-124) - HYDRAULIC LIFT (09) - CHASSIS/ATTACHMENTS

1

818159C1

BRACKET

- rockshaft outer

2шт.

2

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

6шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

4

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, Grade 8

6шт.

5

495-81096

WASHER,1 29/32" x 2 1/2" x .060"

- flat, 1-29/32 x 2-1/2 x 1/16 inch, not shown

2шт.

6

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap, not shown

2шт.

7

817579C1

ROCKSHAFT

- hydraulic lift, 10 x 12, 12 x 10

1шт.

7

817292C1

ROCKSHAFT

- hydraulic lift, 14 x 12, 16 x 10

1шт.

7

817190C1

ROCKSHAFT

- hydraulic lift, 10 x 14, 14 x 10, 18 x 8, 8 x 18

1шт.

8

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, Grade 8

6шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

10

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, Grade 8

6шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap, not shown

2шт.

12

818406C1

SPACER

- filler

1шт.

13

818120C1

CHANNEL

- frame cross support reinforcement

1шт.

14

817295C1

BAR

- lift connecting, front

2шт.

15

817296C1

ARM

- connecting bar

4шт.

16

427-10161

CLEVIS PIN,15.88mm OD x 40.89mm L

PIN - clevis, 5/8 x 1-39/64 inch

4шт.

17

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

18

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

4шт.

19

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT - lift arm clamp

5шт.

20

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

21

425-1010

NUT,5/8"-11, G5

10шт.

22

603393R1

CHANNEL

- lift arm retainer

10шт.

23

817408C1

ROD

- rockshaft connecting, right-hand thread

2шт.

24

129-387

NUT,Jam, 7/8"-9, G5, LH

- hex, jam, 7/8 inch NC

2шт.

25

595992R1

TURNBUCKLE

- rockshaft connecting rod

2шт.

26

425-1414

JAM NUT,Jam, 7/8"-9, G5

2шт.

27

817390C1

ROD

- rockshaft connecting, left-hand thread

2шт.

28

623907R1

SPACER,1" Pipe x 5/8"

- connecting rod

3шт.

29

495-81056

WASHER,29/32" x 1 1/2" x 3/64

- flat, 25/32 x 1-1/2 x 1/16 inch

8шт.

30

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

8шт.

31

817347C1

ARM

- lift, front and rear

8шт.

32

817168C1

YOKE

- hydraulic lift lock

1шт.

33

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

35

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

36

816395C1

YOKE

- rockshaft lock

1шт.

37

17585R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch

1шт.

38

425-1210

SLOTTED NUT,Hex, 5/8"-11, G5

1шт.

39

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

40

600829R2

ROD

- cylinder lock

1шт.

41

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

1шт.

42

819262C2

LEDGER PLATE

PLATE - mounting bracket tie

2шт.

43

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

44

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

4шт.

45

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

46

425-1010

NUT,5/8"-11, G5

2шт.

47

819383C1

RETAINER

- cylinder

2шт.

48

21957R1

HEADED PIN,5/8" x 2"

PIN - headed, 5/8 x 2 inch

1шт.

49

432-1216

COTTER PIN,3/16" x 1"

1шт.
