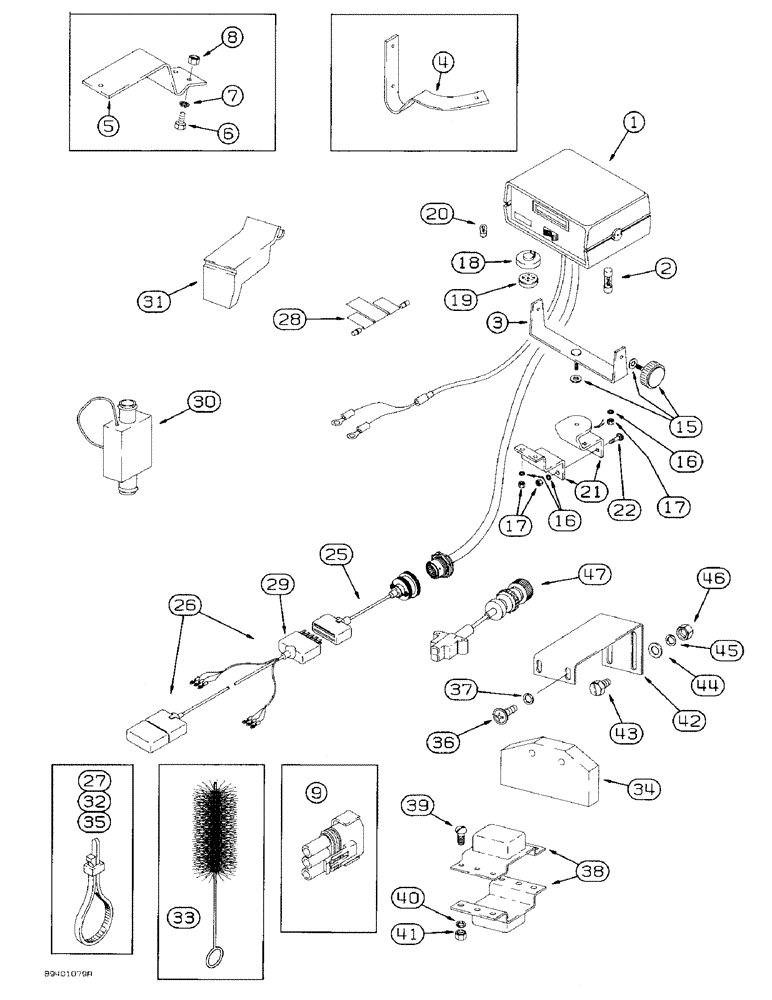

Запчасти Case IH 7100 (4-6) - SEED FLOW II MONITOR (04) - ELECTRICAL SYSTEMS

1

245821C91

CONSOLE

MONITOR - seed Flow II

1шт.

1

126420A1R

REMAN-ELECT MONITOR

Reman Monitor Remanufactured Instrument Cluster

1шт.

1

126420A1C

CORE-MONITOR

Return Number, Monitor

1шт.

2

223-38

FUSE,3 Amp, Type 3AG

FUSE - 3 ampere, 3AG

1шт.

3

1261523C91

BRACKET

BRACKET - mounting (IH 50 Series Tractor)

1шт.

4

1960456C1

BRACKET

BRACKET - mounting (JI Case 7100 Series Tractor)

1шт.

5

90905C2

BRACKET, SUPPORTING

BRACKET - mounting (JI Case 94 and 96 Series Tractor)

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT - hex, 5/16 NC x 1 inch

2шт.

7

495-11034

WASHER,5/16", SAE

WASHER, (11/32 x 11/16 x 1/16") 5/16", SAE

2шт.

8

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

2шт.

9

245617C1

CONNECTOR,ELECTRIC

PLUG - cable shorting

2шт.

15

1261524C91

REPAIR KIT

KIT - knob (Includes 2 knobs and 3 washers)

1шт.

16

392-11031

LOCK WASHER,5/16"

5/16"

1шт.

17

325-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

1шт.

18

1261548C1

ALARM

ALARM - monitor

1шт.

19

1261549C1

DAMPER

DAMPER - alarm

1шт.

20

58554C1

BULB,C2F, #1892, 14V

BULB - light, No. 1892

1шт.

21

1261522C91

BRACKET, SUPPORTING

KIT - mounting bracket (IH 50 Series Tractor)

1шт.

22

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

25

90925C1

CABLE

HARNESS - monitor adapter

1шт.

26

819975C91

HARNESS

HARNESS - monitor, 10 contact plug

1шт.

26

819977C91

HARNESS

HARNESS - monitor, (Fourth drill wiring)

1шт.

26

819974C91

HARNESS

HARNESS - monitor, 12 contact plug

1шт.

27

22-284

LENS

STRAP - retaining, 7 inch long

1шт.

27

306132C1

CABLE TIE,14.5" L

CABLE STRAP STRAP - retaining, 14 inch long

1шт.

28

58557C1

ELECTRICAL WIRE

WIRE WIRE - shorting

1шт.

29

128813C1

CONNECTOR,ELECTRIC

CONNECTOR - male connection plug

1шт.

30

819971C92

SENSOR

SENSOR ASSEMBLY - seed

1шт.

31

841109C1

SHIELD

SHIELD -light

1шт.

32

22-284

LENS

STRAP - retaining, 7 inch long

7шт.

32

306132C1

CABLE TIE,14.5" L

CABLE STRAP STRAP - retaining, 14 inch long

2шт.

33

128817C1

BRUSH, COMMUTATOR

BRUSH BRUSH - sensor cleaning

1шт.

819972C91

SENSOR

KIT - granular shaft sensor

1шт.

34

818367C91

SENSOR

SENSOR ASSEMBLY - shaft rotation

1шт.

35

306132C1

CABLE TIE,14.5" L

CABLE STRAP STRAP - tie, nylon, 14 inch

4шт.

36

261-1448

SELF-TAP SCREW,Hex Hd, #8 x 1/2"

SCREW - self-tapping, pan head Phillips, No. 8 x 1/2 inch

2шт.

37

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

38

818368C91

MAGNET

MAGNET - feed shaft

1шт.

39

25629R1

SCREW - slotted pan head, No. 4 x 1/4 inch

2шт.

40

492-11004

LOCK WASHER,#4

Washer, Lock, #4

2шт.

41

225-14104

NUT,#4-40

NUT, #4-40

2шт.

42

818369C91

BRACKET

BRACKET - sensor feed shaft

1шт.

43

463-1086

SCREW,Hex Hd, #8-32 x 3/8"

SCREW - machine, hex, No. 8 x 3/8 inch

2шт.

44

495-21019

WASHER,#8

WASHER, #8

2шт.

45

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

46

225-14108

NUT,#8-32

NUT - hex, No. 8

2шт.

47

819973C1

CABLE

CABLE - adaptor (Used to convert cyclometer II consol to grain drill seed flow system, no longer available)

1шт.

47

126420A1R

REMAN-ELECT MONITOR

Reman Monitor Remanufactured Instrument Cluster

1шт.

47

126420A1C

CORE-MONITOR

Return Number

1шт.
