Запчасти Case IH 7100 (9-122) - CASTER WHEEL AXLE (09) - CHASSIS/ATTACHMENTS

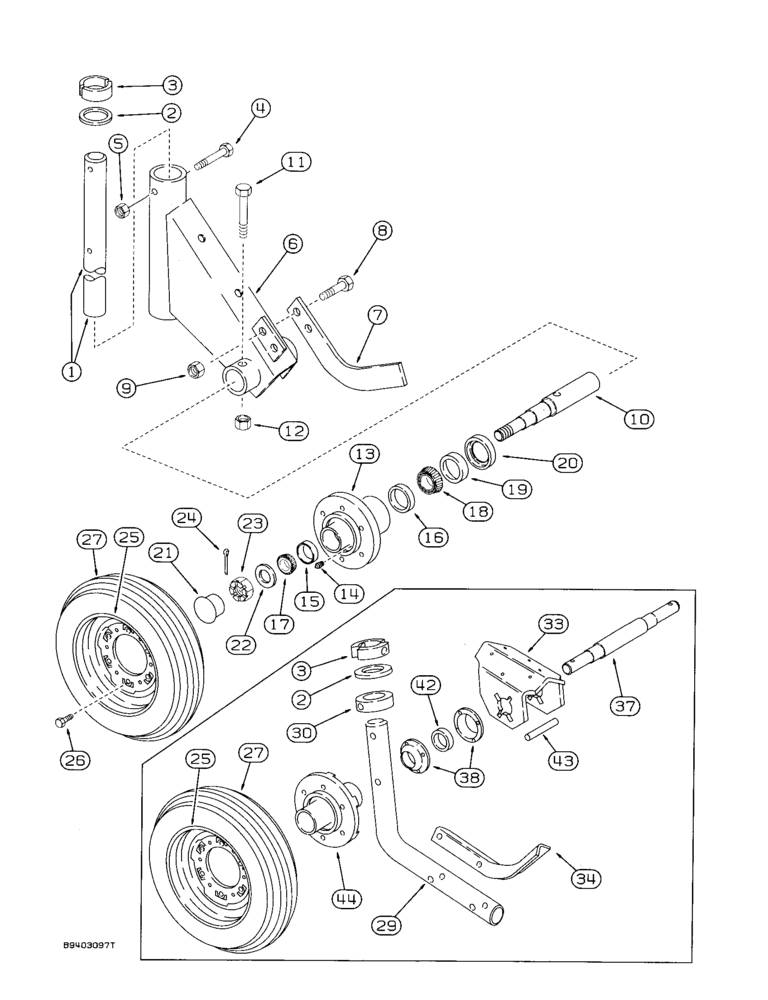

Схема запчастей Case IH 7100 - (9-122) - CASTER WHEEL AXLE (09) - CHASSIS/ATTACHMENTS
2
43
25
9
26
3
18
22
44
24
6
3
42
37
15
27
33
29
1
19
14
11
30
4
38
5
25
8
10
27
34
13
16
17
21
20
23
7
2
12

Артикул

Название

Примечание

Количество

1

1980602C1

PIN

- pivot

1шт.

2

495-81243

WASHER,2 5/16" x 3" x .120"

- flat, 2-5/16 x 3 x 1/8 inch

1шт.

3

819447C1

CLAMP

- shank locking

2шт.

4

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

5

231-4116

NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC, Grade 8

1шт.

6

1980606C1

SUPPORT

ASSEMBLY - caster wheel

1шт.

7

1980604C1

BAR

- rock kicker

1шт.

8

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

9

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

10

1980605C1

AXLE

SPINDLE - wheel

2шт.

11

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

12

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

13

810087C2

HUB

- wheel, six bolt mount

2шт.

14

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tapping

2шт.

15

651814R1

BEARING CUP

CUP - bearing, outer

2шт.

16

651817R1

BEARING CUP

CUP - bearing, inner

2шт.

17

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, outer

2шт.

17

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

18

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, inner

2шт.

19

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

2шт.

20

472222R1

SLEEVE

- oil seal

2шт.

21

B13280

HUB CAP

CAP - wheel hub

2шт.

22

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat hardened, 25/32 x 1-1/4 x 1/8 inch

2шт.

23

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

2шт.

24

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

25

481344R91

WHEEL

- steel, 14 x 8 KB, caster

2шт.

26

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

12шт.

27

REF

INSTRUCTION

TIRE - 8.5 L-14 4 ply, tubeless, purchase locally

2шт.

28

810768C1

VALVE

- tubeless tire, steel, not shown

2шт.

29

817043C1

SHANK

- axle

1шт.

30

816007C2

SPACER

BUSHING - axle shank lock collar

2шт.

31

818155C1

PIN

- locking collar bushing, not shown

1шт.

32

32-1016

COTTER PIN

PIN - cotter, 5/32 x 1 inch, not shown

1шт.

33

819449C1

CARRIER

- axle and bearing

1шт.

34

816557C2

ANGLE

- stone kicker

1шт.

35

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

- hex, 5/8 NC x 4 inch, Grade 8, not shown

4шт.

36

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8, not shown

4шт.

37

843369C1

AXLE

- wheel (Replaces axle 819448C2 by also ordering (2) bearings 818370C91)

1шт.

38

663562R1

FLANGE

- bearing

4шт.

39

413-8120

BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5

- hex, 1/2 NC x 7-1/2 inch, not shown

2шт.

40

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch, not shown

4шт.

41

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC, not shown

6шт.

42

818370C91

SPHERICAL BEARING,40mm ID x 80mm OD x 26.92mm W

- wheel (Replaces 819259C91 by also ordering axle, 843369C1 and (1) additional bearing, 818370C91)

2шт.

43

27797R1

SPACER,1/2" Pipe x 5"

- standard, 1/2 x 5 inch

2шт.

44

816559C3

HUB

- wheel

2шт.

45

816576C1

PIN

- caster wheel hub, not shown

2шт.

46

432-1216

COTTER PIN,3/16" x 1"

Not shown 3/16" x 1"

4шт.

Выбрано товаров: 47
