Запчасти Case IH 7100 (9-118) - DISK MARKER ATTACHMENT, MOUNTING BRACKETS (09) - CHASSIS/ATTACHMENTS

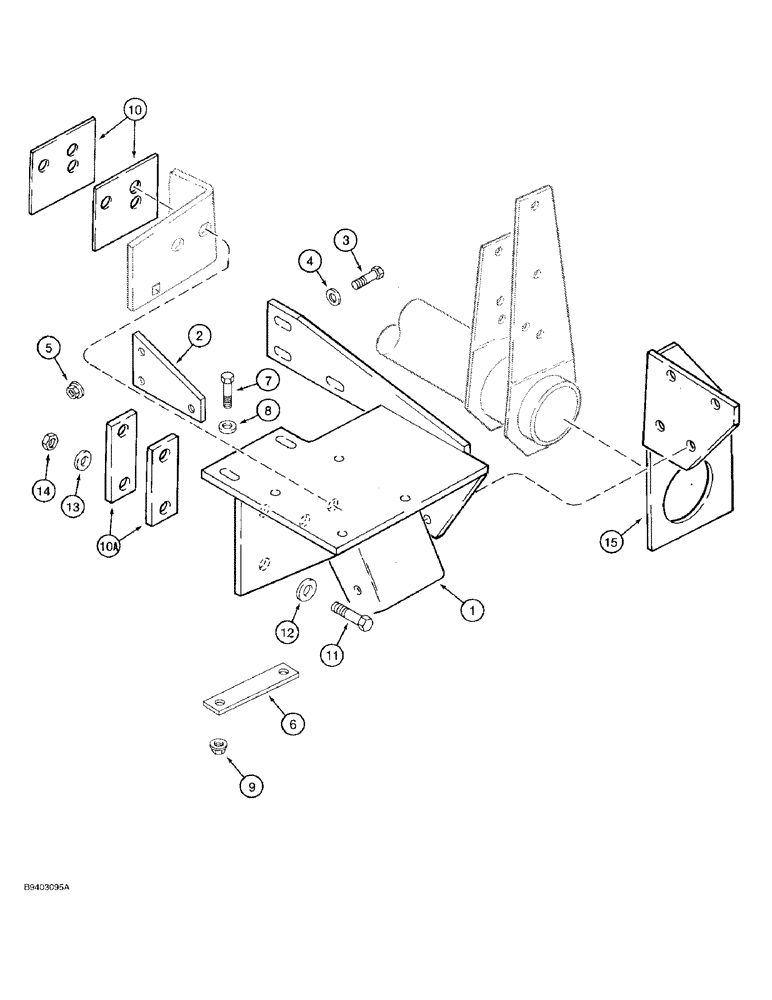

Схема запчастей Case IH 7100 - (9-118) - DISK MARKER ATTACHMENT, MOUNTING BRACKETS (09) - CHASSIS/ATTACHMENTS
15
14
1
5
13
2
11
10
6
9
12
7
8
4
3
10a

Артикул

Название

Примечание

Количество

1

1279670C1

BRACKET

- left (Shown)

1шт.

1

1279671C1

BRACKET

- right

1шт.

2

1279677C1

PLATE

- backup

2шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

6шт.

5

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

6шт.

6

1279675C1

BAR

- backup

2шт.

7

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

8

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

4шт.

9

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

- hex flange lock, 5/8 inch NC, grade 8

4шт.

10

819753C2

BAR

PLATE - spacer, drills with endwise transport, if used

2шт.

10a

1279676C1

BAR

PLATE - spacer, drills with endwise transport, if used

2шт.

11

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

8шт.

12

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 5/32 inch

4шт.

13

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

14

425-1012

NUT,3/4"-10, G5

8шт.

15

1279667C1

BRACKET

SUPPORT - hitch pivot tube, used when drill is equipped with endwise transport and disk marker attachment

1шт.

Выбрано товаров: 17
