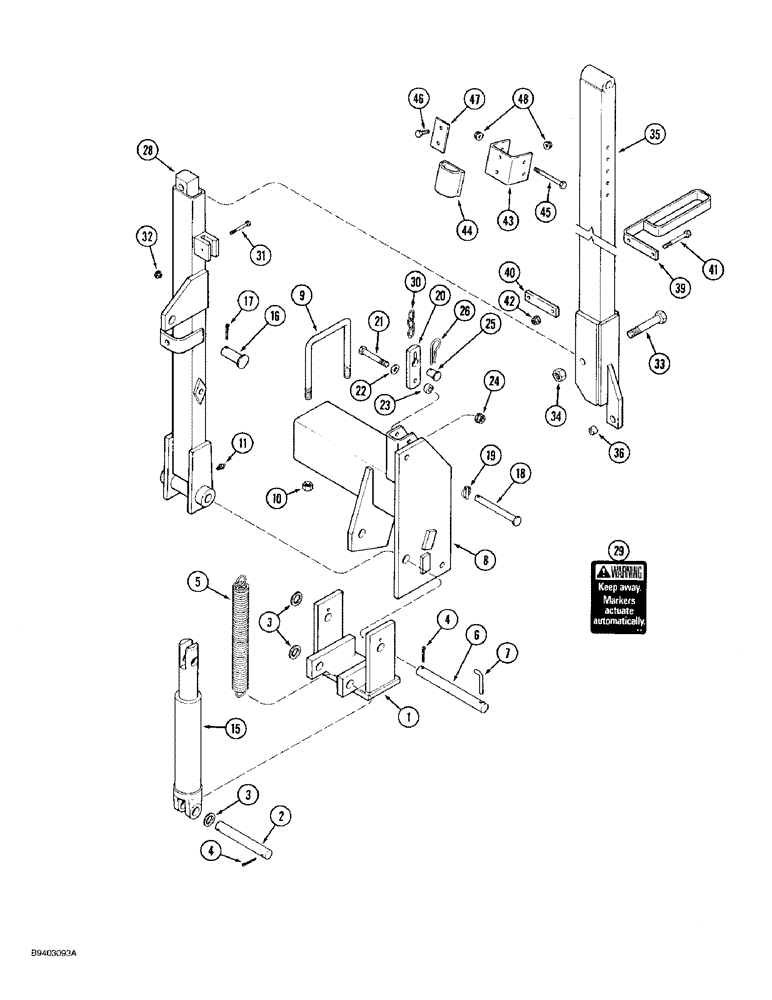

Запчасти Case IH 7100 (9-114) - DISK MARKER ATTACHMENT, HYDRAULIC FOLDING, 1279633C1 (09) - CHASSIS/ATTACHMENTS

1

1279633C1

HITCH BRACKET

BRACKET - cylinder pivot

2шт.

2

1279644C1

PIVOT PIN,25.4mm OD x 183mm L

PIN - cylinder pivot

2шт.

3

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

6шт.

4

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

6шт.

5

1277583C1

COIL SPRING

SPRING - pivot arm

2шт.

6

1279638C1

PIVOT PIN,25.4mm OD x 237mm L

PIN - marker pivot

2шт.

35

1279706C3

TUBE

ASSEMBLY - short (20-28 foot)

2шт.

7

813175C2

LOCK PIN,9.5mm OD

PIN - pivot lock

2шт.

8

1279624C1

HITCH BRACKET

BRACKET ASSEMBLY - pivot, left

1шт.

8

1279625C1

HITCH BRACKET

BRACKET ASSEMBLY - pivot, right (Dual markers)

1шт.

9

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-Bolt

4шт.

10

425-1010

NUT,5/8"-11, G5

8шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

1шт.

15

REF

INSTRUCTION

CYLINDER - marker lift (See Page 8-35 through 8-41)

2шт.

16

810751C1

PIN

- headed, 1 x 3-1/2 inch

2шт.

17

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

18

97488C1

HEADED PIN

PIN - clevis, 5/8 x 5-3/4 inch

2шт.

19

A33497

LINCH PIN,4.76mm OD Pin

PIN - snap lock, 3/16 inch diameter

2шт.

20

125789C1

BAR

- chain pivot

2шт.

21

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

2шт.

22

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

23

546587R1

SPACER

- 17/32 ID x 11/32 inch long

2шт.

24

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

25

439-11214

HEADED PIN,3/4" x 7/8", G2

PIN - clevis, 3/4 x 7/8 inch

4шт.

26

1980543C1

HAIR PIN COTTER

PIN - cotter, hair 5/32 inch diameter

4шт.

28

1279737C92

ARM

ASSEMBLY - row marker (Includes Ref. 29, shown)

1шт.

28

1279738C92

ARM

ASSEMBLY - row marker

1шт.

29

1254154C1

DECAL,Warning Keep Away Markers Actuate

- caution, marker (See Page 9-153)

1шт.

30

1279713C1

CHAIN (AG)

CHAIN - actuator, row marker (20-28 foot)

2шт.

30

1279714C1

CHAIN (AG)

CHAIN - actuator, row marker (28-34 foot)

2шт.

31

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

10шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

10шт.

33

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

2шт.

34

231-41312

LOCK NUT,3/4"-10, GB

NUT - hex lock, 3/4 inch NC

2шт.

35

1279722C3

TUBE

ASSEMBLY - long (28-34 foot, includes Ref. 36)

2шт.

36

1960316C1

SHEAR BOLT BUSHING

BUSHING - marker arm

1шт.

39

90817C1

GUIDE

- actuator chain

2шт.

40

90923C1

PLATE

STRAP - chain guide

4шт.

41

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

42

231-4116

NUT,3/8"-16, GB

NUT - hex flange lock, 3/8 inch NC

4шт.

43

1279835C2

CHANNEL

BRACKET - stop

2шт.

44

1279725C1

STOP

- rubber, marker arm, if used

2шт.

45

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

4шт.

46

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, if used

4шт.

47

1976546C1

BAR

BRACKET - marker bumper backup, if used

2шт.

48

231-4116

NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC, Grade 8

8шт.
