Запчасти Case IH 7100 (9-112) - DISK MARKER, CABLE CONTROLLED TYPE (09) - CHASSIS/ATTACHMENTS

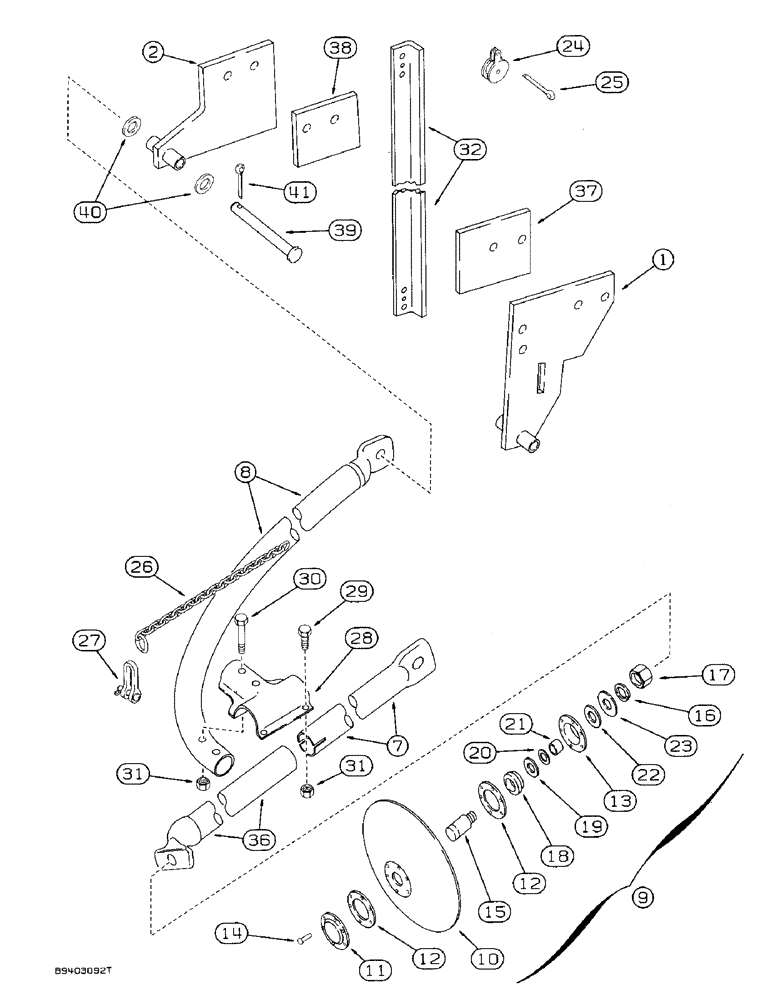

Схема запчастей Case IH 7100 - (9-112) - DISK MARKER, CABLE CONTROLLED TYPE (09) - CHASSIS/ATTACHMENTS
37
40
13
31
24
9
41
31
26
22
11
25
28
20
19
10
16
32
17
23
1
29
7
36
39
12
18
30
38
14
27
8
15
12
21
2

Артикул

Название

Примечание

Количество

1

818325C1

PIVOT

- marker front

1шт.

2

818318C1

PIVOT

- marker rear

1шт.

3

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch, not shown

4шт.

4

425-1012

NUT,3/4"-10, G5

(Not shown) 3/4"-10, G5

4шт.

5

492-11075

LOCK WASHER,3/4"

not shown 3/4"

4шт.

6

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 5/32 inch, not shown

2шт.

7

818330C1

TUBE,2450 mm Length

- marker pivot front

1шт.

8

818328C1

TUBE,2725, 85 mm Length

- marker pivot rear

1шт.

9

815746C92

DISC

ASSEMBLY - marker

1шт.

10

603004R2

PLOW DISC

DISC - marker

1шт.

11

602990R1

CAP

- disc

1шт.

12

602992R2

GASKET,0.79mm Thk

- bearing retainer

2шт.

13

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

- bearing

1шт.

14

45-48

RIVET,But Hd, 1/4" x 1/2"

- binding head, 1/4 x 1/2 inch

6шт.

15

602987R1

BOLT

BOLT - disc mounting

1шт.

16

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

17

425-1110

NUT,5/8"-18, G5

1шт.

18

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

- disc

1шт.

19

602994R1

FLANGE

- seal

1шт.

20

464628R1

SEAL

- dirt (Replaces 602993R1)

1шт.

21

602988R1

SPACER

- seal retainer

1шт.

22

495-81032

WASHER,18.26mm ID x 31.75mm OD x 1.7mm Thk

- flat, 23/32 x 1-1/4 x 3/64 inch

1шт.

23

495-81033

WASHER,18.26mm ID x 38.1mm OD x 3.4mm Thk

- flat, 23/32 x 1-1/2 x 7/64 inch

1шт.

24

819043C91

PULLEY

- lift cable

2шт.

25

432-2448

COTTER PIN,3/8" x 3"

Pin, Split (Cotter), (Pulley to cable angle) 3/8" x 3"

2шт.

26

CHAIN - marker hold-up (Order 17 links, approx 36 inch of 210 tension chain double loop or twin loop)

1шт.

27

819167C1

SHACKLE

- chain, 1/4 inch

1шт.

28

818309C1

TEE

- marker tube junction

2шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

30

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

31

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

6шт.

32

818324C1

ANGLE

- cable

1шт.

33

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch, not shown

2шт.

34

425-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

2шт.

35

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Not shown 5/8"

2шт.

36

818316C1

TUBE,2350, 33 mm Length

- marker disc

1шт.

37

817493C2

BAR

- spacer

1шт.

38

819753C2

BAR

- spacer

1шт.

39

439-51272

HEADED PIN,3/4" x 4 1/2", G5

PIN - headed, 3/8 x 3 inch

2шт.

40

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 5/32 inch, not shown

6шт.

41

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

Выбрано товаров: 41
