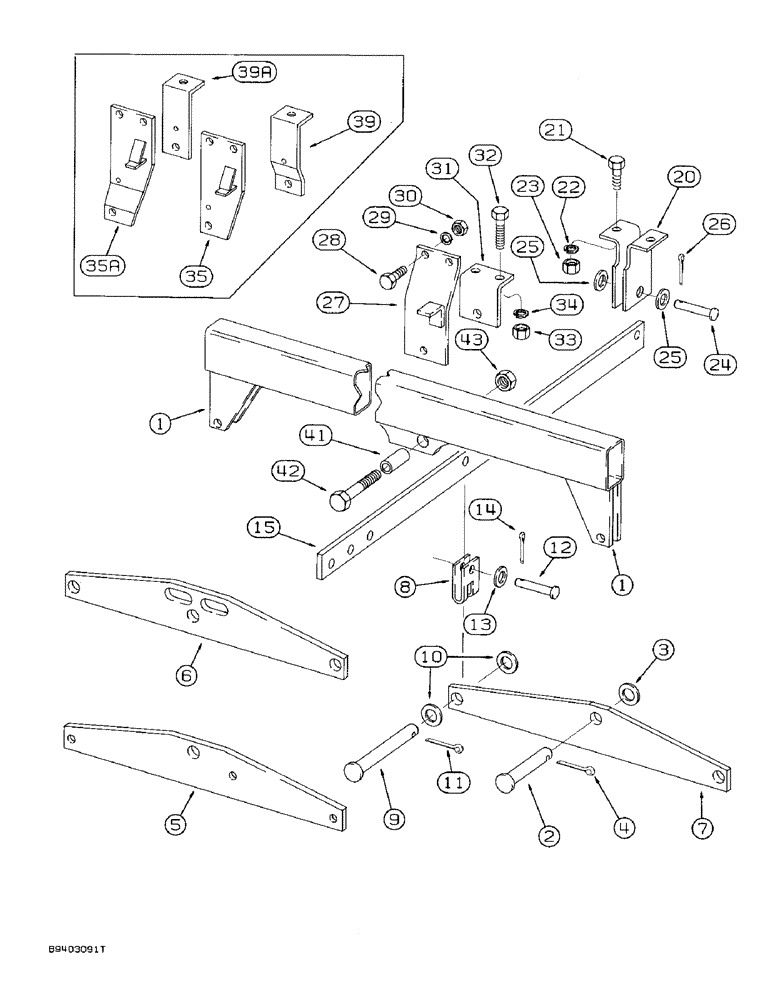

Запчасти Case IH 7100 (9-110) - PRESS WHEEL GANG REAR SUSPENSION (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
817060C1
TUBE
- equalizer, for 10 x 14
2шт.
1
817059C1
TUBE
- equalizer, for 14 x 10
2шт.
1
818165C1
TUBE
- equalizer, for 18 x 8
2шт.
1
843173C1
TUBE,1298 mm L
- equalizer, for 16 x 10
2шт.
1
843174C1
TUBE,1298 mm L
- equalizer, for 14 x 12
2шт.
2
540851R1
HEADED PIN,1/2" x 1 7/8", G5
PIN - headed, 3/4 x 1-7/8 inch
4шт.
3
495-81041
WASHER,25/32" x 1 1/2" x .060"
- flat, 25/32 x 1-1/2 x 1/16 inch
4шт.
4
432-1624
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1-1/2"
4шт.
5
817571C1
BAR
- evener, for 12 x 10
2шт.
5
818252C1
BAR
- evener, for 10 x 12
2шт.
6
817169C1
BAR
- center evener, for 10 x 14
1шт.
6
818241C1
BAR
- center evener, for 14 x 10
1шт.
6
818243C1
BAR
- center evener, for 18 x 8
1шт.
6
817082C1
BAR
- center evener, for 16 x 10
1шт.
6
817022C1
BAR
- center evener, for 14 x 12
1шт.
7
818240C1
BAR
- outer evener, for 14 x 10
2шт.
7
818242C1
BAR
- outer evener, for 18 x 8
2шт.
7
817167C1
BAR
- outer evener, for 10 x 14
2шт.
7
817083C1
BAR
- outer evener, for 16 x 10
2шт.
7
817021C1
BAR
- outer evener, for 14 x 12
2шт.
7
816601C1
BAR
- outer evener, for 8 x 18
2шт.
7
843167C1
BAR
- outer evener, for 10 x 14 hillside
2шт.
8
819143C1
CLEVIS
- drawbar
4-6шт.
9
439-5840
HEADED PIN,1/2" x 2 1/2"
PIN - headed, 1/2 x 2-1/2 inch
4-6шт.
10
495-81024
WASHER,17/32" x 1 1/4" x .060"
- flat, 17/32 x 1-1/4 x 3/64 inch
8-12шт.
12
427-10161
CLEVIS PIN,15.88mm OD x 40.89mm L
PIN - clevis, 5/8 x 1-5/8 inch
4-6шт.
13
495-81027
WASHER,21/32" x 1 1/2" x .120"
- flat, 21/32 x 1-1/2 x 7/64 inch
4-6шт.
14
432-820
COTTER PIN,1/8" x 1 1/4"
PIN, SPLIT (COTTER), 1/8" x 1-1/4"
4-6шт.
15
817019C1
BAR
DRAWBAR - gang
4-6шт.
16
818188C1
ANGLE
- gang drawbar, for 12 x 10 and 16 x 10, not shown
1шт.
17
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
Not shown Hex, 1/2"-13 x 1", G5, Full Thd
2шт.
18
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, , Not shown 1/2"
2шт.
19
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex, Not shown 1/2"-13, G5
2шт.
20
817017C1
BRACKET
- gang drawbar
3-6шт.
21
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
6-10шт.
22
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
6-10шт.
23
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
6-10шт.
24
439-51028
HEADED PIN,5/8" x 2"
PIN - headed, 5/8 x 1-3/4 inch
3-5шт.
25
495-81027
WASHER,21/32" x 1 1/2" x .120"
- flat, 21/32 x 1-1/2 x 7/64 inch
6-10шт.
26
432-1224
COTTER PIN,3/16" x 1-1/2"
3/16" x 1 1/2"
3-5шт.
27
817437C1
SUPPORT
- equalizer tube outer, for 10 x 14, 14 x 10, 18 x 8, 16 x 10, and 14 x 12, not shown
2шт.
28
413-1020
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5
4шт.
29
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
30
425-1010
NUT,5/8"-11, G5
4шт.
31
817023C1
SUPPORT
- equalizer tube inner, for 10 x 14, 14 x 10, 18 x 8, and 16 x 10
2шт.
31
843175C1
SUPPORT TUBE,120 mm L
SUPPORT - equalizer tube inner, for 14 x 12, not shown
2шт.
33
425-1010
NUT,5/8"-11, G5
4шт.
32
413-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
4шт.
33
425-1010
NUT,5/8"-11, G5
4шт.
34
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
35
818259C1
SUPPORT
- evener tube inner, for 18 x 8
2шт.
35a
843338C1
SUPPORT TUBE
SUPPORT - equalizer tube inner, for 12 x 10 and 10 x 12
2шт.
36
413-1020
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5
Not shown Hex, 5/8"-11 x 1 1/4", G5, Full Thd
10шт.
37
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, , Not shown 5/8"
12шт.
38
425-1010
NUT,5/8"-11, G5
Not shown 5/8"-11, G5
12шт.
39
818102C1
SUPPORT
- evener tube outer, for 18 x 8
2шт.
39a
843339C1
SUPPORT,218, 50 mm L
- evener tube outer, for 12 x 10 and 10 x 12
2шт.
40
413-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
Not shown Hex, 5/8"-11 x 1 1/2", G5, Full Thd
2шт.
41
843148C1
SPACER
- equalizer tube pivot, for 16 x 10 and 14 x 12
2шт.
42
426-1260
BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8
- hex, 3/4 NC x 3-3/4 inch, Grade 8
2шт.
43
231-41312
LOCK NUT,3/4"-10, GB
NUT - hex, self-locking, 3/4 inch NC
2шт.
Выбрано товаров: 62
