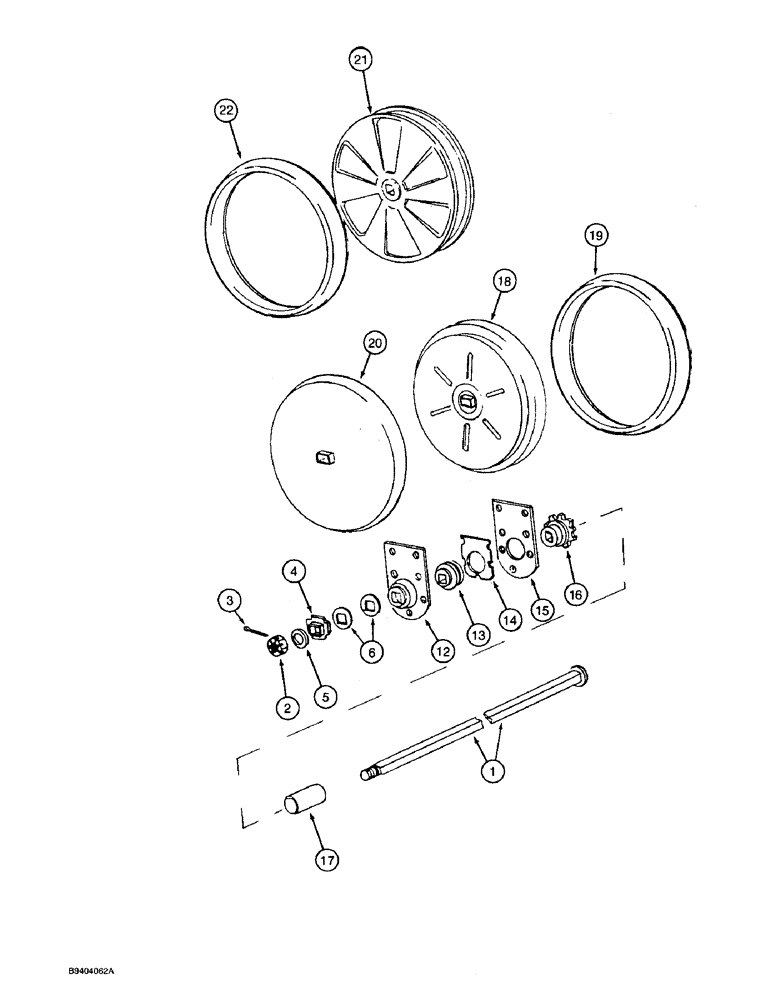

Запчасти Case IH 7100 (9-106) - PRESS WHEEL GANG (09) - CHASSIS/ATTACHMENTS

1

817380C3

BOLT,1373.20mm

- gang arbor left and right, 12 x 10

2шт.

1

817027C3

BOLT,Wheel, 1" - 8 x 46.0"

- gang arbor left and right, 16 x 10

2шт.

1

817028C3

BOLT,Wheel, 1" - 8 x 56.0"

- gang arbor left and right, 16 x 10

1шт.

1

817178C3

BOLT,1" - 8

- gang arbor left and right, 10 x 12

2шт.

1

817056C3

BOLT,1" - 8

- gang arbor left and right, 14 x 12

2шт.

1

817057C3

BOLT,1" - 8

- gang arbor left and right, 14 x 12

1шт.

2

425-1216

SLOTTED NUT,Hex, 1"-8, G5

2-3шт.

3

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

2-3шт.

4

816154C1

SQ HOLE WASHER

- lock, tab (Machines built prior to August 1981)

3шт.

5

496-81008

WASHER,1.06" ID x 1.88" OD x 0.13" Thk

- flat, 1-1/16 x 1-7/8 x 1/8 inch, hardened (Machines built August 1981 and after)

1шт.

6

1279012C1

SQ HOLE WASHER,32.5mm ID x 70mm OD x 3mm Thk

- press wheel spacer

1шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Not shown Hex, 1/2"-13 x 1 1/2", G5, Full Thd

8-12шт.

8

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch, not shown

12-18шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Not shown 1/2"

12-18шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Not shown 1/2"-13, G5

12-18шт.

11

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

Not shown Flg, USR, 1/2"-13

8-12шт.

12

819897C1

FLANGE

- gang bearing

4-6шт.

13

818112C91

BALL BEARING,33.02mm ID x 84.95mm OD x 36.51mm W

- press wheel

4-6шт.

14

819951C1

GASKET

- gang bearing

8-12шт.

15

819896C1

RETAINER

- gang bearing

4-6шт.

16

603902R2

SPROCKET ASSY.

SPROCKET - main drive, 10 tooth

1шт.

17

843275C1

SPACER

- gang, 15/32 inch (11.9 mm), for 14 x 12

2шт.

17

843277C1

SPACER

- gang, 9/16 inch (14.3 mm), for 14 x 12

1шт.

17

843278C1

SPACER

- gang, 39/64 inch (15.5 mm), for 14 x 12

1шт.

17

843279C1

SPACER

- gang, 45/64 inch (17.9 mm), for 14 x 12

1шт.

17

843280C1

SPACER

- gang, 15/16 inch (23.8 mm), for 12 x 10 and 14 x 12

2шт.

17

843280C1

SPACER

- gang, 15/16 inch (23.8 mm), for 10 x 12

2шт.

17

843281C1

SPACER

- gang, 1-5/32 inch (29.4 mm), for 14 x 12

1шт.

17

843286C1

SPACER

- gang, 1-7/16 inch (36.5 mm), for 12 x 10 and 10 x 12

2шт.

17

843286C1

SPACER

- gang, 1-7/16 inch (36.5 mm), for 16 x 10 and 14 x 12

4шт.

17

843288C1

SPACER

- gang, 1-11/16 inch (42.9 mm), for 14 x 12

1шт.

17

843290C1

SPACER

- gang, 1-15/16 inch (49.2 mm), for 10 x 12

1шт.

17

843290C1

SPACER

- gang, 1-15/16 inch (49.2 mm), for 16 x 10

6шт.

17

843291C1

SPACER

- gang, 1-11/64 inch (55 mm), for 12 x 10

2шт.

17

843291C1

SPACER

- gang, 1-11/64 inch (55 mm), for 10 x 12

1шт.

17

843292C1

SPACER

- gang, 2-7/16 inch (61.9 mm), for 12 x 10 and 14 x 12

1шт.

17

843295C1

SPACER

- gang, 2-3/4 inch (70.1 mm), for 10 x 12

2шт.

17

843298C1

SPACER

- gang, 2-63/64 inch (75.8 mm), for 14 x 12

2шт.

17

843299C1

SPACER

- gang, 3-13/64 inch (81.2 mm), for 10 x 12 and 14 x 12

1шт.

17

843300C1

SPACER

- gang, 3-7/16 inch (87.3 mm), for 10 x 12

1шт.

17

843300C1

SPACER

- gang, 3-7/16 inch (87.3 mm), for 14 x 12

9шт.

17

843305C1

SPACER

- gang, 3-7/8 inch (98.3 mm), for 10 x 12

2шт.

17

843307C1

SPACER

- gang, 4-1/16 inch (102.8 mm), for 14 x 12

1шт.

17

843308C1

SPACER

- gang, 4-13/64 inch (106.6 mm), for 10 x 12 and 14 x 12

1шт.

17

843311C1

SPACER

- gang, 4-59/64 inch (125 mm), for 12 x 10

5шт.

17

843314C1

SPACER

- gang, 5-31/64 inch (139.2 mm), for 16 x 10

6шт.

18

816189C2

WHEEL,501.65mm OD x 82.55mm W

ASSEMBLY - 3 x 20 inch, shielded press (Quantity of 1 per furrow opener)

1шт.

19

816195C2

TYRE/TIRE

TIRE - 3 x 20 inch, press wheel, oval (Quantity of 1 per wheel, 816189C2)

1шт.

20

605082R93

WHEEL

- 2-1/4 x 20 inch, shielded round rim (Quantity of 1 per furrow opener)

1шт.

21

841171C1

WHEEL

ASSEMBLY - 3 x 20 inch, heavy duty (Quantity of 1 per furrow opener)

1шт.

22

843188C1

TYRE/TIRE

TIRE - zero pressure heavy duty (Quantity of 1 per wheel, 841171C1)

1шт.
