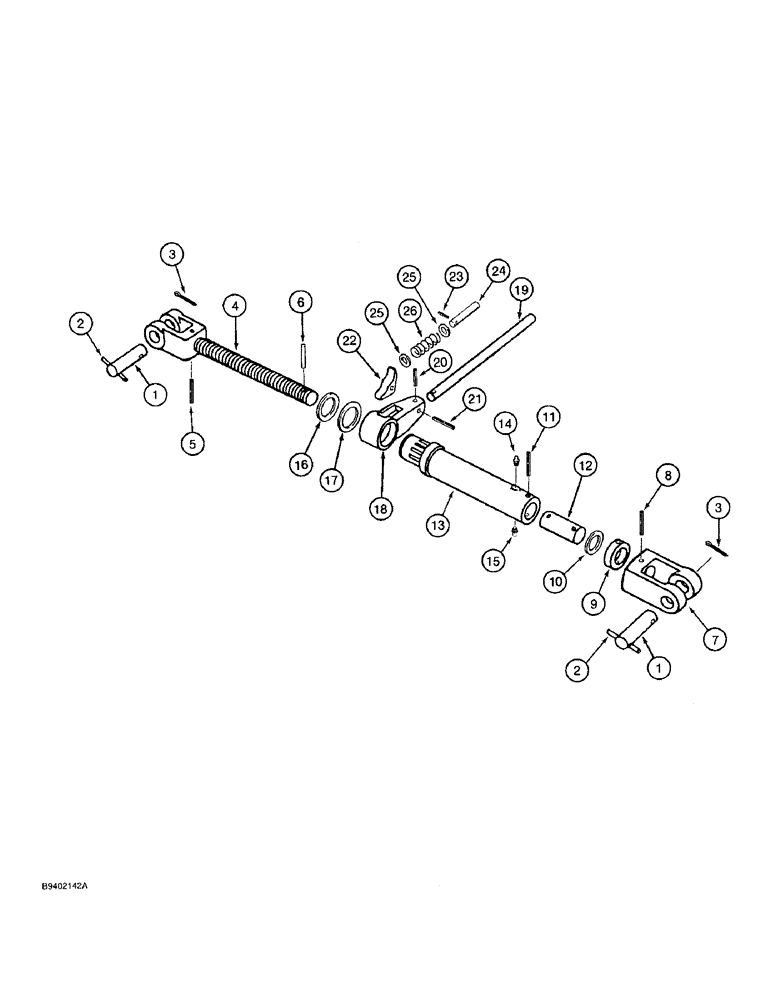

Запчасти Case IH 7100 (9-104) - HAND LIFT (09) - CHASSIS/ATTACHMENTS

1

591104R1

PIN

- locking

2шт.

2

443186

GROOVED PIN,3/8" x 2 3/4", Type E

PIN - roll, 3/8 x 2-3/4 inch

2шт.

3

1978739C1

PIN

- cotter

2шт.

4

591117R91

CAPSCREW

HEAD ASSEMBLY - adjusting screw

1шт.

5

438-32432

PIN,9.53mm OD x 50.8mm L

1шт.

6

591101R1

PIN

- stop

1шт.

7

591110R1

YOKE

- adjusting tube

1шт.

8

438-32432

PIN,9.53mm OD x 50.8mm L

1шт.

9

591474R1

COLLAR

- anchor pin

1шт.

10

50738V

THRUST BEARING

- anchor pin thrust

1шт.

11

438-32428

PIN,3/8" x 1 3/4", Coiled

1шт.

12

591105R1

ANCHOR

PIN - adjusting screw anchor

1шт.

13

591112R1

TUBE,1.437" ID, 2.5" OD, 12.625" Length

- lift adjusting

1шт.

14

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch

1шт.

15

445671

PLUG,Sq Hd, 1/8"-27 NPTF

- square head, 1/8 inch NPT

1шт.

16

591116R1

SNAP RING,#200, 1.909", Ext Spiral

RING - adjusting tube

1шт.

17

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.

18

591109R1

SUPPORT

- ratchet lever

1шт.

19

591103R1

ROD

- rachet lever arm

1шт.

20

438-31020

PIN,5/32" x 1 1/4", Coiled

1шт.

21

438-31628

PIN,1/4" x 1 3/4", Coiled

1шт.

22

591108R1

PAWL

RATCHET - dog

1шт.

23

438-31012

PIN,5/32" x 3/4", Coiled

1шт.

24

591102R1

PIN

- ratchet arm rod

1шт.

25

495-81008

WASHER,.469" x 3/4" x .060"

- flat, 15/32 x 3/4 x 1/16 inch

2шт.

26

M296

SPRING

- ratchet

1шт.
