Запчасти Case IH 7100 (9-100) - HITCH BUMPER PLATE & STABILIZER, FOR DRILLS WITH MULTIPLE HITCHES , MACHINES BUILT 1980 THROUGH 1984 (09) - CHASSIS/ATTACHMENTS

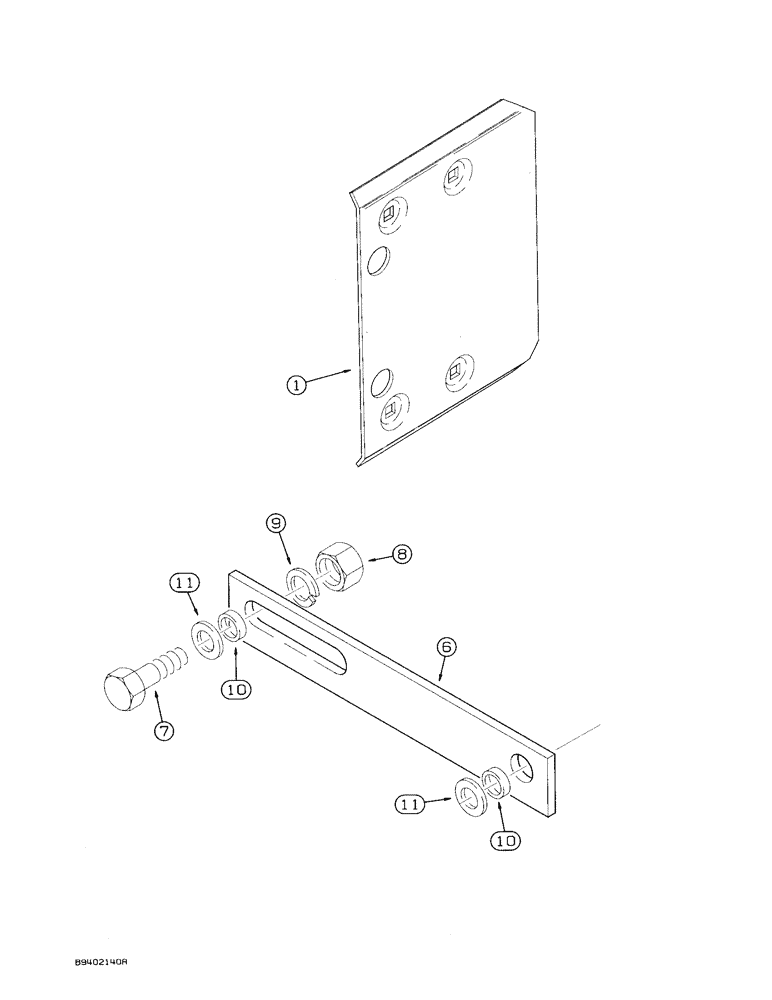

Схема запчастей Case IH 7100 - (9-100) - HITCH BUMPER PLATE & STABILIZER, FOR DRILLS WITH MULTIPLE HITCHES , MACHINES BUILT 1980 THROUGH 1984 (09) - CHASSIS/ATTACHMENTS
8
6
11
10
9
11
10
7
1

Артикул

Название

Примечание

Количество

1

816373C1

PLATE

- bumper (Two drill hitch)

2шт.

For service replacement of bumper plate 816373C1, order bumper plate left, 1268392C1 and bumper plate right, 1268393C1 See Figure 9-102.

1шт.

1

816373C1

PLATE

- bumper (Three drill hitch)

4шт.

For service replacement of bumper plate 816373C1, order bumper plate left, 1268392C1 and bumper plate right, 1268393C1 See Figure 9-102.

1шт.

1

816373C1

PLATE

- bumper (Four drill hitch)

6шт.

For service replacement of bumper plate 816373C1, order bumper plate left, 1268392C1 and bumper plate right, 1268393C1 See Figure 9-102.

1шт.

2

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch, not shown (Quantity of 2 per plate)

1шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, not shown (Quantity of 2 per plate)

1шт.

4

425-106

NUT,3/8"-16, Cl 5

Not shown (Quantity of 1 per bolt) 3/8"-16, G5

1шт.

5

492-11038

LOCK WASHER,3/8"

not shown (Quantity of 1 per bolt) 3/8"

1шт.

6

816374C1

BAR

- stabilizer, hitch (Two drill hitch)

1шт.

6

816374C1

BAR

- stabilizer, hitch (Three drill hitch)

2шт.

6

816374C1

BAR

- stabilizer, hitch (Four drill hitch)

3шт.

7

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5 (Quantity of 2 per bar)

1шт.

8

425-1012

NUT,3/4"-10, G5

(Qty of 1 per bolt) 3/4"-10, G5

1шт.

9

492-11075

LOCK WASHER,3/4"

(Quantity of 1 per bolt) 3/4"

1шт.

10

816375C1

SPACER

- stabilizer bar (Quantity of 2 per bar)

1шт.

11

597176R1

WASHER

- stabilizer bar (Quantity of 2 per bar)

1шт.

Выбрано товаров: 18
