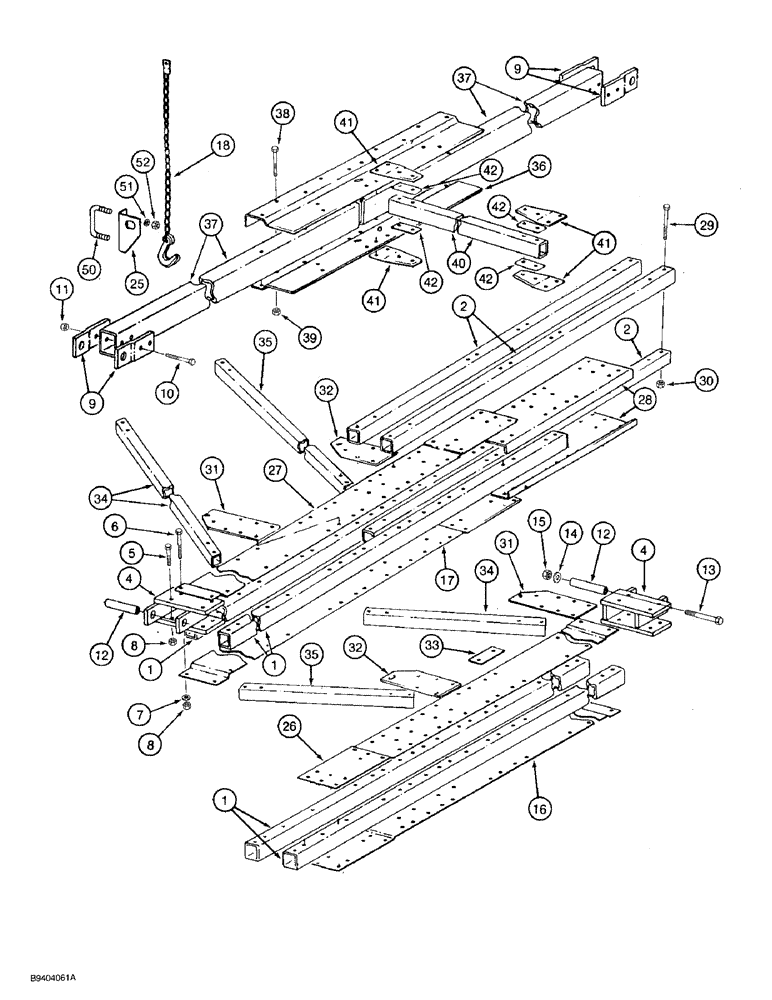

Запчасти Case IH 7100 (9-096) - CENTER HITCH AND STABILIZER, FOUR DRILL, MACHINES BUILT 1985 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

819874C2

TUBE

BRACE - hitch main frame front

4шт.

2

818118C2

TUBE,2021 mm Length

BRACE - center reinforcing

3шт.

3

90811C1

BAR

- spacer, center of front brace, not shown

1шт.

4

819889C1

PIVOT

- outer drill frame

2шт.

5

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

6

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

4шт.

7

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

4шт.

8

425-1010

NUT,5/8"-11, G5

8шт.

9

841130C1

BAR

- frame connecting

4шт.

10

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

4шт.

11

425-1010

NUT,5/8"-11, G5

4шт.

12

1279421C1

SPACER

- pivot

2шт.

13

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

2шт.

14

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

4шт.

15

425-1012

NUT,3/4"-10, G5

2шт.

16

841078C2

SUPPORT

- front tube lower left

1шт.

17

841077C2

TUBE

SUPPORT - front tube lower right

1шт.

18

819901C2

CHAIN (AG)

CHAIN - frame support

2шт.

19

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, Grade 8, not shown

2шт.

20

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, not shown

2шт.

21

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch, Not shown

1шт.

22

492-11038

LOCK WASHER,3/8"

not shown 3/8"

1шт.

23

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64", Not shown

2шт.

24

425-106

NUT,3/8"-16, Cl 5

Not shown 3/8"-16, G5

1шт.

25

841153C1

ANGLE

- frame support chain

2шт.

26

841077C2

TUBE

SUPPORT - front tube upper left

1шт.

27

841078C2

SUPPORT

- front tube upper right

1шт.

28

819879C2

SUPPORT

- front extension

2шт.

29

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

- hex, 5/8 NC x 7 inch

8шт.

30

425-1010

NUT,5/8"-11, G5

8шт.

31

819876C2

BAR

- diagonal brace tube outer

4шт.

32

841082C1

BAR

- diagonal brace tube inner

4шт.

33

843179C1

BAR

- center reinforcing tube spacer (For 12-1/2 foot drills)

2шт.

34

819882C2

TUBE,2171.7 mm Length

- diagonal brace outer

2шт.

35

819883C1

TUBE,101.5" Length

- diagonal brace inner

2шт.

36

841137C1

SUPPORT

- rear extension

2шт.

37

841133C1

TUBE,2742 mm Length

- hitch main frame rear

2шт.

38

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

6шт.

39

425-1010

NUT,5/8"-11, G5

6шт.

40

841132C1

TUBE

BRACE - hitch center connecting

1шт.

41

841134C1

BAR

PLATE - center hitch tube

4шт.

42

841142C1

BAR

- tube mounting spacer (Continued from previous page)

8шт.

43

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch, not shown

12шт.

44

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Not shown Hex, 5/8"-11 x 4 1/2", G5

18шт.

45

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

Not shown Hex, 5/8"-11 x 5", G5

4шт.

46

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

- hex, 5/8 NC x 7 inch, not shown

8шт.

47

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

(12 foot drills), Not shown Hex, 5/8"-11 x 4 1/2", G5

4шт.

48

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch, not shown

12шт.

49

425-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

46шт.

50

812659C1

BOLT,5/8" - 11 x 4.4"

U-BOLT - support chain angle

2шт.

51

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

52

425-1010

NUT,5/8"-11, G5

4шт.
