Запчасти Case IH 7100 (9-094) - FRONT HITCH, FOUR DRILL, MACHINES BUILT 1985 AND AFTER, WITH HITCH P.I.N. 501 AND AFTER (09) - CHASSIS/ATTACHMENTS

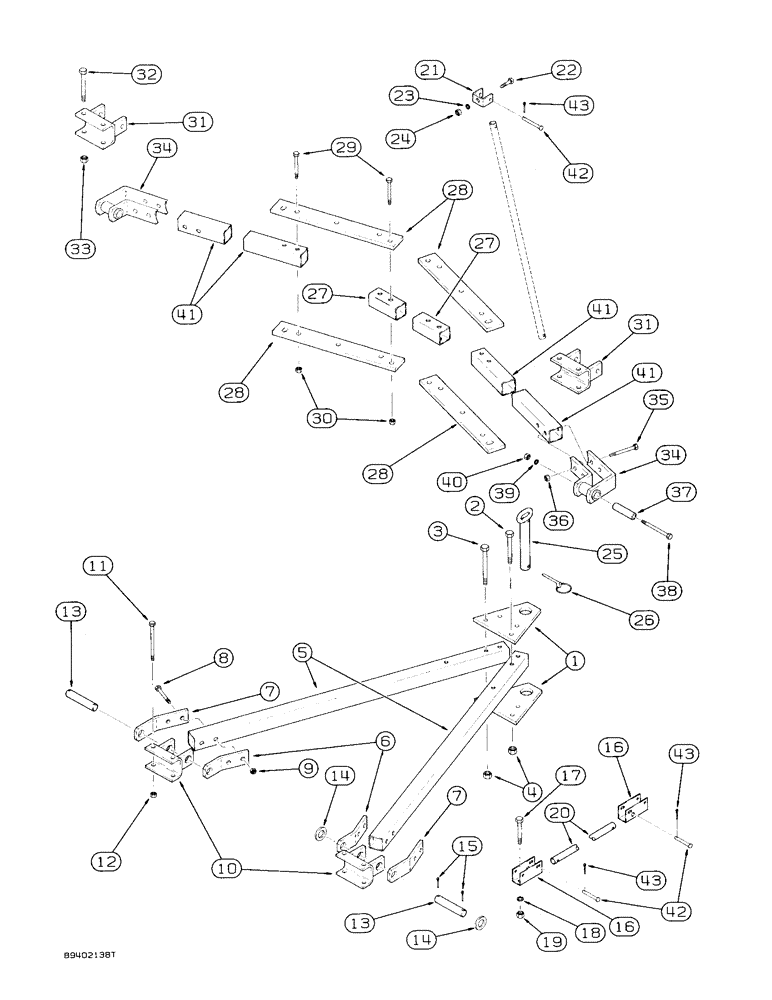

Схема запчастей Case IH 7100 - (9-094) - FRONT HITCH, FOUR DRILL, MACHINES BUILT 1985 AND AFTER, WITH HITCH P.I.N. 501 AND AFTER (09) - CHASSIS/ATTACHMENTS
16
17
38
13
11
3
18
9
14
32
28
36
5
43
28
37
24
8
19
31
35
41
34
14
27
10
43
16
41
21
43
2
23
7
42
41
26
27
6
13
31
40
1
28
4
7
12
20
15
25
30
34
42
22
33
39
29

Артикул

Название

Примечание

Количество

1

819892C1

PLATE

- hitch

2шт.

2

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

3шт.

3

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

4

425-1010

NUT,5/8"-11, G5

4шт.

5

819684C1

TUBE,2245 mm Length

FRAME - hitch

2шт.

6

819894C1

SUPPORT

- hitch tube inner

2шт.

7

819895C1

SUPPORT

- hitch tube outer

2шт.

8

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

9

425-1010

NUT,5/8"-11, G5

4шт.

10

819770C1

PIVOT

- hitch tube

2шт.

11

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

- hex, 5/8 NC x 7 inch

4шт.

12

425-1010

NUT,5/8"-11, G5

4шт.

13

819724C1

PIN

- pivot

4шт.

14

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 7/64 inch

6шт.

15

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

16

819018C2

CHANNEL

- transport tube support

2шт.

17

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

18

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

19

425-1010

NUT,5/8"-11, G5

1шт.

20

1279802C1

SUPPORT TUBE,26.7 mm OD, 2130 mm Length

TUBE - hitch transport

1шт.

21

819010C1

YOKE

- tube support

1шт.

22

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

1шт.

23

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

24

425-1012

NUT,3/4"-10, G5

1шт.

25

817771C1

PIN

- hitch

1шт.

26

621006C1

PIN

- lock

1шт.

27

1279392C1

TUBE,1074 mm Length

- hitch tie

1шт.

28

1279390C1

STRAP

- hitch tie tube

4шт.

29

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

10шт.

30

425-1010

NUT,5/8"-11, G5

10шт.

31

1279640C1

PIVOT

- hitch bracket

2шт.

32

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

33

425-1010

NUT,5/8"-11, G5

4шт.

34

1279647C1

BRACKET

- brace pivot

2шт.

35

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

36

425-1010

NUT,5/8"-11, G5

4шт.

37

1279643C1

BUSHING

- pivot

2шт.

38

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- hex, 5/8 NC x 6-1/2 inch

2шт.

39

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

40

425-1010

NUT,5/8"-11, G5

2шт.

41

1279416C1

TUBE,1720.5 mm Length

- hitch brace

2шт.

42

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

PIN - headed, 3/8 x 3-1/4 inch

3шт.

43

1978737C1

COTTER PIN,Int, 1/8" x 49mm

PIN - hair

3шт.

Выбрано товаров: 43
