Запчасти Case IH 7100 (9-090) - HEAVY DUTY HITCH, FOUR DRILL, 819892C2, MACHINES BUILT 1980 THROUGH 1984 (09) - CHASSIS/ATTACHMENTS

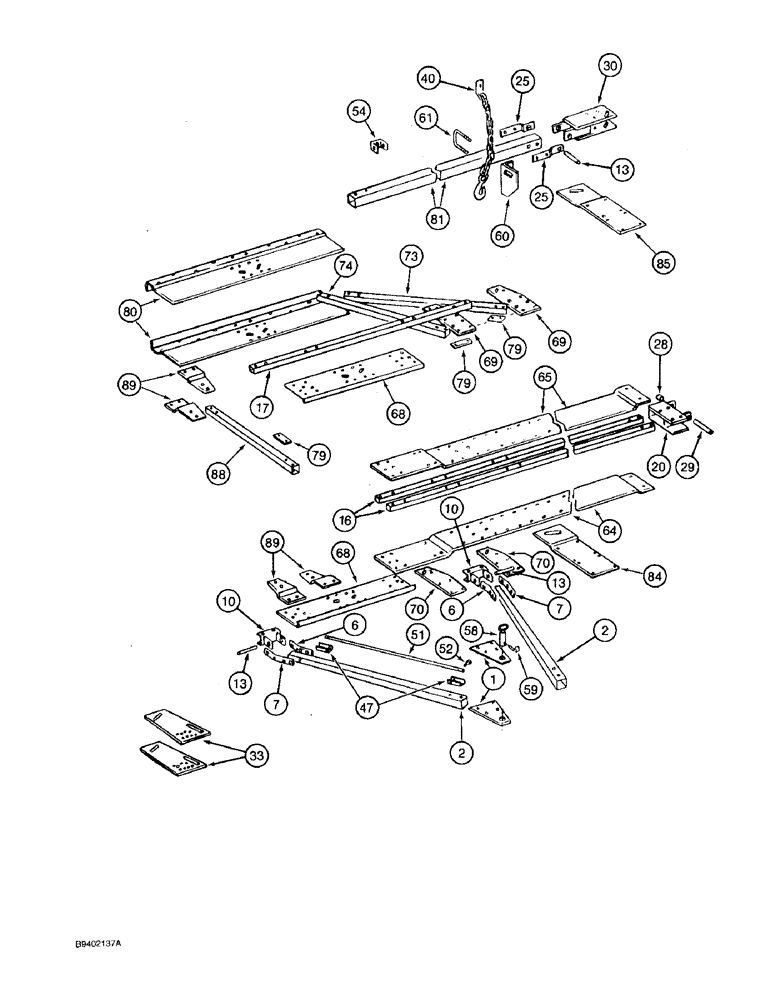

Схема запчастей Case IH 7100 - (9-090) - HEAVY DUTY HITCH, FOUR DRILL, 819892C2, MACHINES BUILT 1980 THROUGH 1984 (09) - CHASSIS/ATTACHMENTS
13
88
69
65
6
25
79
84
52
20
30
10
68
61
79
10
89
64
28
33
79
40
7
54
51
6
81
68
60
16
13
2
80
59
74
29
85
58
2
1
70
70
69
17
7
25
73
47
13
89

Артикул

Название

Примечание

Количество

1

819892C1

PLATE

- hitch

2шт.

2

819684C1

TUBE,2245 mm Length

FRAME - hitch

2шт.

3

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Not shown Hex, 5/8"-11 x 4 1/2", G5

3шт.

4

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

Not shown Hex, 5/8"-11 x 5", G5

1шт.

5

425-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

4шт.

6

819894C1

SUPPORT

- hitch tube inner

2шт.

7

819895C1

SUPPORT

- hitch tube outer

2шт.

8

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Not shown Hex, 5/8"-11 x 4 1/2", G5

4шт.

9

425-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

4шт.

10

819770C1

PIVOT

- hitch tube

2шт.

11

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Not shown Hex, 5/8"-11 x 4 1/2", G5

4шт.

12

425-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

4шт.

13

819724C1

PIN

- pivot

4шт.

14

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 7/64 inch, not shown

6шт.

15

32-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), , not shown 1/4" x 2 1/2"

8шт.

16

819874C2

TUBE

BRACE - hitch main frame front

4шт.

17

818118C2

TUBE,2021 mm Length

BRACE - center reinforcing

1шт.

18

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

- hex, 5/8 NC x 7 inch, not shown

4шт.

19

425-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

4шт.

20

819889C1

PIVOT

- outer drill frame

2шт.

21

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Not shown Hex, 5/8"-11 x 4 1/2", G5

4шт.

22

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch, not shown

4шт.

23

425-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

8шт.

24

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch, not shown

4шт.

25

841130C1

BAR

- frame connecting

4шт.

26

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch, not shown

4шт.

27

425-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

4шт.

28

819782C1

SPACER

- pivot

2шт.

29

819781C1

SPACER

- pivot

2шт.

30

819656C2

SUPPORT

- wing rear

2шт.

31

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Not shown Hex, 1/2"-13 x 1", G5, Full Thd

8шт.

32

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Not shown 1/2"-13, G5

8шт.

33

819772C2

PLATE

- basic hitch tie wing right

2шт.

34

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch, not shown

8шт.

35

819258C1

BOLT,Hex, 7/8" - 9 x 5", Drilled

- hex, 7/8 NC x 5 inch, not shown

4шт.

36

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Not shown 1/2"-13, G5

8шт.

37

425-1214

SLOTTED NUT,7/8"-9, G5

NUT - hex slotted, 7/8 inch NC, not shown

4шт.

38

495-11094

WASHER,7/8", SAE

- flat, 15/16 x 1-3/4 x 1/8 inch, not shown

12шт.

39

32-828

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), , not shown 1/8" x 1 3/4"

4шт.

40

819901C2

CHAIN (AG)

CHAIN - frame support

2шт.

41

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch, Not shown

1шт.

42

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

Not shown Hex, 5/8"-11 x 2", G8

2шт.

43

425-106

NUT,3/8"-16, Cl 5

Not shown 3/8"-16, G5

1шт.

44

492-11038

LOCK WASHER,3/8"

not shown 3/8"

1шт.

45

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64", Not shown

2шт.

47

819018C2

CHANNEL

- transport tube support

2шт.

48

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Not shown Hex, 5/8"-11 x 3 1/2", G5

1шт.

49

425-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

1шт.

50

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Not shown 5/8"

1шт.

51

819022C1

TUBE

- hitch transport support

1шт.

52

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

3шт.

53

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - hair, not shown, not shown

3шт.

54

819010C1

YOKE

- tube support

1шт.

55

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch (Not shown)

1шт.

56

425-1012

NUT,3/4"-10, G5

(Not shown) 3/4"-10, G5

1шт.

57

492-11075

LOCK WASHER,3/4"

not shown 3/4"

1шт.

58

817771C1

PIN

- hitch

1шт.

59

621006C1

PIN

- lock

1шт.

60

841153C1

ANGLE

- frame support chain

2шт.

61

812659C1

BOLT,5/8" - 11 x 4.4"

U-BOLT - support chain angle

2шт.

62

425-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

4шт.

63

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Not shown 5/8"

4шт.

64

841077C2

TUBE

SUPPORT - front tube (Right top and left lower)

2шт.

65

841078C2

SUPPORT

- front tube (Right lower and left top)

2шт.

66

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Not shown Hex, 5/8"-11 x 4 1/2", G5

8шт.

67

425-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

8шт.

68

819879C2

SUPPORT

- front extension

2шт.

69

819876C2

BAR

- diagonal brace tube outer

4шт.

70

841082C1

BAR

- diagonal brace tube inner

4шт.

71

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Not shown Hex, 5/8"-11 x 4 1/2", G5

12шт.

72

425-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

12шт.

73

819882C2

TUBE,2171.7 mm Length

- diagonal brace outer

2шт.

74

819883C1

TUBE,101.5" Length

- diagonal brace inner

2шт.

75

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Not shown Hex, 5/8"-11 x 4 1/2", G5

8шт.

76

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch, not shown

8шт.

77

425-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

16шт.

78

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch, not shown

12шт.

79

841142C1

BAR

- tube mounting spacer

10шт.

80

841137C1

SUPPORT

- rear extension

2шт.

81

841133C1

TUBE,2742 mm Length

- hitch main frame rear

2шт.

82

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch, not shown

6шт.

83

425-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

6шт.

84

841136C1

BAR

- basic hitch tie center drill (Left lower and right top)

2шт.

85

841140C1

BAR

- basic hitch tie center drill (Left top and right lower)

2шт.

86

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

Not shown Hex, 5/8"-11 x 5", G5

8шт.

87

425-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

8шт.

88

8411321

SOCKET

TUBE - hitch center connecting

1шт.

89

841134C1

BAR

- tube mounting

4шт.

90

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch, not shown

2шт.

91

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Not shown Hex, 5/8"-11 x 4 1/2", G5

6шт.

92

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

Not shown Hex, 5/8"-11 x 5", G5

2шт.

93

425-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

10шт.

46

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8, not shown

2шт.
