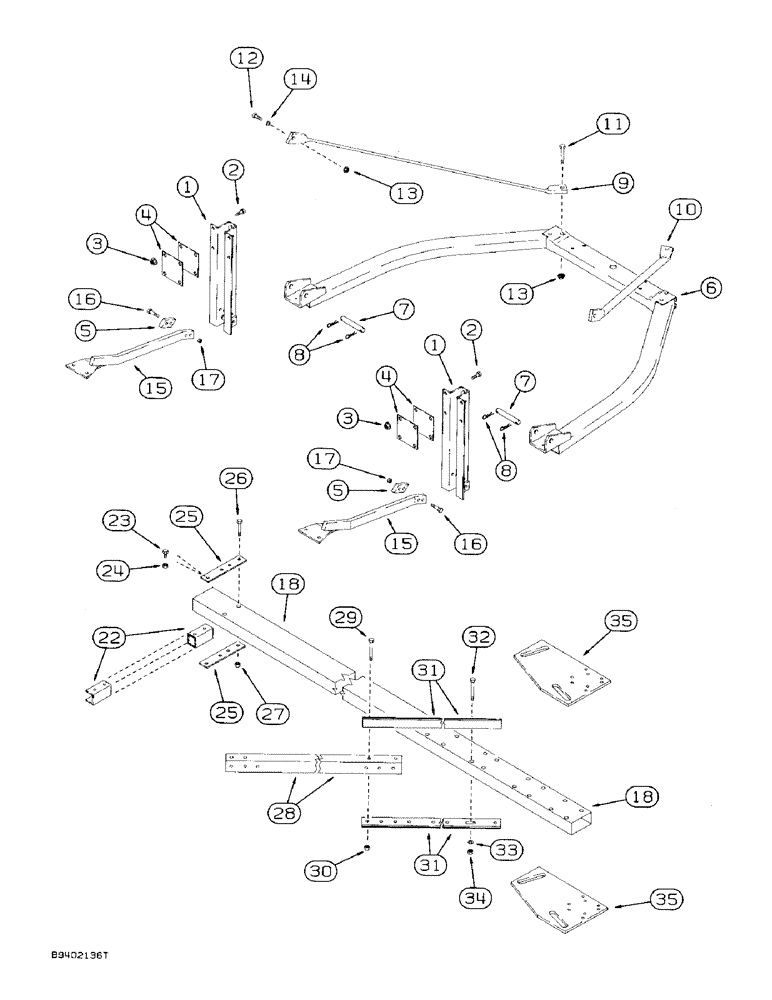

Запчасти Case IH 7100 (9-088) - HEAVY DUTY HITCH, FOUR DRILL, 817029C2, MACHINES BUILT 1980 THROUGH 1984 (09) - CHASSIS/ATTACHMENTS

1

817029C2

SUPPORT

- hitch

8шт.

2

326-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

32шт.

3

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, grade 8

32шт.

4

817357C1

BAR

- support backing

16шт.

5

818133C1

BAR

- support filler (Used only with brace assembly 818130C1)

8шт.

5

1279477C1

BAR

- support spacer, 3/4 inch thick

8шт.

6

818366C2

TRAILER HITCH

HITCH ASSEMBLY - basic (See Page 9-57)

4шт.

7

818251C1

PIN

- hitch pivot channel

8шт.

8

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

16шт.

9

818383C2

BRACE

SUPPORT - hitch left, 48-29/32 inch

4шт.

10

818384C2

BRACE

SUPPORT - hitch right, 48-29/32 inch

4шт.

11

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

8шт.

12

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

8шт.

13

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, grade 8

16шт.

14

495-81028

WASHER,21/32" x 1 1/2" x .240"

- flat, 21/32 x 1-3/4 x 7/32 inch

8шт.

15

1279475C1

BRACE

ASSEMBLY - hitch support (Replaces brace assembly 818130C1 by also ordering 1279477C1)

8шт.

16

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

16шт.

17

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

16шт.

18

819660C2

TUBE

- wing front (Order 1279424C1 tube assembly and 1279421C1 spacer)

2шт.

19

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch, not shown

2шт.

20

425-1012

NUT,3/4"-10, G5

(Not shown) 3/4"-10, G5

2шт.

21

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch, not shown

4шт.

22

819662C1

CHANNEL

- wing side

2шт.

23

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

25

819664C1

BAR

- side channel connecting

4шт.

26

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

27

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

28

819661C2

TUBE,101.5" Length

- wing diagonal

2шт.

29

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

30

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

31

819663C1

ANGLE

- diagonal tube tie (Order two angles 1279410C1)

4шт.

32

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

8шт.

33

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

34

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

35

817354C1

BAR

PLATE - basic hitch tie wing left

2шт.

36

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch, not shown

8шт.

37

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Not shown 1/2"-13, G5

8шт.

38

819258C1

BOLT,Hex, 7/8" - 9 x 5", Drilled

- hex, 7/8 NC x 5 inch, not shown

4шт.

39

425-1214

SLOTTED NUT,7/8"-9, G5

NUT - hex slotted, 7/8 inch NC, not shown

4шт.

40

495-11094

WASHER,7/8", SAE

- flat, 15/16 x 1-3/4 x 1/8 inch, not shown

12шт.

41

32-828

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), , not shown 1/8" x 1 3/4"

4шт.
