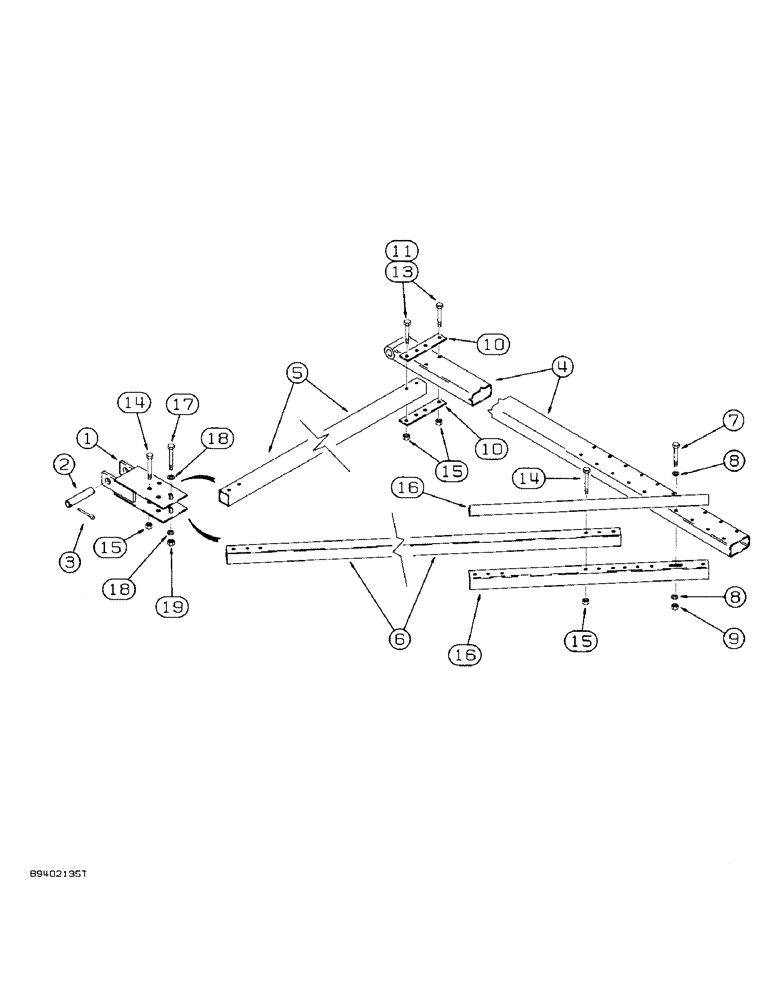

Запчасти Case IH 7100 (9-086) - WING HITCH, THREE AND FOUR DRILL, MACHINES BUILT 1985 AND AFTER, WITH HITCH P.I.N. 501 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

819656C2

SUPPORT

- wing rear

2шт.

2

819724C1

PIN

- pivot

2шт.

3

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

4

1279424C1

TUBE

ASSEMBLY - wing

2шт.

5

819662C1

CHANNEL

TUBE - wing side channel (Three drill sizes)

2шт.

5

1279426C1

TUBE,1887.73 mm Length

- wing side channel (Four drill sizes)

2шт.

6

819661C2

TUBE,101.5" Length

- wing diagonal

2шт.

7

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

2шт.

8

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

819664C1

BAR

PLATE - side channel connecting

4шт.

11

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch (Three drill sizes)

4шт.

13

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

(Four drill sizes) Hex, 1/2"-13 x 3 3/4", G5

4шт.

14

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

8шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Qty of 1 per bolt) 1/2"-13, G5

1шт.

16

1279410C1

ANGLE

- diagonal tube tie

4шт.

17

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

2шт.

18

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
