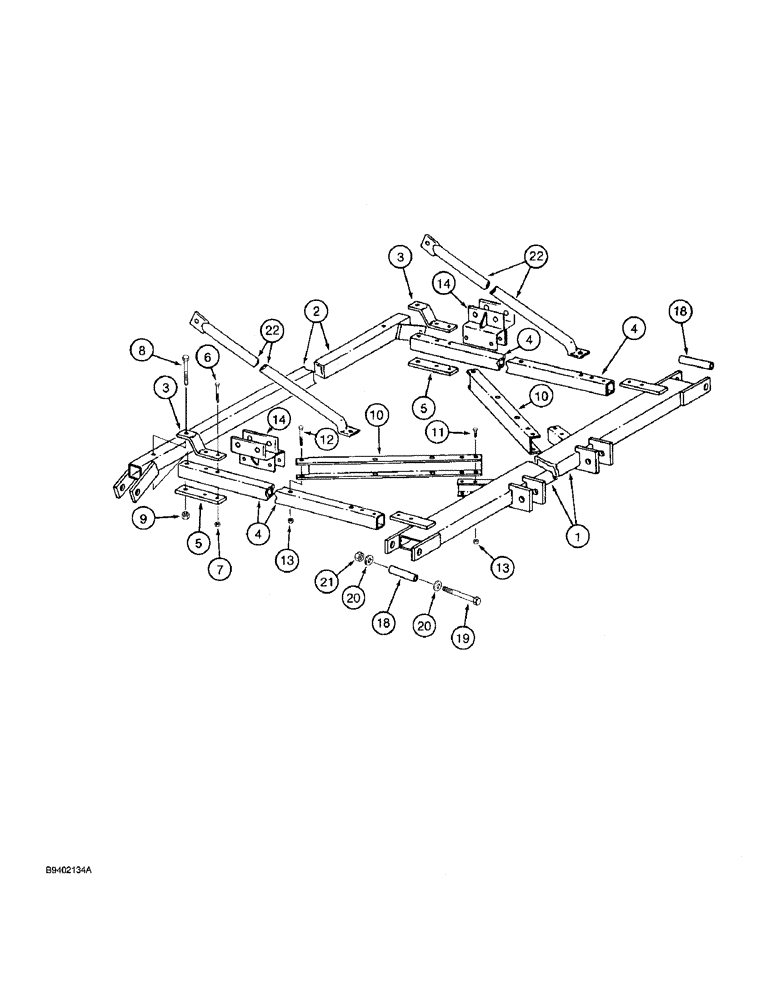

Запчасти Case IH 7100 (9-084) - CENTER HITCH & STABILIZER, THREE DRILL, MACHINES BUILT 1985 & AFTER, WITH HITCH P.I.N. 501 & AFTER) (09) - CHASSIS/ATTACHMENTS

1

819636C1

BEAM

- center front

1шт.

2

819783C1

BEAM

- center rear

1шт.

3

819792C1

SUPPORT

- side tube

2шт.

4

819637C4

TUBE,1872, 31.75 mm Length

- center side

2шт.

5

819793C1

BAR

- center side tube reinforcing lower

2шт.

6

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

8шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

8

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- hex, 5/8 NC x 6-1/2 inch

2шт.

9

425-1010

NUT,5/8"-11, G5

2шт.

10

819640C3

CHANNEL

- front corner

2шт.

11

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

12

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

10шт.

14

818300C1

SUPPORT

- basic hitch anchor

2шт.

15

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch, not shown

4шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Not shown 1/2"-13, G5

4шт.

17

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch, not shown

4шт.

18

1279421C1

SPACER

- hitch pivot

2шт.

19

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

2шт.

20

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

4шт.

21

425-1012

NUT,3/4"-10, G5

2шт.

22

1279789C1

BRACE

- hitch

2шт.
