Запчасти Case IH 7100 (9-082) - FRONT HITCH, THREE DRILL (09) - CHASSIS/ATTACHMENTS

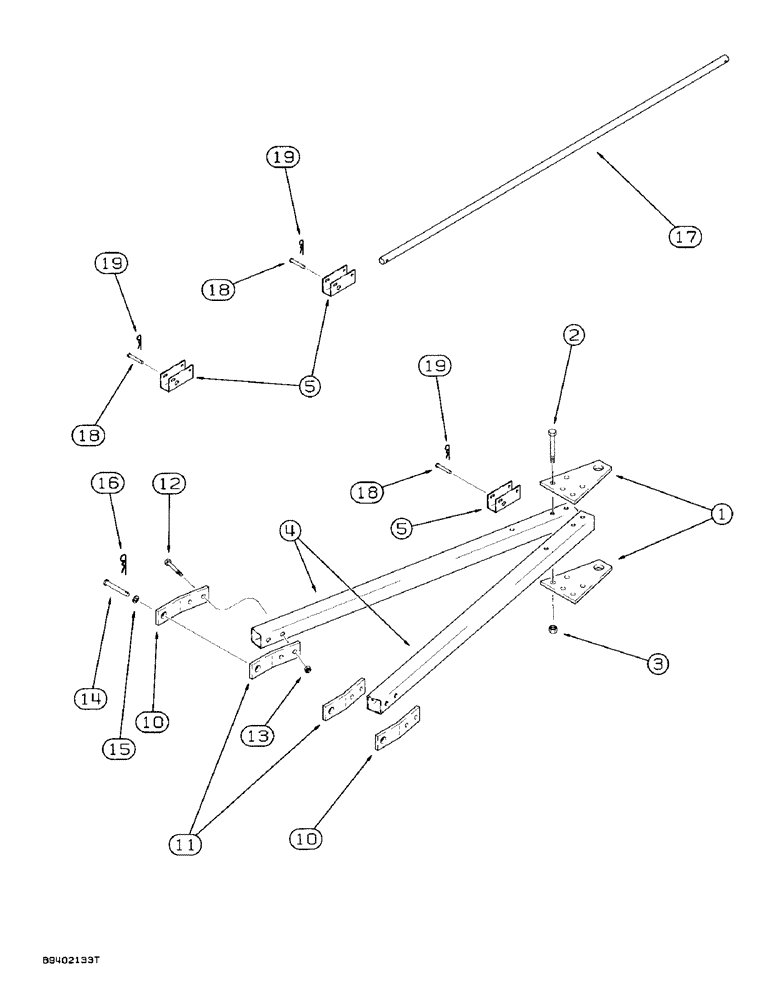

Схема запчастей Case IH 7100 - (9-082) - FRONT HITCH, THREE DRILL (09) - CHASSIS/ATTACHMENTS
19
18
5
18
18
19
4
10
15
5
16
1
13
12
10
17
2
19
14
3
11

Артикул

Название

Примечание

Количество

1

819001C1

PLATE

- hitch front

2шт.

2

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

3

425-1010

NUT,5/8"-11, G5

4шт.

4

819013C2

TUBE,56.55" Length

- hitch front

2шт.

5

819018C2

CHANNEL

- transport tube support front

3шт.

6

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, Not shown

1шт.

7

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch, not shown

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Not shown 1/2"

1шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Not shown 1/2"-13, G5

1шт.

10

819644C1

SUPPORT

- front hitch tube outer

2шт.

11

819643C1

SUPPORT

- front hitch tube inner

2шт.

12

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

13

425-1010

NUT,5/8"-11, G5

4шт.

14

636167R1

HEADED PIN,1" x 5 5/8"

PIN - headed, 1 x 5-5/8 inch

2шт.

15

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

2шт.

16

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

17

819668C1

TUBE

- hitch transport

1шт.

18

U5356

HEADED PIN,9.53mm OD x 57.15mm L

PIN - headed, 3/8 x 2-1/4 inch

3шт.

19

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - hair

3шт.

Выбрано товаров: 19
