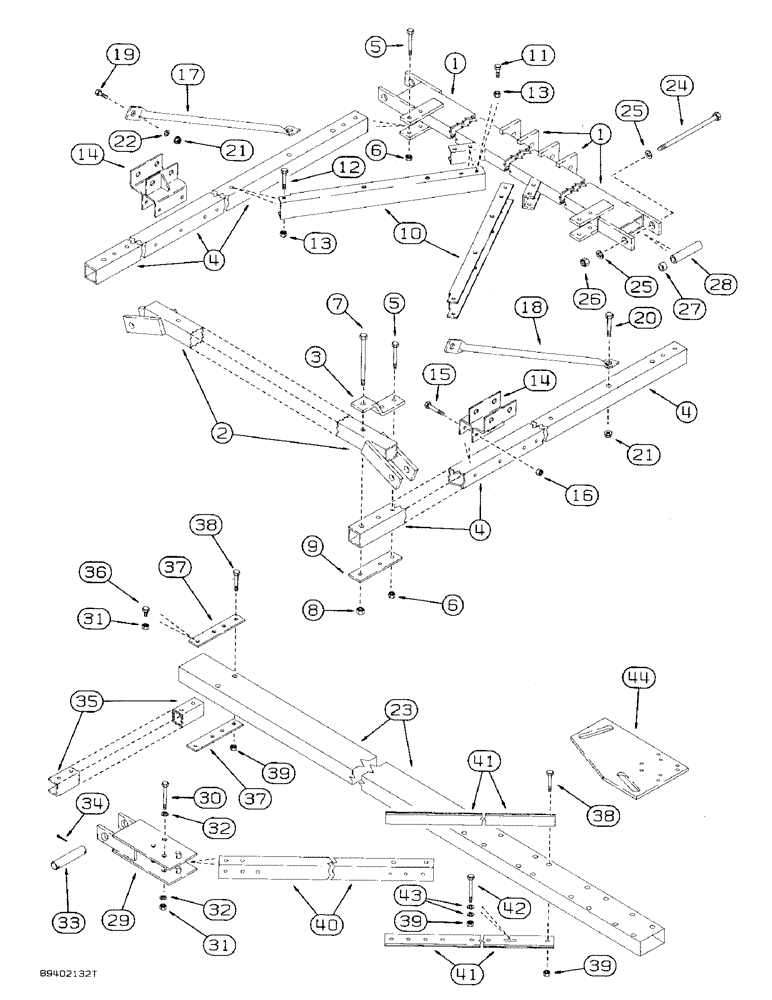

Запчасти Case IH 7100 (9-080) - CENTER HITCH AND STABILIZER, THREE DRILL, MACHINES BUILT 1980 THROUGH 1984 (09) - CHASSIS/ATTACHMENTS

1

819636C1

BEAM

- center front

1шт.

2

819783C1

BEAM

- center rear

1шт.

3

819792C1

SUPPORT

- side tube

2шт.

4

819637C4

TUBE,1872, 31.75 mm Length

- center side

2шт.

5

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

8шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

7

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- hex, 5/8 NC x 6-1/2 inch

2шт.

8

425-1010

NUT,5/8"-11, G5

2шт.

9

819793C1

BAR

- center side tube reinforcing lower

2шт.

10

819640C3

CHANNEL

- front corner

2шт.

11

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

12

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

10шт.

14

818300C1

SUPPORT

ASSEMBLY - basic hitch anchor

2шт.

15

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

17

816371C3

BRACE

- hitch left, 45-1/2 inch (Order (2) braces 1279789C1)

1шт.

17

1279789C1

BRACE

- hitch left and right, 47 inch

2шт.

18

816372C3

BRACE

- hitch right, 45-1/2 inch (Order (2) braces 1279789C1)

1шт.

19

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

20

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

21

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

4шт.

22

495-81028

WASHER,21/32" x 1 1/2" x .240"

- flat, 21/32 x 1-3/4 x 7/32 inch

2шт.

23

819660C2

TUBE

- wing front (Order 1279424C1 tube and 1279421C1 spacer)

2шт.

24

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

2шт.

25

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

4шт.

26

425-1012

NUT,3/4"-10, G5

2шт.

27

819782C1

SPACER

- pivot

2шт.

28

819781C1

SPACER

- pivot

2шт.

29

819656C2

SUPPORT

- wing, rear

2шт.

30

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

8шт.

31

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

16шт.

32

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

33

819724C1

PIN

- wing rear pivot

2шт.

34

32-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

35

819662C1

CHANNEL

- wing side

2шт.

36

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

37

819664C1

BAR

- side channel connecting

4шт.

38

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

39

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

40

819661C2

TUBE,101.5" Length

- wing diagonal

2шт.

41

819663C1

ANGLE

- diagonal tube tie (Order two angles 1279410C1)

4шт.

42

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

8шт.

43

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

44

819665C2

BAR

- basic hitch tie

4шт.

45

819258C1

BOLT,Hex, 7/8" - 9 x 5", Drilled

- hex, 7/8 NC x 5 inch, not shown

2шт.

46

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Not shown 1/2"-13, G5

8шт.

47

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch, not shown

8шт.

48

425-1214

SLOTTED NUT,7/8"-9, G5

NUT - hex slotted, 7/8 inch NC, not shown

2шт.

49

32-828

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), , not shown 1/8" x 1 3/4"

2шт.

50

495-11094

WASHER,7/8", SAE

- flat, 15/16 x 1-3/4 x 1/8 inch, not shown

6шт.
